14-18 Ram 2500 (Coil) Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 217706P

REAR SHOCK ABSORBERS
14-UP RAM 2500 2" PRFRM REAR 2.
5 PB PAIR
14-UP RAM 2500 2" PERFORMANCE REAR 2.
5 VS PB PAIR
2014-UP RAM 2500 2" LIFT PERFORMANCE REAR 2.
5 VS PIGGYBACK SHOCK PAIR
ICON’s 2.
5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
Featuring one-piece impact extruded aluminum cylinders, these 2.
5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders.
Like all ICON'S Shock Absorbers, 2.
5 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
100% Rebuildable
100% Revalveable
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
Double-sealed Schrader caps reduce risk of damage
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

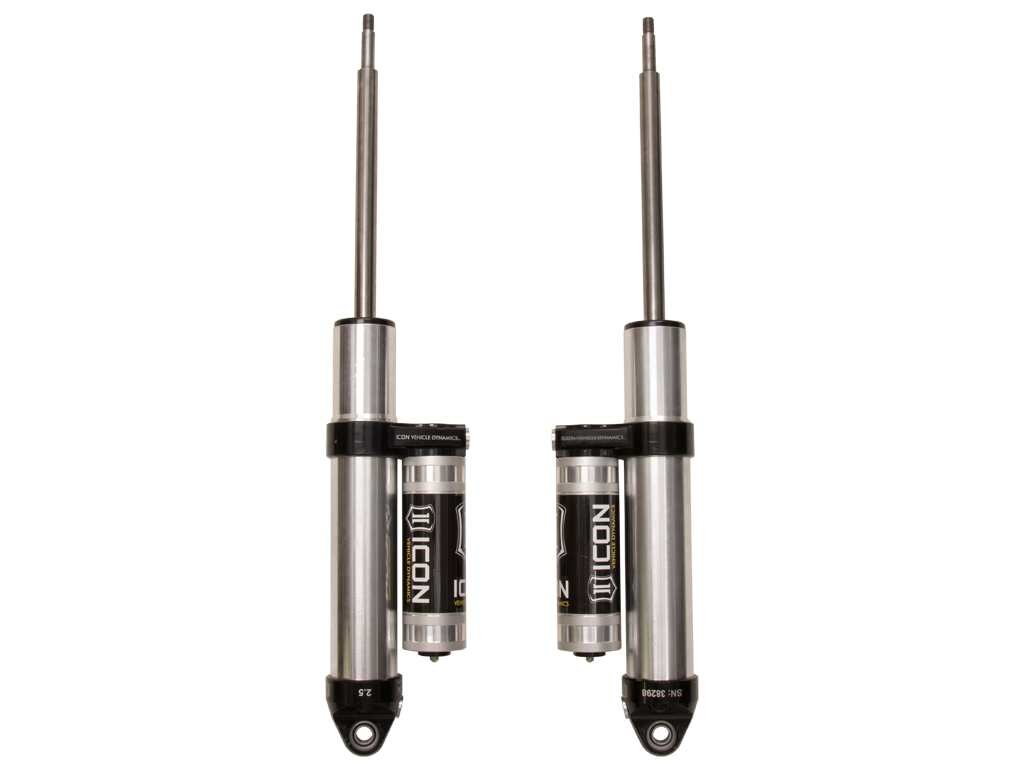

ICON 2014-Up Ram 2500, 2” Lift, Rear, 2.
5 VS Performance Piggyback Shocks, Pair, 217706P
ICON 2014-Up Ram 2500, 2” Lift, Rear, 2.
5 VS Performance Piggyback Shocks, Pair.

Detailed Fitment Results
Year Make Model 2014 Ram 2500 2015 Ram 2500 2016 Ram 2500 2017 Ram 2500 2018 Ram 2500
