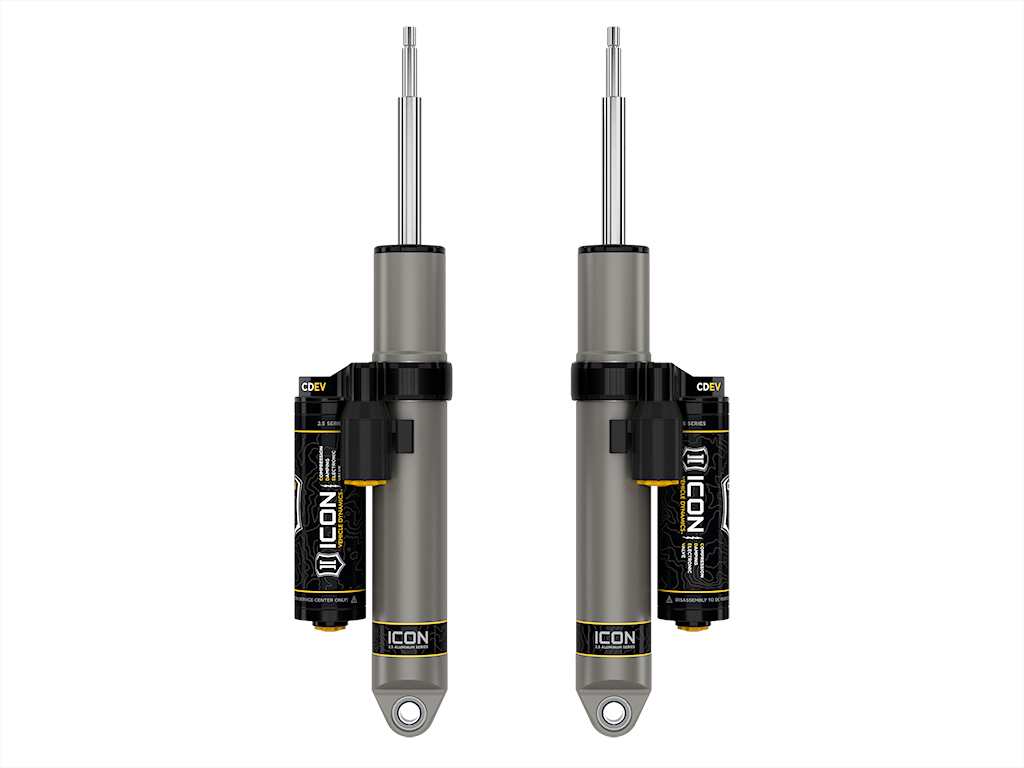

14-22 Ram 2500 (4WD - Coil) Suspension Shock Absorber Set - Rear - ICON Vehicle Dynamics - 217706EP

CDEV SHOCK ABSORBERS
14-UP RAM 2500 PERF REAR 2.
5 CDEV PAIR
TECH NOTE: Only compatible with 14-UP Ram 2500 4WD equipped with ICON 2" Lift Rear Performance Spring Kit
TECH NOTE: Not compatible with 14-UP Ram 2500 4WD equipped with OE Automatic-Leveling Rear Air-Suspension system
TECH NOTE: Also requires installation of IIC part number 213500 and CDEV front shock part number 217803EP
14-UP RAM 2500 2" PERFORMANCE REAR 2.
5 VS PB CDEV PAIR
2014-UP RAM 2500 2" LIFT PERFORMANCE REAR COILS 2.
5 VS PIGGYBACK CDEV SHOCK ABSORBER PAIR
ICON Vehicle Specific (V.
S.
) 2.
5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street.
These shocks are configured specifically for each application in both length and damping tune.
For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force.
This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
Like all ICON'S Shock Absorbers, V.
S.
2.
5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable.
The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed.
This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain.
CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle.
Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Length and damping tune optimized to be paired with ICON 2" Lift Rear Performance Spring Kit
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
Fully rebuildable and re-tunable
ICON 2014-Up Ram 2500 Rear 2.
5 VS Shocks w/CDEV, 2” Lift, Non Air Ride, Pair, 217706EP
ICON 2014-Up Ram 2500 Rear 2.
5 VS Shocks w/CDEV, 2” Lift, Non Air Ride, Pair.

Detailed Fitment Results
Year Make Model Submodel 2014 Ram 2500 Big Horn 2014 Ram 2500 Laramie 2014 Ram 2500 Power Wagon 2014 Ram 2500 Tradesman 2014 Ram 2500 Laramie Longhorn 2014 Ram 2500 Laramie Limited 2014 Ram 2500 R/T 2014 Ram 2500 SLT 2014 Ram 2500 Outdoorsman 2014 Ram 2500 ST 2014 Ram 2500 Lone Star 2015 Ram 2500 Big Horn 2015 Ram 2500 Laramie 2015 Ram 2500 Power Wagon 2015 Ram 2500 Tradesman 2015 Ram 2500 Laramie Longhorn 2015 Ram 2500 Laramie Limited 2015 Ram 2500 R/T 2015 Ram 2500 SLT 2015 Ram 2500 Outdoorsman 2015 Ram 2500 ST 2015 Ram 2500 Lone Star 2015 Ram 2500 Hemi Sport 2016 Ram 2500 Big Horn 2016 Ram 2500 Laramie 2016 Ram 2500 Power Wagon 2016 Ram 2500 Tradesman 2016 Ram 2500 Laramie Longhorn 2016 Ram 2500 Laramie Limited 2016 Ram 2500 R/T 2016 Ram 2500 SLT 2016 Ram 2500 Outdoorsman 2016 Ram 2500 ST 2016 Ram 2500 Hemi Sport 2016 Ram 2500 Limited 2017 Ram 2500 Big Horn 2017 Ram 2500 Laramie 2017 Ram 2500 Power Wagon 2017 Ram 2500 Tradesman 2017 Ram 2500 Laramie Longhorn 2017 Ram 2500 Laramie Limited 2017 Ram 2500 R/T 2017 Ram 2500 SLT 2017 Ram 2500 Outdoorsman 2017 Ram 2500 ST 2017 Ram 2500 Limited 2017 Ram 2500 SLT HD 2017 Ram 2500 Sport 2017 Ram 2500 Laramie HD 2018 Ram 2500 Big Horn 2018 Ram 2500 Laramie 2018 Ram 2500 Power Wagon 2018 Ram 2500 Tradesman 2018 Ram 2500 Laramie Longhorn 2018 Ram 2500 Laramie Limited 2018 Ram 2500 R/T 2018 Ram 2500 SLT 2018 Ram 2500 Outdoorsman 2018 Ram 2500 ST 2018 Ram 2500 Limited 2018 Ram 2500 SLT HD 2018 Ram 2500 Sport 2019 Ram 2500 Big Horn 2019 Ram 2500 Laramie 2019 Ram 2500 Power Wagon 2019 Ram 2500 Tradesman 2019 Ram 2500 Laramie Longhorn 2019 Ram 2500 Laramie Limited 2019 Ram 2500 R/T 2019 Ram 2500 SLT 2019 Ram 2500 Lone Star 2019 Ram 2500 Limited 2019 Ram 2500 SLT HD 2019 Ram 2500 Sport 2020 Ram 2500 Big Horn 2020 Ram 2500 Laramie 2020 Ram 2500 Power Wagon 2020 Ram 2500 Tradesman 2020 Ram 2500 Laramie Longhorn 2020 Ram 2500 Laramie Limited 2020 Ram 2500 Lone Star 2020 Ram 2500 Limited 2020 Ram 2500 SLT HD 2021 Ram 2500 Big Horn 2021 Ram 2500 Laramie 2021 Ram 2500 Power Wagon 2021 Ram 2500 Tradesman 2021 Ram 2500 Laramie Longhorn 2021 Ram 2500 Lone Star 2021 Ram 2500 Limited 2021 Ram 2500 SLT HD 2022 Ram 2500 Big Horn 2022 Ram 2500 Laramie 2022 Ram 2500 Power Wagon 2022 Ram 2500 Tradesman 2022 Ram 2500 Lone Star 2022 Ram 2500 Limited 2022 Ram 2500 SLT HD
