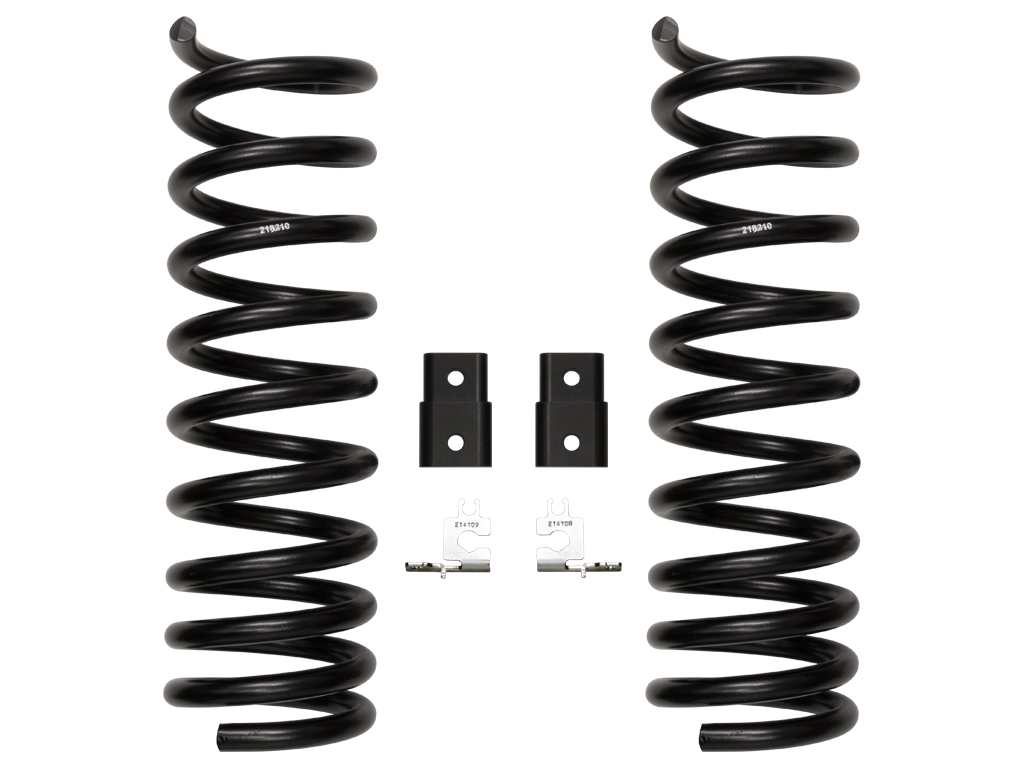

Ram (4WD) Coil Spring Set - Front - ICON Vehicle Dynamics - 214200

FRONT SPRING KIT
214200
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: 8.
5" wide wheel with 5.
75" backspace
Recommended Aftermarket Tires: 35" x 12.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Springs rates optimized for use with trucks with diesel engines
14-UP RAM 2500 2.
5" FRONT DUAL RATE SPRING KIT
Level out your truck and enjoy both incredible ride quality and rugged performance.
These coils offer an initial soft ride zone for the street with an aggressive second rate to help prevent bottoming out on the trail.
The ICON Vehicle Dynamics 2.
5" Dual Rate Spring System for 2014-UP Ram 2500 / 2013-Up 3500 4WD levels out your truck and offers you both incredible ride quality and performance.
This 2.
5" dual rate spring system offers an initial soft ride zone with an aggressive second rate to help prevent bottoming out and are optimized for use on trucks equipped with diesel engines.
These ICON springs have a dual stage powder coat process to help prevent corrosion and are shot peened and pre-set to prevent sagging.
Front extended length shocks are required for complete installation, and we offer 2.
0 Aluminum Series smooth body and Remote Reservoir or our 2.
5 Series Reservoir shock with or without CDC (Compression Damping Contol) Valve.
All ICON shocks are engineered to be the correct length offering maximum droop and compression travel, then tuned to work hand in hand with these springs for the best available on and offroad performance.
ICON engineered dual rate coil springs
Increased wheel travel and ride quality over stock
Less body roll than stock
Front extended length shocks are required for complete installation
No drive shaft modifications needed
No change in towing capacity
ICON 2014-Up Ram 2500, 2.
5” Lift, Front, Dual Rate Coil Spring Kit, 214200
ICON 2014-Up Ram 2500, 2.
5” Lift, Front, Dual Rate Coil Spring Kit
ICON 14-UP RAM 2500 2.
5" FRONT DUAL RATE SPRING KIT.

Detailed Fitment Results
Year Make Model 2013 Ram 3500 2014 Ram 2500 2014 Ram 3500 2015 Ram 2500 2015 Ram 3500 2016 Ram 2500 2016 Ram 3500 2017 Ram 2500 2017 Ram 3500 2018 Ram 2500 2018 Ram 3500 2019 Ram 2500 2019 Ram 3500 2020 Ram 2500 2020 Ram 3500 2021 Ram 2500 2021 Ram 3500 2022 Ram 2500 2022 Ram 3500
