19-23 Ram 1500 (Coil) Coilover Spring and Shock Assembly - ICON Vehicle Dynamics - 211015C

COILOVER KIT
211015C
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (fender trimming and modifications will be required.
)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #100: Spring not rated for EcoDiesel equipped trucks
APPLICATION NOTE #105: Not for vehicles with rear factory air ride
APPLICATION NOTE #131: Will not fit 2019-UP Ram 1500 Classic models
TECH NOTE: 2019-2023 Ram 1500 Rebel will have lift height range of 1.
25-2.
25" over stock
TECH NOTE: Will not fit Ram 1500 TRX
19-23 RAM 1500 2-3" 2.
5 VS CDCV COILOVER KIT
ICON 2.

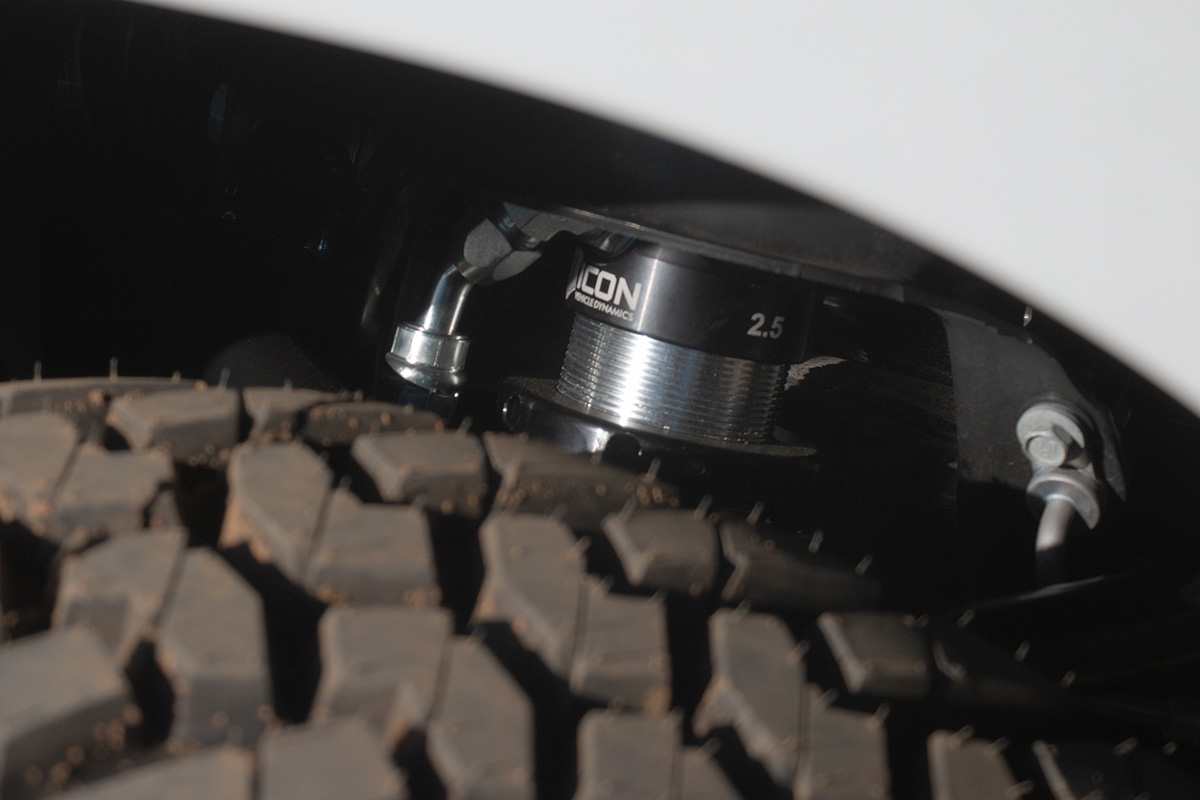

5 Series coilovers are an incredible upgrade for the front of 2019-2023 Ram 1500 trucks.
ICON’s Vehicle-specific valving provides a sport tuned feel while 2-3” of lift allows the use of larger, more aggressive wheel and tire combos.
ICON Vehicle Dynamics V.
S.
2.
5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks.
ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations.
The larger 2.
5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain.
These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions.
The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard.
When paired with ICON 2.
0 Aluminum Series or 2.
5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.
Increased wheel travel and ride quality over stock
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8" diameter shaft
High strength alloy CNC machined lower mounting clevis
FK rod end bearings for extended longevity and minimal deflection
100% Bolt-on - no drilling, cutting or welding necessary for installation
Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
Vehicle specific tuned for superior shock damping and control
Adjustable from 2-3" of front lift height over stock
Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
ICON CDCV equipped for external tuneability of your shocks
ICON 2019-2023 Ram 1500, 2-3” Lift, Front, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir w/ CDCV, 211015C
ICON 2019-2023 Ram 1500, 2-3” Lift, Front, V.
S.
2.
5 Series Coilover Kit, Remote Reservoir w/ CDCV
ICON 19-23 RAM 1500 2-3" 2.
5 VS CDCV COILOVER KIT.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2019 Ram 1500 SLT 2019 Ram 1500 HFE 2019 Ram 1500 ST 2019 Ram 1500 Big Horn 2019 Ram 1500 Laramie 2019 Ram 1500 Limited 2019 Ram 1500 Lone Star 2019 Ram 1500 Rebel 2019 Ram 1500 Sport 2019 Ram 1500 Tradesman 2019 Ram 1500 Laramie Longhorn 2019 Ram 1500 SXT 2020 Ram 1500 SLT 2020 Ram 1500 HFE 2020 Ram 1500 ST 2020 Ram 1500 Laramie Sport 2020 Ram 1500 Hemi Sport 2020 Ram 1500 Tradesman ; ; 2020 Ram 1500 Sport 2020 Ram 1500 Rebel ; ; 2020 Ram 1500 Lone Star ; ; 2020 Ram 1500 Limited ; ; 2020 Ram 1500 Laramie ; ; 2020 Ram 1500 Big Horn ; ; 2020 Ram 1500 Special Service 2020 Ram 1500 Laramie Longhorn ; ; 2021 Ram 1500 SLT 2021 Ram 1500 HFE 2021 Ram 1500 ST 2021 Ram 1500 Laramie Sport 2021 Ram 1500 Hemi Sport 2021 Ram 1500 Tradesman ; ; 2021 Ram 1500 Sport 2021 Ram 1500 Rebel ; ; 2021 Ram 1500 Lone Star ; ; 2021 Ram 1500 Limited ; ; 2021 Ram 1500 Laramie ; ; 2021 Ram 1500 Big Horn ; ; 2021 Ram 1500 Special Service 2021 Ram 1500 Laramie Longhorn ; ; 2021 Ram 1500 Limited Longhorn ; ; 2021 Ram 1500 Longhorn ; ; 2022 Ram 1500 SLT 2022 Ram 1500 Laramie Sport 2022 Ram 1500 Hemi Sport 2022 Ram 1500 Tradesman ; ; 2022 Ram 1500 Sport 2022 Ram 1500 Rebel ; ; 2022 Ram 1500 Lone Star ; ; 2022 Ram 1500 Limited ; ; 2022 Ram 1500 Laramie ; ; 2022 Ram 1500 Big Horn ; ; 2022 Ram 1500 Limited Longhorn ; ; 2022 Ram 1500 HFE 2023 Ram 1500 SLT 2023 Ram 1500 Laramie Sport 2023 Ram 1500 Hemi Sport 2023 Ram 1500 Tradesman ; ; 2023 Ram 1500 Sport 2023 Ram 1500 Rebel ; ; 2023 Ram 1500 Lone Star ; ; 2023 Ram 1500 Limited ; ; 2023 Ram 1500 Laramie ; ; 2023 Ram 1500 Big Horn ; ; 2023 Ram 1500 Limited Longhorn ; ; 2023 Ram 1500 HFE 2023 Ram 1500 Big Horn OffRoad
