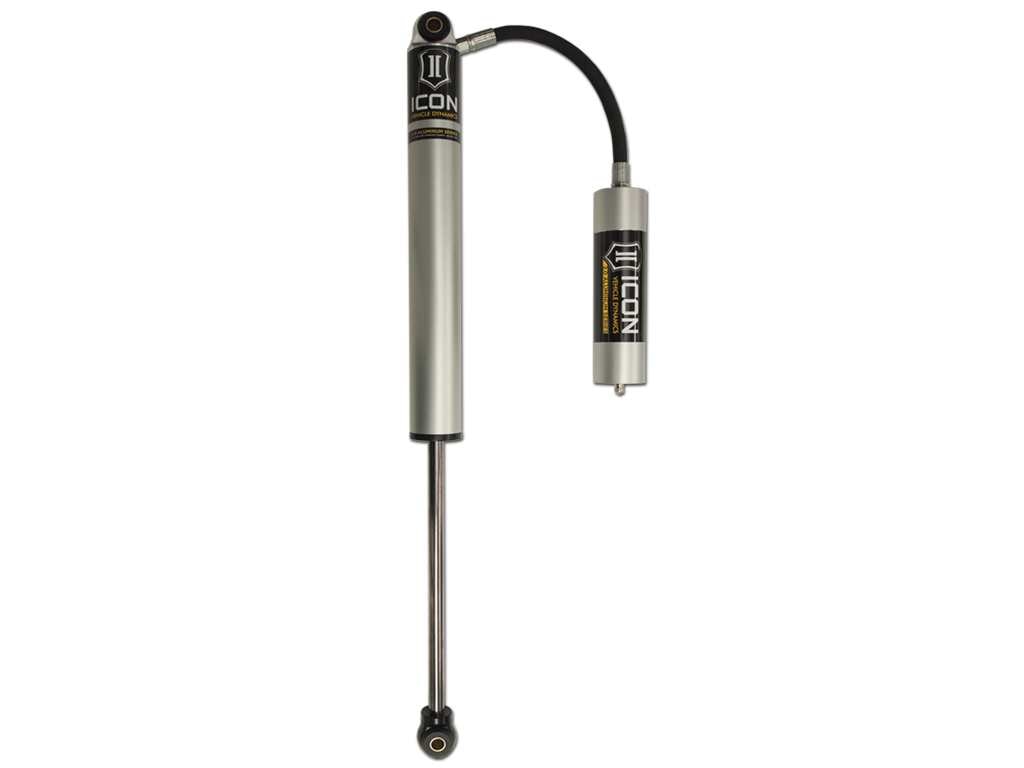

Suspension Shock Absorber - ICON Vehicle Dynamics - 206516R

SHOCK ABSORBER
206516R
TECH NOTE: Not application specific and may require custom fabrication to mount to vehicle.
EXTENDED LENGTH: 38.
05"
COMPRESSED LENGTH: 21.
10"
SHAFT TRAVEL: 16.
95"
MOUNTING DIMENSIONS: Upper/lower eyelets for 1.
5" width between tabs and.
5" diameter bolt
UNIVERSAL 17" TRAVEL 2.
0 RR HDRV
ICON 2.
0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades.
The 2.
0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved performance.
ICON 2.
0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades.
The 2.
0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.
Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
Like all ICON shock absorbers, 2.
0 Aluminum Series shocks are 100% rebuildable and 100% revalveable.
For those using their vehicle in extreme off road situations, consider the ICON 2.
5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with remote reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
Application-specific reservoir mounting hardware
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
100% rebuildable
100% revalveable
ICON Universal 2.
0 Aluminum Series Rear Shock, Remote Reservoir, HD Valving, 17” Travel, 206516R
ICON Universal 2.
0 Aluminum Series Rear Shock, Remote Reservoir, HD Valving, 17” Travel
ICON UNIVERSAL 17" TRAVEL 2.
0 RR HDRV.
