10-14 Ford F-150 SVT Raptor Leaf Spring Kit - Rear - ICON Vehicle Dynamics - 198501

RAPTOR RXT SPRINGS
198501
TECH NOTE: Not compatible with most aftermarket leaf spring shackles.
OE shackles are recommended.
TECH NOTE: These leaf springs are sold individually.
A quantity of 2 are required per vehicle.
TECH NOTE: Hardware kit part # 95220H also required for installation (sold separately)

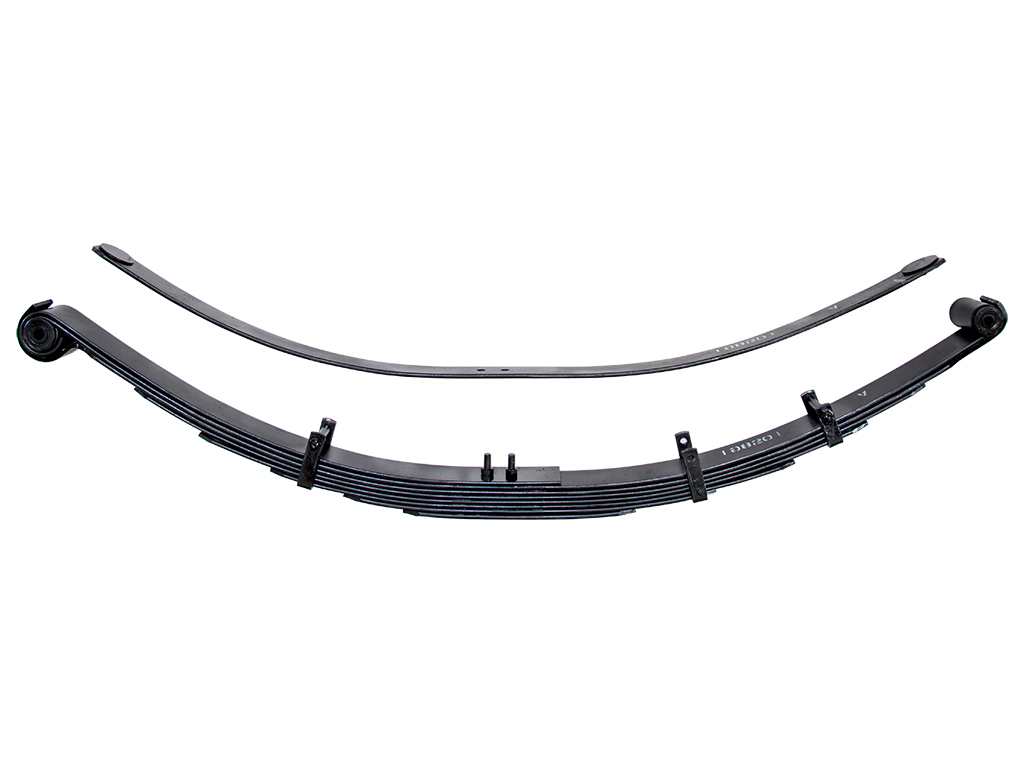

10-14 RAPTOR MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
This ICON user-adjustable multi-rate leaf pack features tip inserts and leaf separators to reduce friction and increase ride comfort, while a military wrapped front eyelet improves durability and strength.
The ICON Ford Raptor RXT multi-rate leaf pack offers a major performance gain for almost every Raptor setup imaginable.
Features like 3 user-configurable rate options, tip inserts, and leaf separators add to ride comfort while a triple military wrapped front and rear half wrapped eyelet increases durability and strength of the leaf spring.
A rebound leaf was added to reduce the axle wrap of the Raptor, which addresses another issue that has been found through ICON's extensive testing.
To increase the ride quality of the truck and gain additional droop travel when the full ICON RXT rear system is installed, the spring rate was reduced slightly from the OE components.
While most Raptor owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a chase rack, spare tires and parts, or other additions.
Understanding this, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack, yielding an additional 10% or 20% spring rate that will h andle heavier vehicles.
Rate Configuration Info:
Standard
+0.
75" Lift over stock
Rate Option #1
10% Rate over standard configuration
+1.
25" Lift over stock
+0.
75" Lift over stock w/ 300lb constant load
Rate Option #2
20% Rate over standard Configuration
+1.
75" lift over stock
+0.
75" lift over stock w/ 600lb constant load
3 User-adjustable spring rates for unique setups or added weight
Triple military wrap front eyelet and rear half wrap for increased durability and safety
Rebound leaf reduces severe axle wrap
Tip inserts and leaf separators to reduce friction and improve ride comfort
OE style bonded rubber bushings that are maintenance free and do not squeak
Bumpstop extensions included for use when no aftermarket bumpstop kit is installed
New Ford OE front spring eye bolts included for easy removal and re-installation of springs
ICON 2010-14 Ford Raptor, Multi Rate RTX Leaf Pack Spring w/Add In Leaf, 198501
ICON 2010-2014 Ford Raptor, Multi Rate RTX Leaf Pack Spring w/Add In Leaf
ICON 10-14 RAPTOR MULTI RATE RXT LEAF PACK W/ ADD IN LEAF.

Detailed Fitment Results
Year Make Model Submodel 2010 Ford F-150 SVT Raptor 2011 Ford F-150 SVT Raptor 2012 Ford F-150 SVT Raptor 2013 Ford F-150 SVT Raptor 2014 Ford F-150 SVT Raptor
