Ford Leaf Spring - Rear - ICON Vehicle Dynamics - 168507

LEAF EXPANSION PACK
168507
TECH NOTE: Depending on year and block configuration installer must use the appropriate U-bolts (not included in kit)
TECH NOTE: Provides 2" of rear lift when installed with OE rear blocks
TECH NOTE: When installing in conjunction with 2.
5-3" front lift ICON recommends replacing OE rear blocks with 1" rear blocks (ICON part # 191201) and 12" U-bolts (ICON part #s 37004 or 67004, depending on year).
2" bump stop spacers will also be required (ICON part # 61002).
Most F-250s will net.
5" of rear lift over stock while most F-350s will net rear ride height.
5" lower than stock.
TECH NOTE: Not recommended for Ford F-350 with dual real wheels
TECH NOTE: Sold as single leaf spring expansion pack (qty of 2 required per vehicle)

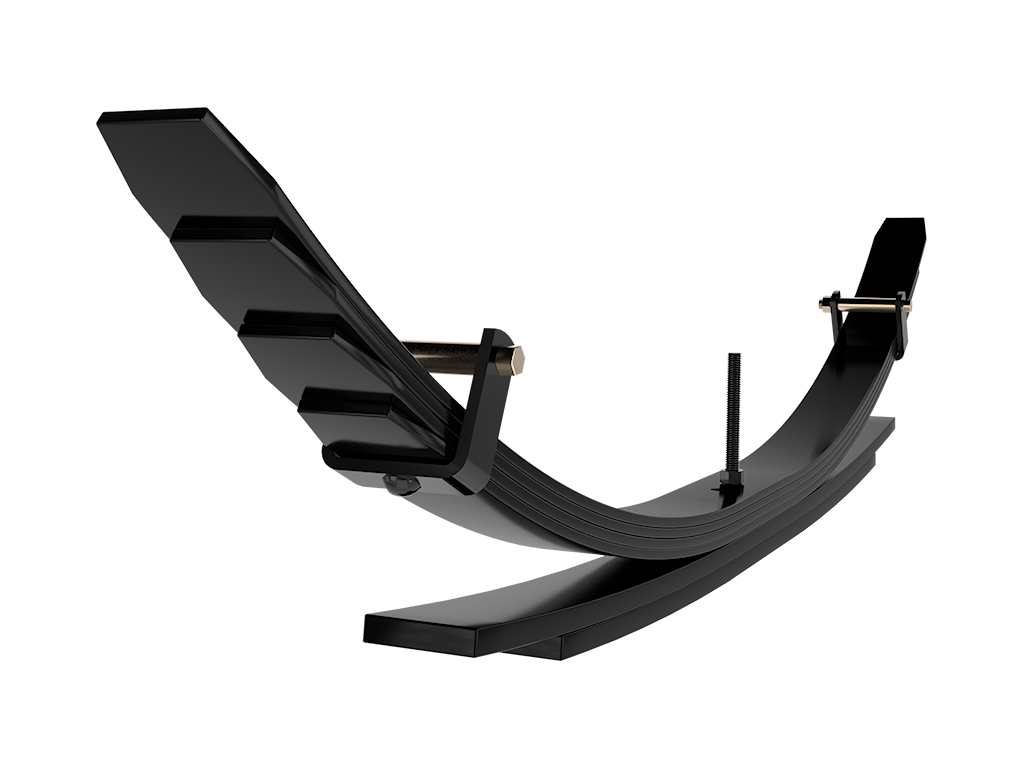

08-24 F250/F350 LEAF SPRING EXPANSION PACK
The 2" Leaf Expansion Pack provides increased suspension lift and better ride quality for Ford F-250/F-350 trucks.
The expansion pack optimizes ride quality by softening the rear spring rate and reduces axle wrap compared to lift blocks.
ICON's 2" Rear Leaf Expansion Pack provides increased suspension lift and better ride quality for lifted 08-24 F-250/F-350 Super Duty pickup trucks.
The Expansion Pack is designed to replace and improve the center leaves of the stock leaf spring pack while retaining the factory main leaf.
This makes the Expansion Pack both cost-effective and an easier installation as it doesn't require complete removal of the leaf spring main leaf from the spring hanger and shackle.
The additional leaves included in the pack are designed to optimize ride quality and reduce axle wrap compared to lift blocks.
The design also shifts the overload transition point to improve small bump compliance.
Provides 2” of rear lift when installed with OE rear blocks
Reduces axle wrap compared to lift blocks
Offers improved ride quality compared to OE leaf springs
Moves overload transition point further away for better small bump compliance
More cost effective than a full leaf pack
Retains factory main leaf for easier installation than a full leaf pack
ICON Vehicle Dynamics, 2" Lift, Rear, Leaf Spring Expansion Pack, Compatible with 08-24 F-250/F-350 Super Duty, 168507
ICON 2008-2024 Ford F-250/F-350 Super Duty, Rear Leaf Spring Expansion Pack
ICON 08-24 F250/F350 LEAF SPRING EXPANSION PACK.

Detailed Fitment Results
Year Make Model Qualifiers Fitment Notes 2008 Ford F-250 Super Duty 2008 Ford F-350 Super Duty ; Lowers Rear .5 in; 2009 Ford F-250 Super Duty 2009 Ford F-350 Super Duty ; Lowers Rear .5 in; 2010 Ford F-250 Super Duty 2010 Ford F-350 Super Duty ; Lowers Rear .5 in; 2011 Ford F-250 Super Duty 2011 Ford F-350 Super Duty ; Lowers Rear .5 in; 2012 Ford F-250 Super Duty 2012 Ford F-350 Super Duty ; Lowers Rear .5 in; 2013 Ford F-250 Super Duty 2013 Ford F-350 Super Duty ; Lowers Rear .5 in; 2014 Ford F-250 Super Duty 2014 Ford F-350 Super Duty ; Lowers Rear .5 in; 2015 Ford F-250 Super Duty 2015 Ford F-350 Super Duty ; Lowers Rear .5 in; 2016 Ford F-250 Super Duty 2016 Ford F-350 Super Duty ; Lowers Rear .5 in; 2017 Ford F-250 Super Duty 2017 Ford F-350 Super Duty ; Lowers Rear .5 in; 2018 Ford F-250 Super Duty 2018 Ford F-350 Super Duty ; Lowers Rear .5 in; 2019 Ford F-250 Super Duty 2019 Ford F-350 Super Duty ; Lowers Rear .5 in; 2020 Ford F-250 Super Duty 2020 Ford F-350 Super Duty ; Lowers Rear .5 in; 2021 Ford F-250 Super Duty 2021 Ford F-350 Super Duty ; Lowers Rear .5 in; 2022 Ford F-250 Super Duty 2022 Ford F-350 Super Duty ; Lowers Rear .5 in; 2023 Ford F-250 Super Duty 2023 Ford F-350 Super Duty ; Lowers Rear .5 in; 2024 Ford F-250 Super Duty 2024 Ford F-350 Super Duty ; Lowers Rear .5 in;
