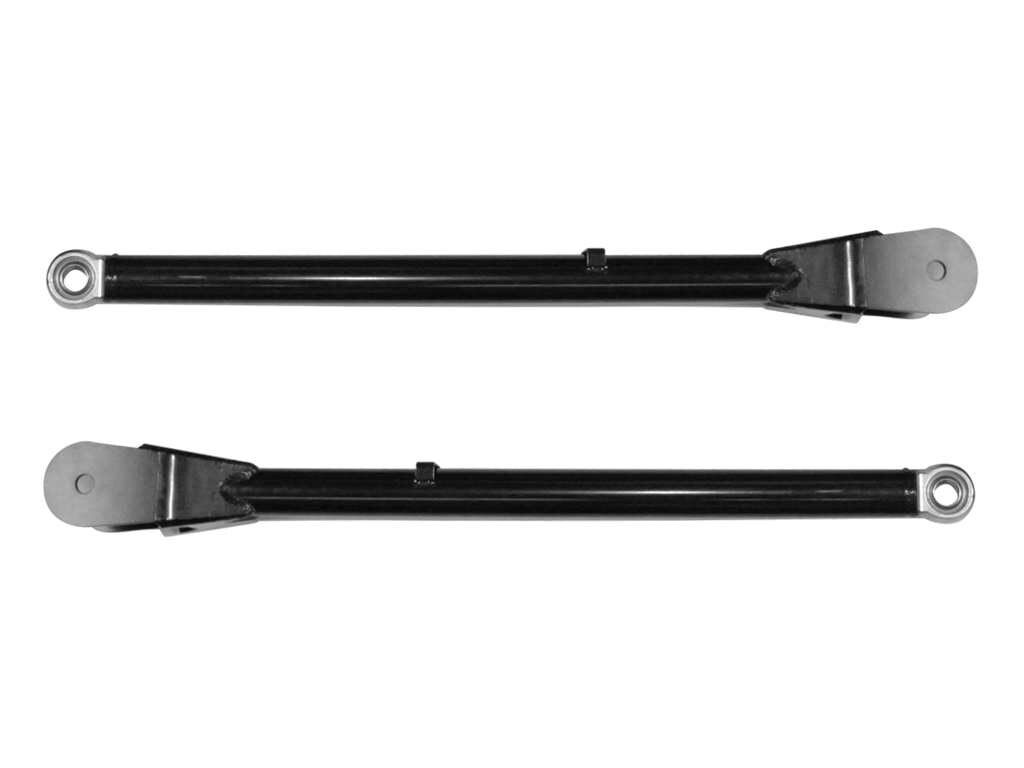

Ford (4WD) Suspension Control Arm Link - Front Upper - ICON Vehicle Dynamics - 164501

FSD UPPER LINKS
164501
TECH NOTE: Only fits 2005-2022 Ford Super Duty 4WD models
TECH NOTE: Compatible with 2.
5"-7" of front lift
TECH NOTE: Requires ICON 4-Link brackets depending on year range: part number 164500, 164503, or 164504, and ICON lower links, part number 164502, for complete installation.
05-22 FSD FRONT UPPER LINKS
The ICON 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation and improves handling of the truck by maintaining consistent caster angles and eliminating bushing bind in the stock radius arms.
These upper links are an essential component of the ICON 2005-2022 Ford Super Duty 4-Link Conversion System.
This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range.
The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link.
This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness.
Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
Improves front end articulation and overall drivability
Allow on-vehicle caster adjustment via ICON double adjusters in lower links
Upper links are constructed from CNC machined 2” x.
188” wall DOM steel tubing
PTFE lined FK spherical bearings eliminate deflection
Corrosion resistant semi-gloss black powder coat finish
Fabricated components covered under ICON's Limited Lifetime Warranty
ICON 2005-2022 Ford F-250/F-350 Super Duty 4WD, Front Upper Links, 164501
ICON 2005-2022 Ford F-250/F-350 Super Duty 4WD, Front Upper Links
ICON 05-22 FSD FRONT UPPER LINKS.

Detailed Fitment Results
Year Make Model 2005 Ford F-250 Super Duty 2005 Ford F-350 Super Duty 2006 Ford F-250 Super Duty 2006 Ford F-350 Super Duty 2007 Ford F-250 Super Duty 2007 Ford F-350 Super Duty 2008 Ford F-250 Super Duty 2008 Ford F-350 Super Duty 2009 Ford F-250 Super Duty 2009 Ford F-350 Super Duty 2010 Ford F-250 Super Duty 2010 Ford F-350 Super Duty 2011 Ford F-250 Super Duty 2011 Ford F-350 Super Duty 2012 Ford F-250 Super Duty 2012 Ford F-350 Super Duty 2013 Ford F-250 Super Duty 2013 Ford F-350 Super Duty 2014 Ford F-250 Super Duty 2014 Ford F-350 Super Duty 2015 Ford F-250 Super Duty 2015 Ford F-350 Super Duty 2016 Ford F-250 Super Duty 2016 Ford F-350 Super Duty 2017 Ford F-250 Super Duty 2017 Ford F-350 Super Duty 2018 Ford F-250 Super Duty 2018 Ford F-350 Super Duty 2019 Ford F-250 Super Duty 2019 Ford F-350 Super Duty 2020 Ford F-250 Super Duty 2020 Ford F-350 Super Duty 2021 Ford F-250 Super Duty 2021 Ford F-350 Super Duty 2022 Ford F-250 Super Duty 2022 Ford F-350 Super Duty
