Ford (4WD) Suspension Control Arm Link Mount - Front - ICON Vehicle Dynamics - 164500

4-LINK BRACKET KIT
164500
TECH NOTE: Only fits 2005-2010 Ford Super Duty 4WD models
TECH NOTE: Compatible with 2.
5"-7" of front lift
TECH NOTE: Requires ICON 4-Link Arms Part numbers 164501 and 164502 to complete installation.
05-10 FSD 4 LINK FRAME BRACKET KIT
The ICON 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation and improves handling of the truck by maintaining consistent caster angles and eliminating bushing bind in the stock radius arms.
The 4-link bracket kit is an essential component of the ICON 2005-2010 Ford Super Duty 4-Link Conversion System.
This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range.
The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link.
This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness.
Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
Improves front end articulation and overall drivability
Allows on-vehicle caster adjustment via ICON double adjusters in lower links

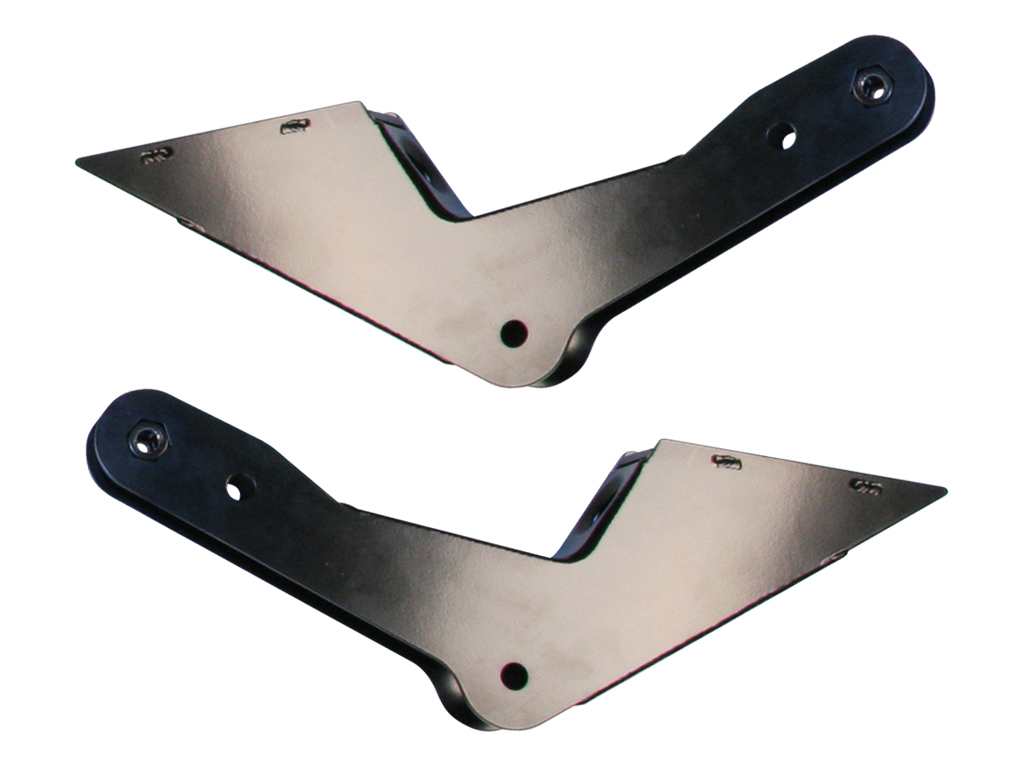

Brackets are fabricated from CNC laser cut and brake-formed steel plate
Corrosion resistant semi-gloss black powder coat finish
100% Bolt-on system - no cutting or welding necessary for install
Fabricated components covered under ICON's Limited Lifetime Warranty
ICON 2005-2010 Ford F-250/F-350 Super Duty 4WD, 4 Link Frame Bracket Kit, 164500
ICON 2005-2010 Ford F-250/F-350 Super Duty 4WD, 4 Link Frame Bracket Kit
ICON 05-10 FSD 4 LINK FRAME BRACKET KIT.

Detailed Fitment Results
Year Make Model 2005 Ford F-250 Super Duty 2005 Ford F-350 Super Duty 2006 Ford F-250 Super Duty 2006 Ford F-350 Super Duty 2007 Ford F-250 Super Duty 2007 Ford F-350 Super Duty 2008 Ford F-250 Super Duty 2008 Ford F-350 Super Duty 2009 Ford F-250 Super Duty 2009 Ford F-350 Super Duty 2010 Ford F-250 Super Duty 2010 Ford F-350 Super Duty
