11-23 Dodge Challenger (3.6, 5.7, 6.2, 6.4) Suspension Kit - Hurst - 6130010

HURST SK
Spring Kit
SPRING KIT 20112022 CHALLENGER
Fits 2011-2023 Dodge Challenger SXT, R/T, and SRT8 Models (Except with load Leveling rear Suspension.) Professional installation recommended - special tools required.
springs; kit; coil springs; challenger; stage; 1; dodge; rt; sxt; srt8

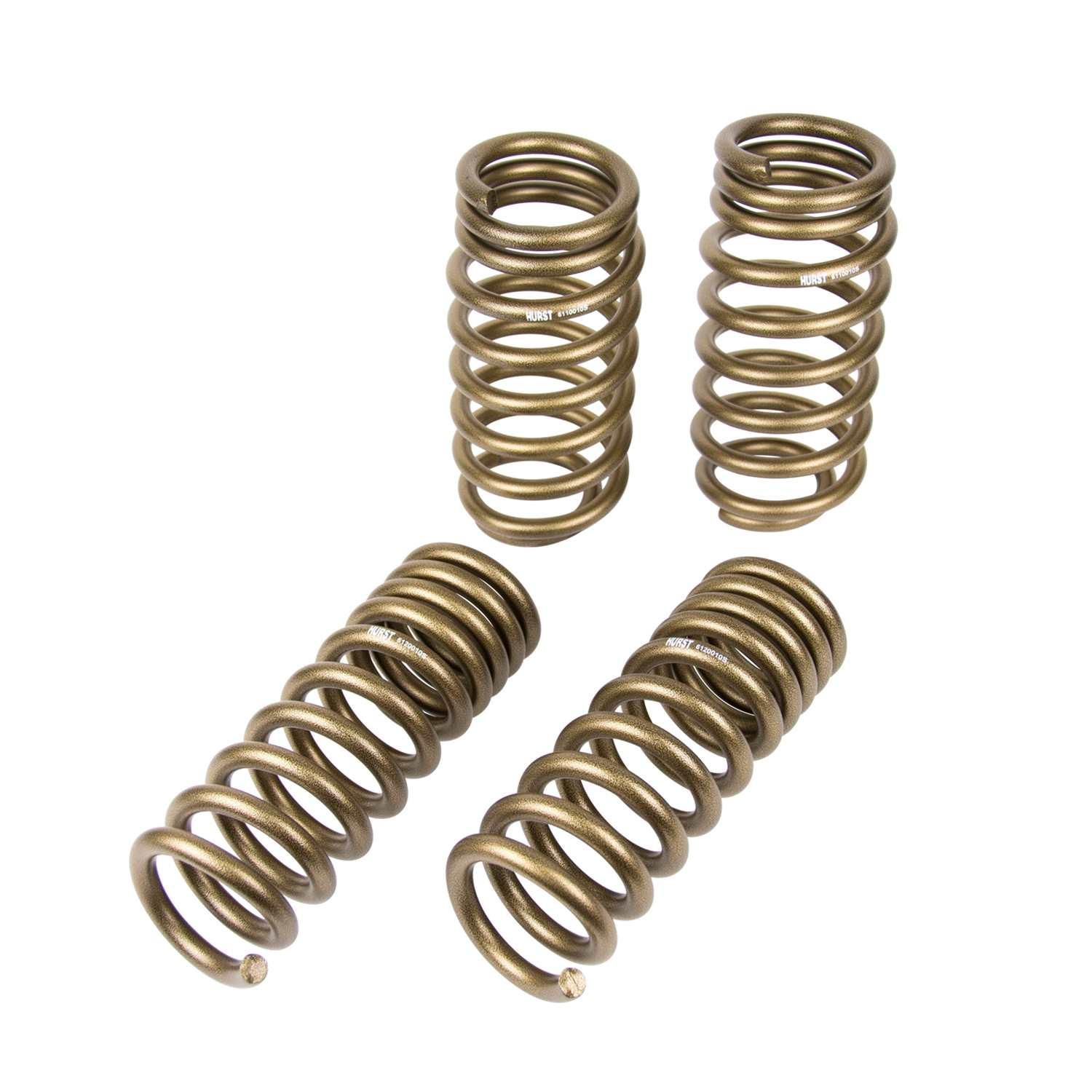

Hurst Stage 1 Performance Spring Kit
2011-2023 Dodge Challenger SXT, GT, R/T, SRT8 models (see notes below)
The Hurst High-Performance Spring Kit is an excellent choice for firming up the handling of your car and giving it that Just Right stance. These springs will lower the R/T models by approximately 1.75 inches and the SRT8 models by approximately 1 inch, closing up that fender gap, lowering the center of gravity for improved handling and braking, and improving the overall driving feel. Through careful design and rate tailoring, the Hurst High-Performance Kit accomplishes all of the above while still being street friendly. Does not fit models with factory load-leveling rear suspension.
Hurst Hammered Gold/Black Coating
Great Daily Driving Characteristics
Improved Handling and Braking
Lowers Car by 1.00-1.75 inches
Strong Muscular Stance
Hurst Hammered Gold/Black Coating
Great Daily Driving Characteristics
Improved Handling and Braking
Lowers Car by 1.00-1.75 inches
Strong Muscular Stance
Automotive Item Grade: High Performance
Bar Size (in): 0.593 (Front) / 0.610 (Rear)
Brand: Hurst
Bushings Included: No
California Proposition 65 Required: No
Category: Suspension
Coil End Type (1): Tangential
Coil End Type (2): Pigtail
Color/Finish: Hurst Gold Powdercoat
Constant or Variable Spring Rate: Variable (Front) / Variable (Rear)
Emission Code: 5
Max Compressed Diameter (in): 5.281 (Front) / 7.17 (Rear)
Max Compressed Length (in): 5.28
Package Quantity: 4
part type: Suspension Kit
Product Type: Coil Spring
Progressive Rate Spring: No
Spring Position: Front and Rear
Spring Rate: 260-312 LBS/IN (Front)
Sub Category: Suspension, Springs and Related Components
Uncompressed Diameter (in): 5.210 (Front) / 4.125 (Rear)
Uncompressed Length (in): 11.500 (Front) / 12.250 (Rear)
Use Location: Suspension

Detailed Fitment Results
Year Make Model Engine Size Sub Model Fitment Notes 2011 Dodge Challenger 5.7 R / T Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2011 Dodge Challenger 3.6 SXT Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2011 Dodge Challenger 6.4 SRT8 / SRT Does Not Fit With Load Leveling Rear Suspension 2011 Dodge Challenger 3.6 SXT Plus / SE Does Not Fit With Load Leveling Rear Suspension 2012 Dodge Challenger 5.7 R / T Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2012 Dodge Challenger 3.6 SXT Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2012 Dodge Challenger 6.4 SRT8 / SRT Does Not Fit With Load Leveling Rear Suspension 2012 Dodge Challenger 3.6 SXT Plus Does Not Fit With Load Leveling Rear Suspension 2012 Dodge Challenger 5.7 R / T Classic Does Not Fit With Load Leveling Rear Suspension 2013 Dodge Challenger 5.7 R / T Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2013 Dodge Challenger 3.6 SXT Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2013 Dodge Challenger 6.4 SRT8 Does Not Fit With Load Leveling Rear Suspension 2013 Dodge Challenger 3.6 SXT Plus / Rallye Redline Does Not Fit With Load Leveling Rear Suspension 2013 Dodge Challenger 5.7 R / T Classic Does Not Fit With Load Leveling Rear Suspension 2014 Dodge Challenger 5.7 R / T Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2014 Dodge Challenger 3.6 SXT Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2014 Dodge Challenger 6.4 SRT8 / SRT Does Not Fit With Load Leveling Rear Suspension 2014 Dodge Challenger 5.7 R / T Classic / Base Does Not Fit With Load Leveling Rear Suspension 2014 Dodge Challenger 3.6 Rallye Redline Does Not Fit With Load Leveling Rear Suspension 2015 Dodge Challenger 5.7 R / T Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2015 Dodge Challenger 3.6 SXT Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2015 Dodge Challenger 3.6 SXT Plus / Black Line Does Not Fit With Load Leveling Rear Suspension 2015 Dodge Challenger 6.2 SRT Hellcat Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2015 Dodge Challenger 6.4 Scat Pack / SRT 392 Does Not Fit With Load Leveling Rear Suspension 2015 Dodge Challenger 5.7 R / T Plus Does Not Fit With Load Leveling Rear Suspension 2016 Dodge Challenger 5.7 R / T Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2016 Dodge Challenger 3.6 SXT Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2016 Dodge Challenger 3.6 SXT Plus / Black Line Does Not Fit With Load Leveling Rear Suspension 2016 Dodge Challenger 6.2 SRT Hellcat Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2016 Dodge Challenger 6.4 Scat Pack / SRT 392 / 392 Hemi Scat Pack Shaker Does Not Fit With Load Leveling Rear Suspension 2016 Dodge Challenger 5.7 R / T Plus / T Shaker / T Plus Shaker Does Not Fit With Load Leveling Rear Suspension 2016 Dodge Challenger 6.4 R / T Scat Pack DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION
Does Not Fit With Load Leveling Rear Suspension 2017 Dodge Challenger 5.7 R / T Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2017 Dodge Challenger 3.6 SXT / GT Does Not Fit With Load Leveling Rear Suspension
DOES NOT FIT WITH LOAD LEVELING REAR SUSPENSION 2017 Dodge C…
