79-86 Ford Mustang (140, 302) Brake Hydraulic Line Lock Kit - Hurst - 5671526

HURST BHLLK
Line/Loc Kit
7983 MUSTANG ROLL CONTROL
INSTALLATION NOTES: - When working on the brake system, maintain a clean working area, not allowing dirt or foreign matter to contaminate it which may allow improper operation and failure. WARNINGS: - This system is designed primarily for high-performance race cars to momentarily engage front brakes (max 60 seconds) while staging for a drag race. It won't safely function as a long-term brake holding device. It should be used only on specified applications with a standard hydraulic braking system that is in a safe, operable condition. - It should never be used as a temporary brake-holding device in place of a parking brake or a driver depressing the brake pedal. We do NOT recommend installing the system on vehicles equipped with anti-lock or split diagonal brake systems. CAUTION: - Carefully read and comprehend all instructions before beginning installation. If you are inexperienced in performing this type of installation, we strongly recommend using a qualified mechanic or shop to complete it. - Using thread seal to excess can contaminate the solenoid valve or brake system. Use sparingly and do NOT apply it to the starter thread of fittings. - Be sure to check all connections for leakage under pressure. There must be NO leakage.
5671526, fox body roll control, Hurst, shifter, roll, control, automatic, manual, transmission, knob, handle, t-handle, pistol, grip, line, lock, brake, roll, control, line lock,fox body line lock,mustang line lock,
Hurst Roll/Control, Line/Loc Kit - Early Ford Fox Body Mustang
Fits 1979-1983 Ford Mustang 5.0L and 1979-1986 Ford Mustang 2.3L w/out ABS

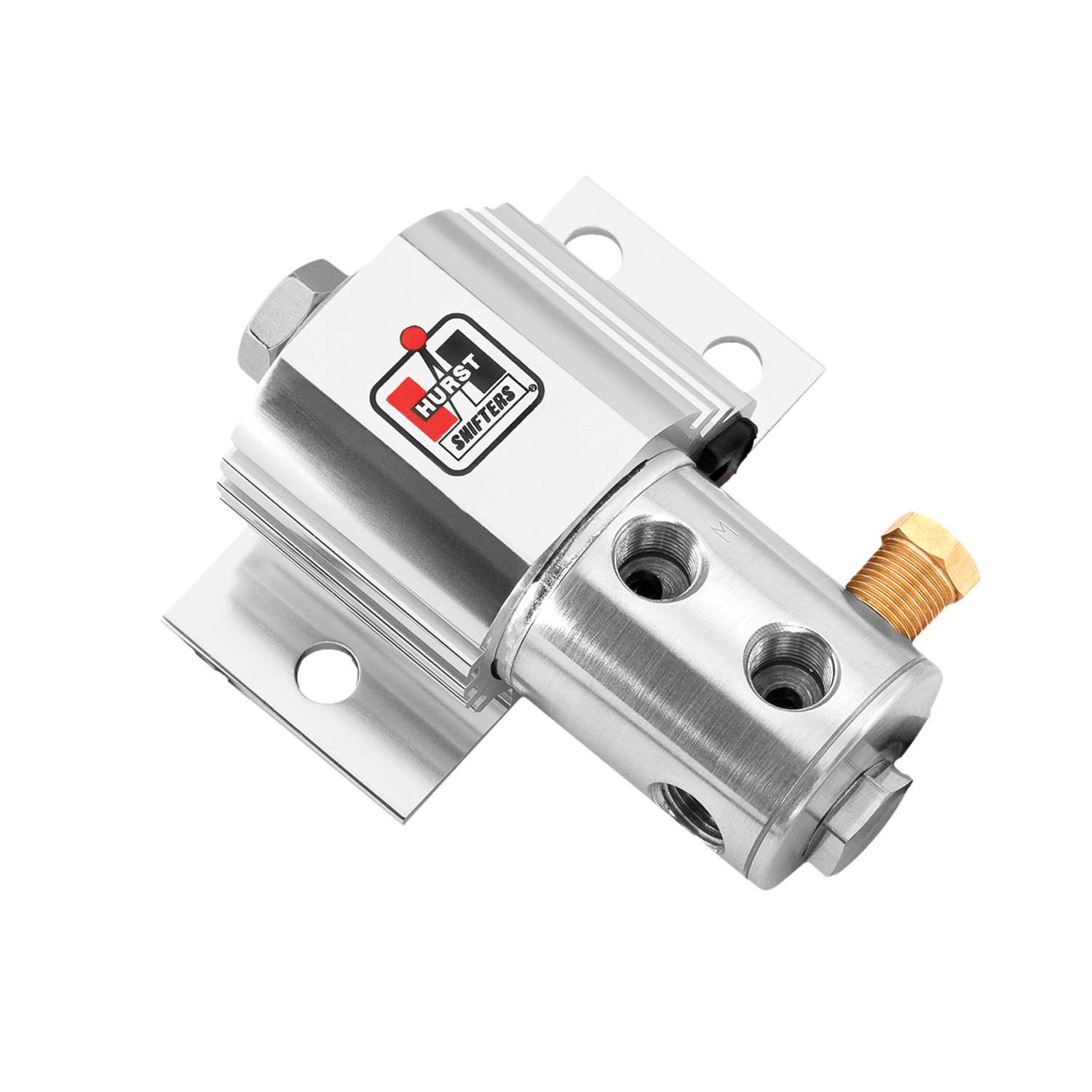

The Hurst® Roll/Control®, Line/Loc® kit for your 1979-1983 Ford Mustang 5.0L and 1979-1986 Ford Mustang 2.3L is primarily used in drag racing to lock the front wheels allowing for more consistent burnouts when heating up the tires to make a pass. This kit comes with all the necessary parts needed to easily install a Hurst Line/Loc system on your vehicle. Includes a stainless steel Roll/Control valve, brake line, fittings, lighted momentary switch, bracket, wiring, and much more. Rigorous testing has proved a 1/100,000 of a second release time and vibration tests have seen up to 30 G's applied without mechanical failure.
The advanced quality design utilizes a stainless steel valve assembly for ultimate corrosion resistance. Other features include a fully enclosed epoxy-molded electrical coil for reliability, an attractive finned aluminum housing that helps dissipate heat, and a wider lightweight base that provides better mounting stability and 150-micron screen-filtered ports to prevent contamination. The Roll/Control Kit is field serviceable for cleaning or rebuilding and comes with an extra threaded port for a separate bleeder or brake line pressure gauge. The kit also includes a snap-action switch, indicator light, 4-amp fuse, mounting screws, and installation instructions.
Note: Not recommended for use as a parking brake, or for longer than 60 seconds maximum at any one time.
Extra Threaded Port for Separate Bleeder or Brake Line Pressure Gauge
Stainless Steel Valve Assembly for Ultimate Corrosion Resistance
150 Micron Screen Filtered Ports help Prevent Contamination
Can be Used to Hold Brakes for Up to 60 Seconds Maximum
Attractive Finned Aluminum Housing Helps Dissipate Heat
Field Servicable for Cleaning or Rebuilding
Fully Enclosed, Epoxy-Molded Coil
Extra Threaded Port for Separate Bleeder or Brake Line Pressure Gauge
Stainless Steel Valve Assembly for Ultimate Corrosion Resistance
150 Micron Screen Filtered Ports help Prevent Contamination
Can be Used to Hold Brakes for Up to 60 Seconds Maximum
Attractive Finned Aluminum Housing Helps Dissipate Heat
Field Servicable for Cleaning or Rebuilding
Fully Enclosed, Epoxy-Molded Coil
Additional Contents: Solenoid valve, fuse, arming switch, activation switch, brake lines and mounting hardware
Amp Rating: 4
Application: 1979-1986 Ford Mustang (84-86 2.3L only)
Automotive Item Grade: High Performance
Brand: Hurst
California Proposition 65 Chemical Name: Lead
California Proposition 65 Chemical Name: Chromium (hexavalent compounds)
California Proposition 65 Required: Yes
Category: Brake
Emission Code: 5
Inlet Port Gender: Female
Inlet Ports: 1
Inlet Thread Size: 1/8 inch
Installation Hardware Included: Yes
Lighted Switch: Yes
Material: Stainless Steel
Mounting Method: Universal screw on bracket
Outlet Port Gender: Female
Outlet Ports: 3
Outlet Thread Size: 1/8 inch
part type: Brake Hydraulic Line Lock Kit
Product Type: Brake Line Lock Kit
Sub Category: Service Kits
Switch: Activation/Engagement Switch
Switch Actuation Type: Push Button
Warning: California Proposition 65

Detailed Fitment Results
Year Make Model Engine Size Sub Model 1979 Ford Mustang 5.0 Base / Ghia 1979 Ford Mustang 2.3 Base / Ghia 1980 Ford Mustang 5.0 Base 1980 Ford Mustang 2.3 Base / Ghia 1981 Ford Mustang 5.0 Base 1981 Ford Mustang 2.3 Base / Ghia 1982 Ford Mustang 5.0 Base / GT / L / GL / GLX 1982 Ford Mustang 2.3 Base / Ghia / L / GLX / GL 1983 Ford Mustang 5.0 Base / GT 1983 Ford Mustang 2.3 L / GLX / GL / Turbo GT 1984 Ford Mustang 2.3 L / SVO / LX / GT-350 20th Anniversary / GT 1985 Ford Mustang 2.3 SVO / LX 1986 Ford Mustang 2.3 SVO / LX
