Brake Hydraulic Line Lock Kit - Hurst - 1745000

HURST BHLLK
Line/Loc Kit
ROLLCONTROL WSTAINLESS VALVE
Universal
Hurst Shifters, performance, shifter, transmission, knob, linkage, kit, automatic, manual, roll, control, solenoid, valve, replacement, drag, brake, lock, line
Hurst Roll/Control®, Line/Loc Kit - Universal
Universal Launch Control Universal Kit with Stainless Valve
The Hurst® Roll/Control® is used primarily in drag racing to provide positive locking action to the front wheels of race cars, reducing the chance of "Rolling the Lights" and producing more effective "Burn Outs" for heating up the tires. Rigorous testing has proved a 1/100,000 of a second release time and vibration tests have seen up to 30 G's applied without mechanical failure. Adaptable to most domestic and import hydraulic brake systems. Advanced quality design stainless steel valve assembly for ultimate corrosion resistance. Fully enclosed epoxy molded electrical coil for reliability. Attractive finned aluminum housing helps dissipate heat. Wider lightweight base provides better mounting stability 150 micron screen filtered ports to prevent contamination. Field serviceable for cleaning or rebuilding. Extra threaded port for separate bleeder or brake line pressure gauge Kit includes solenoid valve, snap-action switch, indicator light, 4-amp fuse, mounting screws and installation instructions. Note: Not recommended for use as a parking brake, or for longer then 60 seconds maximum at any one time.
Extra Threaded Port for Separate Bleeder or Brake Line Pressure Gauge
Stainless Steel Valve Assembly for Ultimate Corrosion Resistance
150 Micron Screen Filtered Ports help Prevent Contamination
Can be Used to Hold Brakes for Up to 60 Seconds Maximum
Attractive Finned Aluminum Housing Helps Dissipate Heat
Field Servicable for Cleaning or Rebuilding
Fully Enclosed, Epoxy-Molded Coil
Extra Threaded Port for Separate Bleeder or Brake Line Pressure Gauge
Stainless Steel Valve Assembly for Ultimate Corrosion Resistance
150 Micron Screen Filtered Ports help Prevent Contamination
Can be Used to Hold Brakes for Up to 60 Seconds Maximum
Attractive Finned Aluminum Housing Helps Dissipate Heat
Field Servicable for Cleaning or Rebuilding
Fully Enclosed, Epoxy-Molded Coil

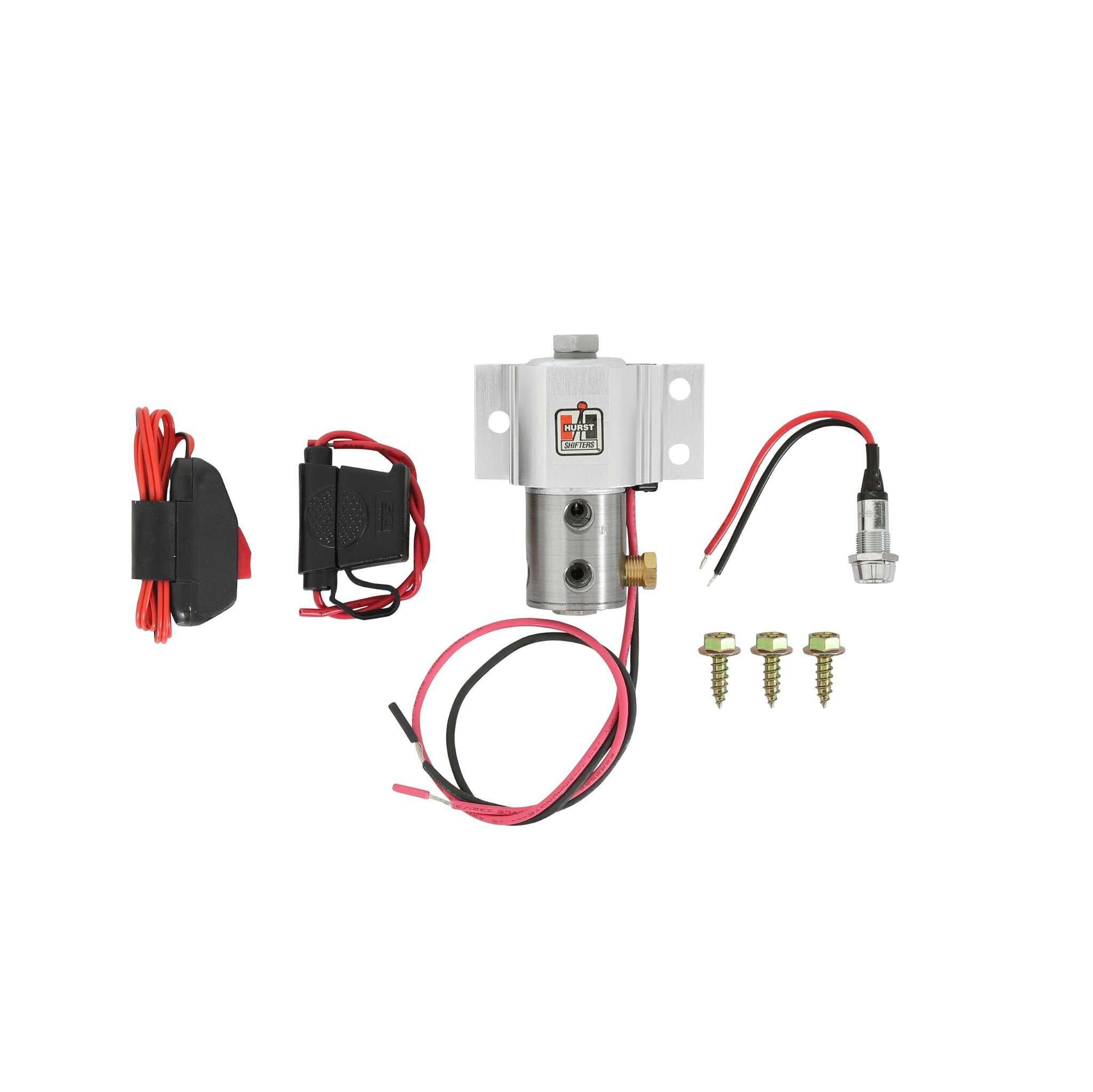

Additional Contents: Solenoid valve, snap action switch, indicator light, 4 Amp fuse and mounting screws
Amp Rating: 4
Automotive Item Grade: High Performance
Brand: Hurst
California Proposition 65 Chemical Name: Chromium (hexavalent compounds)
California Proposition 65 Chemical Name: Lead
California Proposition 65 Required: Yes
Category: Brake
Emission Code: 5
Inlet Port Gender: Female
Inlet Ports: 1
Inlet Thread Size: 1/8 inch
Installation Hardware Included: Yes
Lighted Switch: Yes
Material: Stainless Steel
Mounting Method: Bolt on, bracket included
Outlet Port Gender: Female
Outlet Ports: 3
Outlet Thread Size: 1/8 inch
part type: Brake Hydraulic Line Lock Kit
Product Type: Brake Line Lock Kit
Sub Category: Service Kits
Switch Actuation Type: 3.5
Terminal Type: Raw Wire
Warning: California Proposition 65
