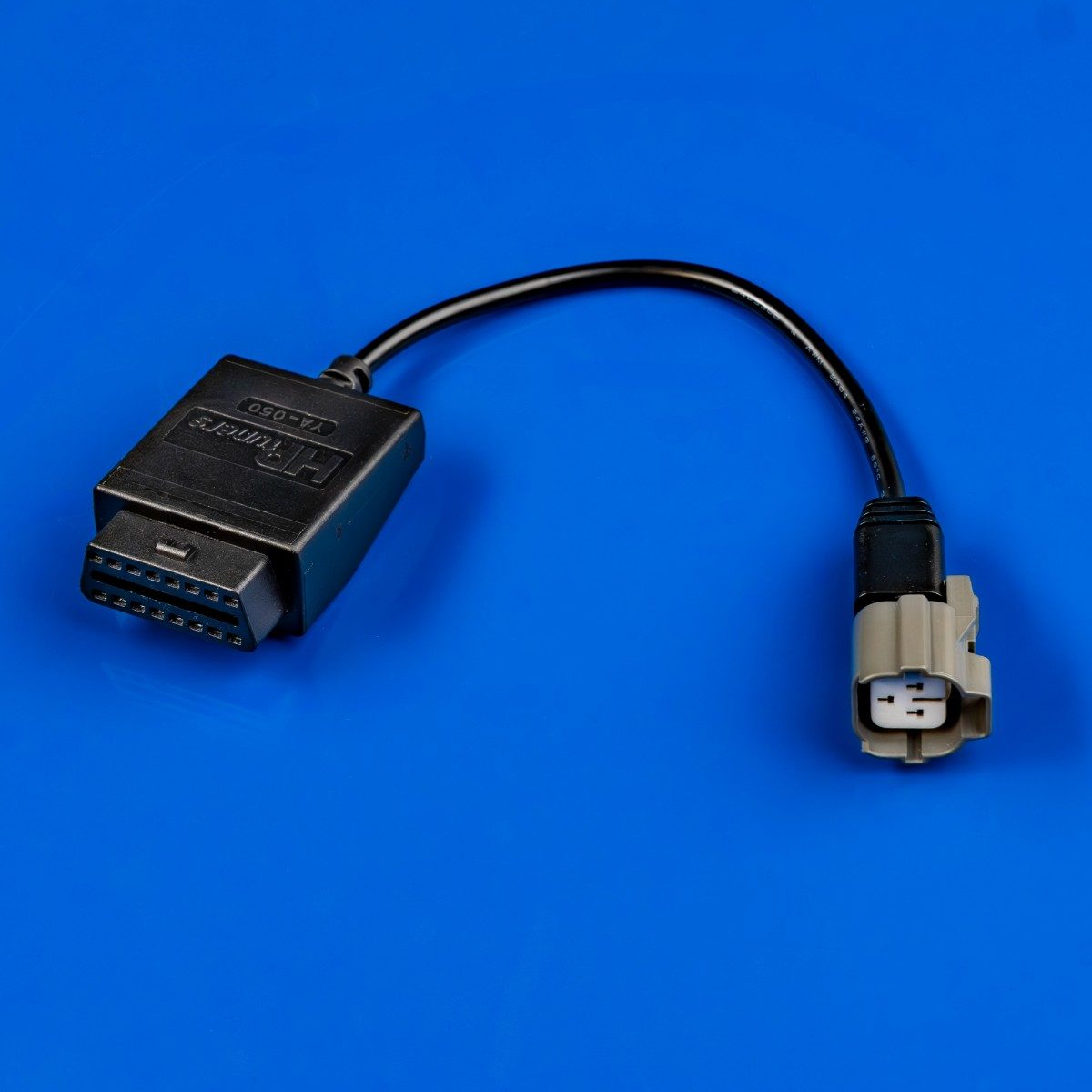

OBDII Adapter Cable – Yamaha 3-Pin - HP Tuners - H-002-14

The OBDII Adapter Cable – Yamaha 3-Pin allows HP Tuners interfaces to connect to supported Yamaha marine engines for diagnostic and data monitoring functions.
This adapter cable connects the Yamaha 3-pin diagnostic connector to an MPVI3 or MPVI4 interface, enabling communication with VCM Scanner for live data monitoring and engine diagnostics.
Using VCM Scanner, users can review engine parameters, monitor performance data, and identify diagnostic trouble codes to better understand how the engine is operating on the water.
This cable is designed specifically for Yamaha marine diagnostic access and does not support calibration writing. Please see  OBDII Adapter Cable – Yamaha Marine  for flashing cables.
Key Features
Yamaha 3-pin diagnostic connection
Provides direct access to supported Yamaha engine diagnostic ports.
Engine data monitoring
Works with VCM Scanner to display engine parameters.
Diagnostic capabilities
Allows users to review engine data and identify potential issues.
Simple integration with HP Tuners hardware
Connects directly to MPVI3 or MPVI4 interfaces.
Important Usage Notes
This cable is designed for  diagnostics and data monitoring only .
This cable  does not support calibration writing .
For calibration writing, use the  Yamaha marine flashing cables .
Requirements
To use this Yamaha 3-Pin Diagnostic Cable you will need:
MPVI3 or MPVI4 interface
VCM Suite software
Supported Yamaha Marine Applications
Supported Yamaha Marine Applications
These cables are used with supported Yamaha four-stroke outboard engines, including:
F225
F250
F300
F350
Select F40–F150 models (application dependent)
Refer to the HP Tuners  vehicle support list  for full compatibility details.
In the Box
Yamaha 3-Pin Diagnostic Adapter Cable
Quick Start Guide
Please  click HERE  to see our detailed quick start guide.
