GM Gen V LT Swap Oil Pan As Cast with Turbo Oil Return GM Gen V LT Swap Oil Pan As Cast with Turbo Oil or PVC Return Port - Holley - 302-20

Gm's new Gen V Lt direct injected engines are starting to find their way into a large variety of vehicles. They make great power, plus they're very durable and reliable.

Unfortunately, the factory oil pans don't always fit or they hang too low for today's hot rods. Holley's new Lt Swap Engine Oil Pan is designed to help!

It provides maximum clearance to the chassis and ground, plus provides an Oe (Original Equipment) style fitment for durability and proper sealing. These oil pans are perfect for: 1967-1992 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1978-1987 G-body, 1964-1972 A-body, and 1973-1987 Chevy/GMC Full Size Trucks.

Features and Benefits:


Designed for Lt Engine Swap Installations in Classic Car and Truck Chassis Requiring More Oil Pan to Chassis Clearance Around the Front Half of the Oil Pan Allows for up to 4.00 inch Crankshaft Stroke Can Be Used Anywhere a Gm F-Body Oil Pan Can Be Used Provides Oe Style fitment - Oe oil filter mounting, Oe oil cooler port provision, Oe engine Nvh suppression, Oe flange gasket and sealing, proper structural rigidity and Oe bell-housing attachments Traditional High-Quality Cast Aluminum Appearance With Clean Exterior Styling Provides Maximum Clearance for Vehicles Where the Steering Linkage is Behind the Engine cross-member Traditional high-quality cast aluminum appearance with clean exterior styling

Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember

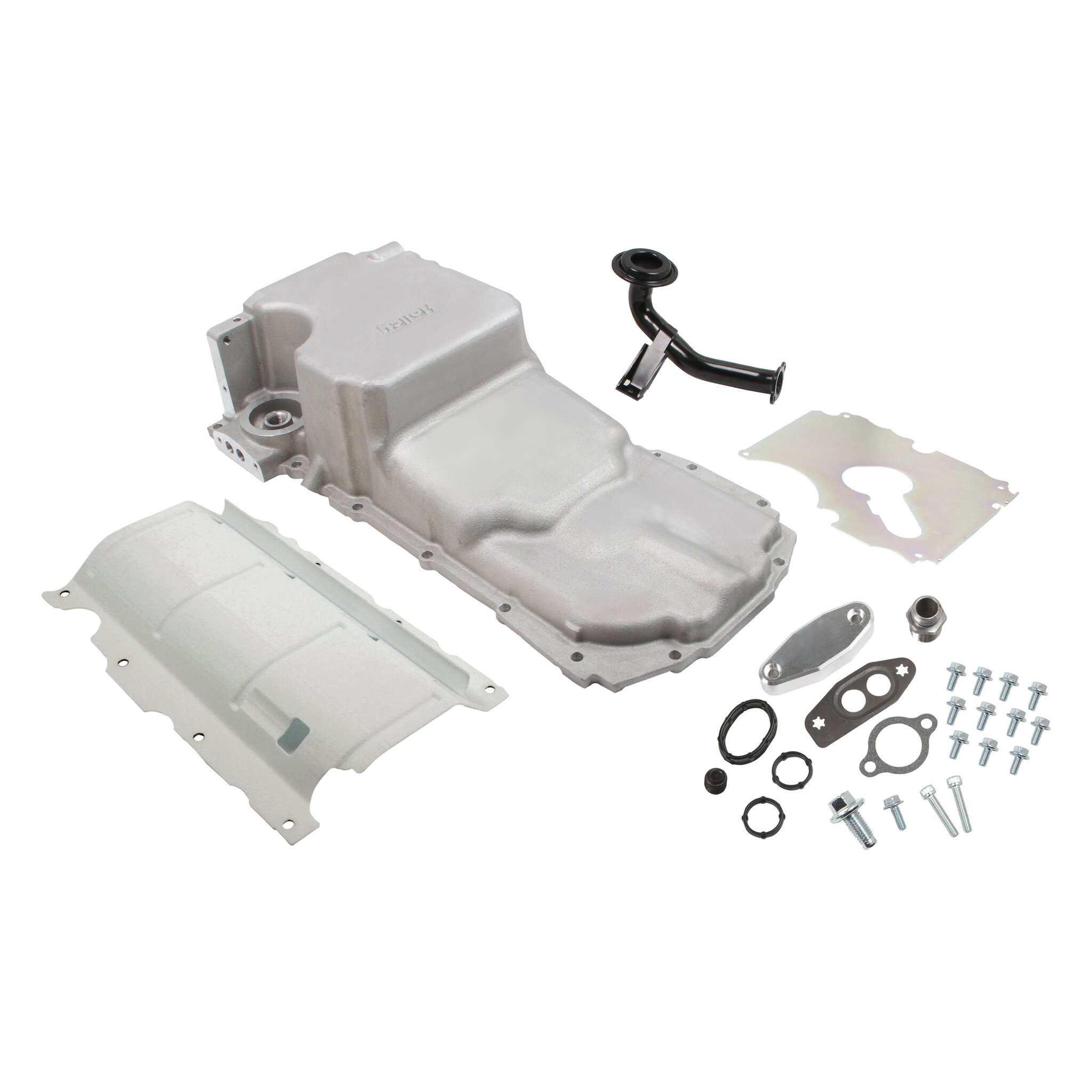

Cast and machined aluminum 1/2 inch NPT port - Ideal for Turbo Oil Return or Pcv Oil Return Optional Hinge Door Baffle - Available Separately Complete Kit Includes: Windage Tray, Sump Baffle, Oe Style Pick-Up Tube, Sump Port Plug, Oil Filter Stud, Billet Oil Passage Cover, etc.


Associated Comments:


Maximum Recommended Crankshaft Stroke 4.00 inch. This oil pan is not for use on engines that originally used a dry sump oiling system.

Recommended Lt Dipstick & Dipstick Tube - Gm part #s 12661062 (dipstick) and 12678823 (dipstick tube) Some factory LT1 applications include an oil temperature sensor. Currently this pan does not have a boss to install that temperature sensor.

If the sensor is desired, it will have to be relocated and machining would be required.


Details:


Application: Gm Gen V Lt

Baffled: No

Capacity: 6.1 U.S Quart

Color: Silver

Crank Shaft Wiper Included: No

Dipstick Port: No

Drain Plug Included: Yes

Engine: Gm Gen V (Lt)

Finish: Natural Cast

Grade Type: Performance

Material: Aluminum

Maximum Stroke: 4.00 Inch

Oil Pan Capacity: 6.1 Quarts

Oil Pan Type: Cast

Oil Return Size: 1/2 Inch NPT

Pickup Included: Yes

Sump Location: Rear

Sump Type: Wet

Turbo Oil Drainback: Yes

Warranty: Manufacturer's Limited 90 Day Warranty

Windage Tray Included: Yes
