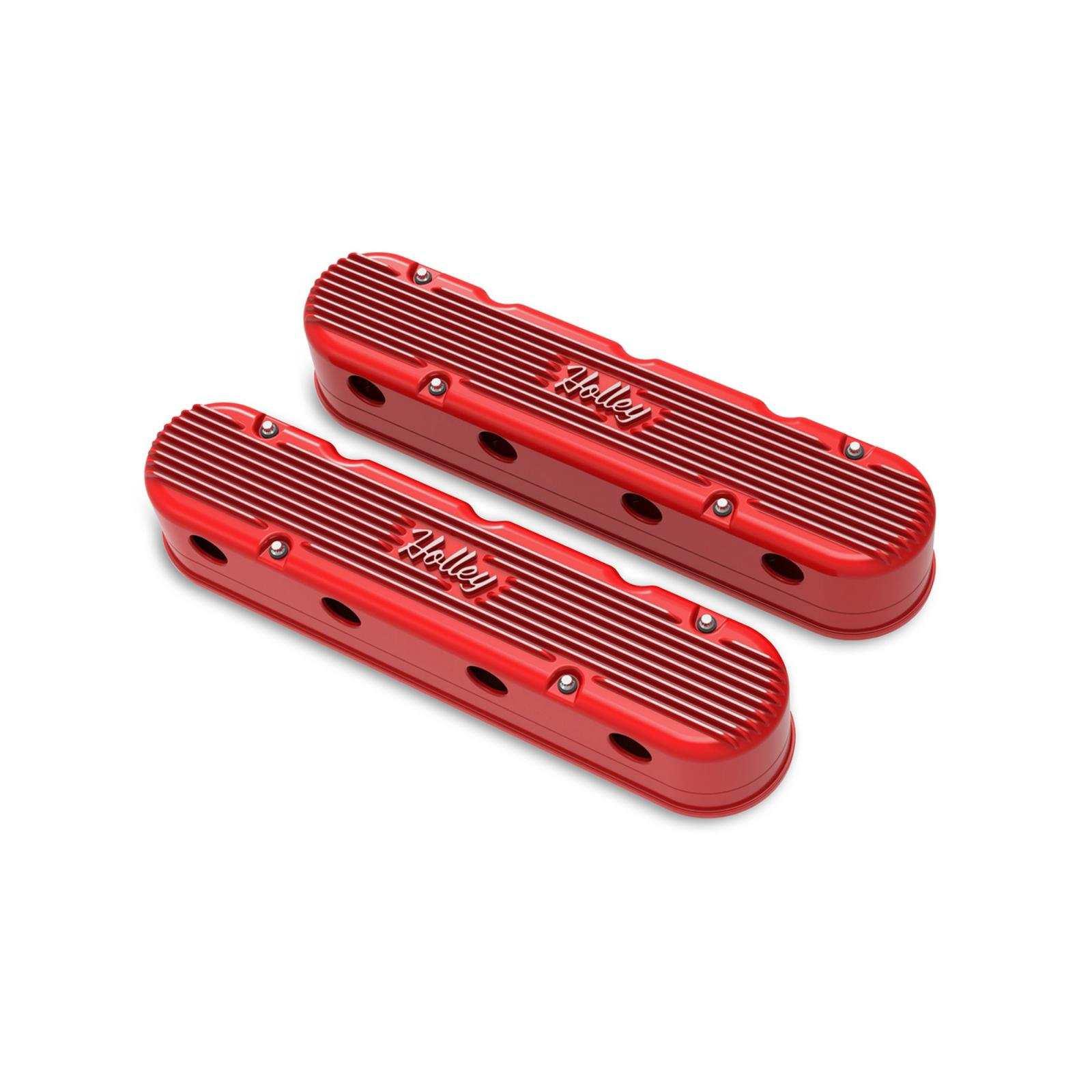

2-Piece Vintage Series Valve Cover Gen III/iv LS Gloss Red Machined Chevrolet Gen III/iv LS Cast Aluminum Coil-Mounting Base & Integrated Coil Cover - Holley - 241-174

Holley's new 2-Piece Ls valve covers are a great way to update the look of your Ls engine without the use of complicated adapter systems or the hassle of remote coil relocation. These modular Ls valve covers feature an Oe height, internally baffled Ls valve cover base with integrated coil mounts for popular Gen I and Gen V style Ls coil bodies (coils not included), and a vintage finned overcover that hides the unsightly Ls coils and messy wiring harness - allowing the full performance benefits of coil-on-cover ignition setups without the robotic styling.

Each modular coil cover features our Vintage Series style fins with a script Holley logo that seamlessly blends with other finned Holley dress-up accessories such as our Ls valley covers and 14 inch round air cleaners. The coil cover also features cast-in provisions for the spark plug boots and coil wiring harness so no extensions or custom wiring is required.

Each 2-Piece Ls valve cover set includes a low-profile billet oil fill cap, hardware and spacers for mounting both versions of Ls coil bodies, and 12-point dress up hardware and grommets for the coil covers. These modular Ls valve covers are available in 5 unique finishes: natural cast, polished, satin black, factory orange, and gloss red (black, factory orange and gloss red sets feature machined fins and logo details).

Features and Benefits:


Cast aluminum 2-Piece Ls valve covers designed to mount and hide both Gen I and Gen V style Ls coil bodies Retain the performance of factory coil-on-cover ignition without the unsightly styling Base fits LS1, LS2, LS3, LS6 and LS7 engines Base features internally baffled ventilation system Clearance for .750 inch lift cam with stock style rocker arms Coil cover features Holley Vintage Series style fins & script logo with cast-in wiring provisions No coil relocation, wire harness extensions, or custom spark plug wires required Includes low-profile billet oil fill cap Includes all necessary coil mounting and dress-up hardware


Associated Comments:


The Oe Camaro and Corvette accessory brackets may need to be clearanced when installing Holley 2-Piece Ls and Tall Ls valve covers and coils.


Details:


Application: Gm Ls Engines

Baffle Included: Yes

Bolt Pattern: Center Bolt

Breather Cap Included: No

Breather(s) Included: No

Coil Mounting Studs: Yes, on Baseplate

Coil Options: with Coil Stands

Color: Gloss Red

Construction: Die Cast Aluminum

Design Type: 2-Piece Ls

Features: Finned

Finish: Gloss Red

Gasket Included: No

Gaskets Included: No

Grade Type: Performance

Grommets Included: No

Height: 3.75 Inch

Hold Down Tabs Included: No

Logo: Holley Script

Material: Cast Aluminum

Mounting Hardware Included: Yes

Oil Fill: Yes

Oil Fill Cap Included: Yes

Oil Filler Cap Included: Yes

Overall Height: 3.75 Inch

Quantity: Pair

Style: Holley Vintage Series

Type of Component: Valve Cover

Valve Cover Gasket Included: No

Valvetrain Clearance: .750 Inch lift cam with stock style rocker arms

Warranty: Manufacturer's Limited 90 Day Warranty
