Premium Black Mid-Mount Complete Accessory System Gen III Hemi Engine VVT Fits 2009 & Up 5.7L & 2011 & Up 6.4L Engines Black Finish SFI Certified Damper with Billet Aluminum Pulley - Holley - 20-293BK

Holley's complete, mid-mount accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a bracketless design (patent pending), where the accessories bolt directly to the timing cover for a clean, integrated system.

The design offers superb engine visibility to show off your horsepower, not your accessories. Among the many swap friendly features are two optional heater connection configurations.

The innovative Holley premium alternator incorporates 6-phase and square wire technology. The compact and reliable SD7 A/C compressor and Type Ii P/S pump with baffled reservoir are also integrated.

The kit utilizes Holley's proven cartridge style water pump. When we say complete, we mean complete.

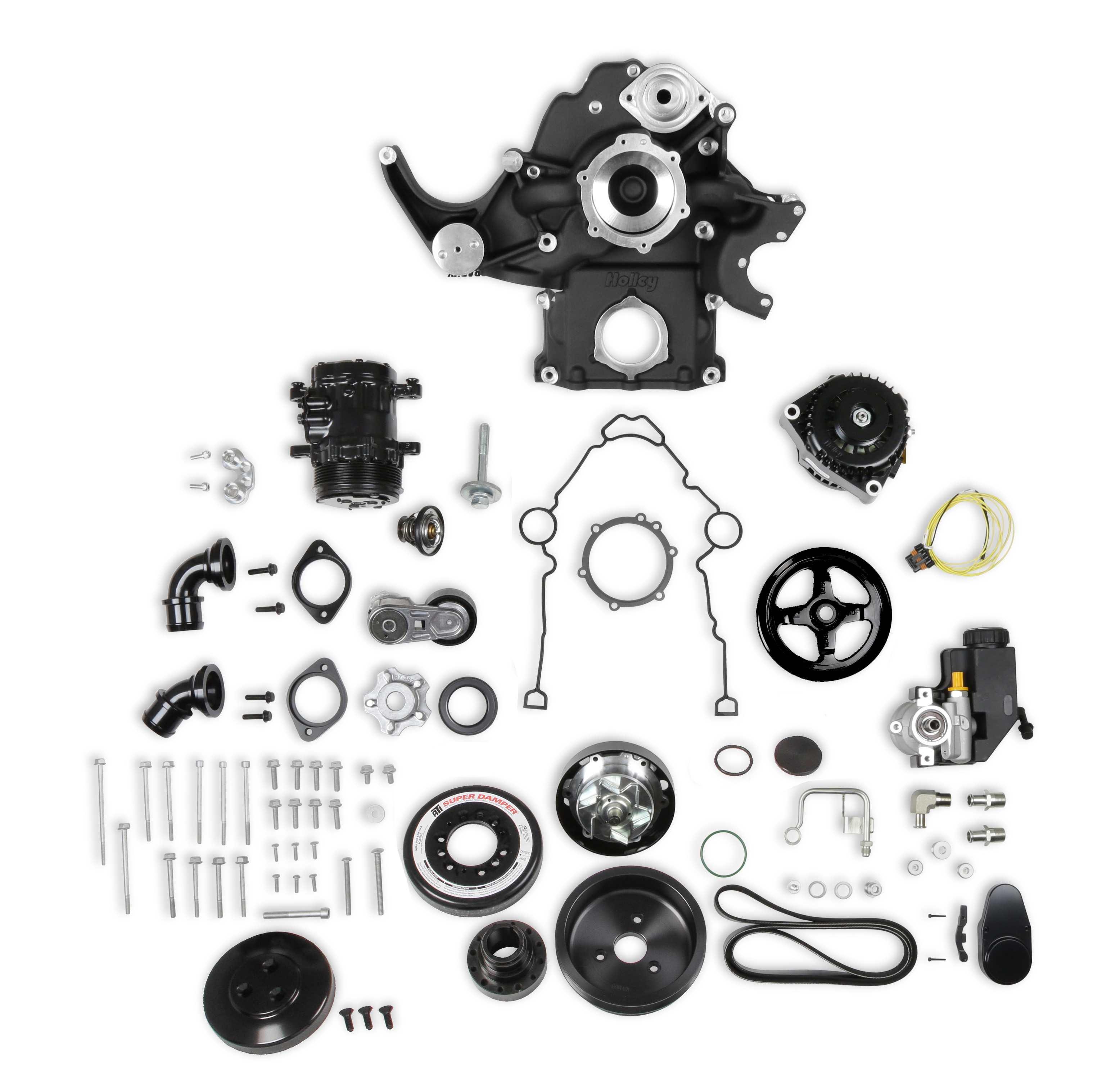

The Mid-Mount system comes with everything you need. All accessories are included; the water pump, A/C compressor, Alternator, P/S pump with reservoir, and the crank damper.

All pulleys and the belt are supplied. Even heater hose adapters, power steering to -6 An hardline, and the alternator plug/harness are included.

Easy assembly was a priority during the entire development of this accessory solution. Color graphical instructions walk you through every step of the ultra-easy installation.

This accessory drive system fits following Vvt Engines: 2009-Up 5.7L 2011-Up 6.4L

Bracketless Accessory Mounting System for Ultra-Easy Assembly - Timing Cover is Integrated into this Bracket / Casting Configurable Heater Hose Connection Options - for Hose Routing Flexibility Holley Premium 150 Amp alternator - Plenty of Power for All Vehicle Systems Easy Wiring of Alternator That Doesn't Require Factory ECU to Excite Alternator Alternator is Tucked in Tight to the Engine - Eliminates Frame Rail or Hood Clearance Issues (Common with Factory Car or Truck Drive Systems) Holley Water Pump w/ Cartridge Design - Compact & Easy to Service Without Removing the Water Pump Housing / Timing Cover SD7 A/C Compressor - Small Compact Compressor Type Ii Power Steering Pump with Baffled Reservoir Power Steering Pump Has Proper Pressure for use with Steering Box on Older Vehicles (Eliminates Steering Box Damage Due to Excessive Pressure) Swivel Water Inlet & Outlet - Allows Custom Radiator Hose Routing Oe (Original Equipment) Pulley Ratios for Optimal Accessory Performance No Adapters or Spacers Needed - for Easy Installation Works with Common After-Market and Factory Throttle Bodies and Intakes Choose from Kits in Natural Aluminum or Black Finish - Fits Naturally Aspirated Gen Iii Hemi Engines (5.7L, 6.1L, and 6.4L) Includes Oe Style Damper with Cast in Serpentine Pulley All Accessories are Included

Features and Benefits:


Water Pump, A/C Compressor, Alternator, Power Steering Pump w/ Reservoir, Pulleys & Crank Damper All Plumbing Adapters, Wiring Adapters, Gaskets and Seals are Included Available for Vvt (Variable Valve Timing - 2009-Up 5.7L and 2011-Up 6.4L) and Non-Vvt (2003-2008 5.7L, and 2005-2010 6.1L) Engines in Natural Cast Aluminum or Black Finish


Details:


A/C Compressor Included: Yes

A/C Compressor Type: SD7

Accessory Drive Style: Mid-Mount

Alternator Amperage: 150

Alternator Included: Yes

Application: Gen Iii Hemi

Belt Included: Yes

Damper Included: Yes

Damper Style: Sfi Certified

Engine: Gen Iii Hemi - Vvt

Finish: Black

Inlet Size: 1.75

Material: Cast Aluminum

Outlet Size: 1.75

Output: 150 Amps

Power Steering Hardline Included: Yes

Power Steering Pulley Included: Yes

Power Steering Pump Included: Yes

Power Steering Reservoir Included: Yes

Pulley Style: Serpentine

Tensioner Included: Yes

Thermostat Included: Yes

Warranty: Manufacturer's Limited 90 Day Warranty

Water Neck Included: Yes

Water Pump Included: Yes

Water Pump Pulley Included: Yes
