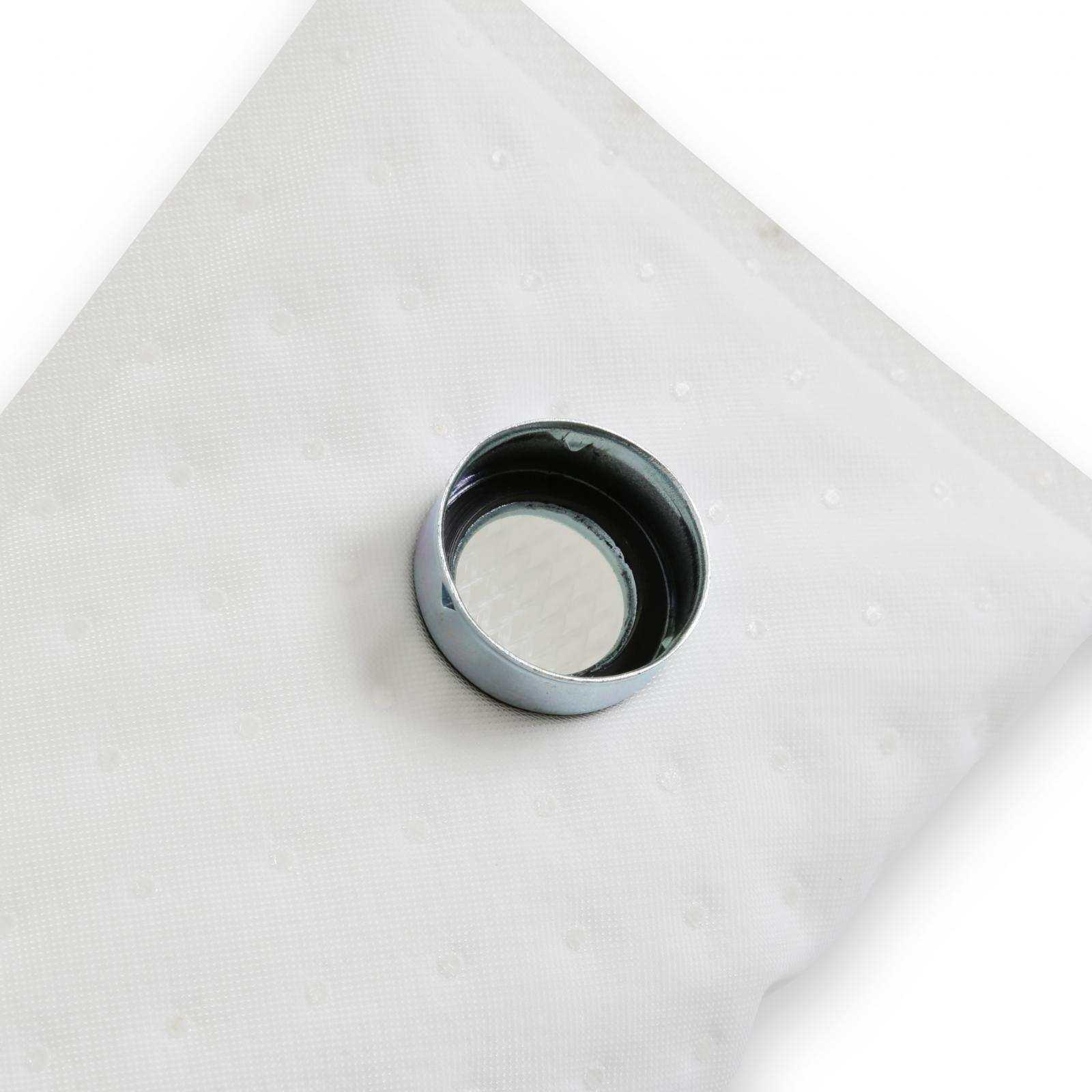

Hydramat (3X8) 19MM OffSet Fuel Pickup Mat - Holley - 16-152

Holley's patent pending design that solves the problems associated with traditional fuel pick ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling.

Surface tension and fluid wicking are the secrets of the HydraMat's amazing ability to draw fuel from nearly any area that has contact with fuel and store it in the internal reservoir. As an area of the Hydramat is uncovered, the tiny pores of the media seal off thru surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available.

The sheer size and coverage area of the HydraMat allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. Surface tension and fluid wicking are the secrets of the HydraMat's amazing ability to draw fuel from nearly any area that has contact with fuel and store it in the internal reservoir.

As an area of the Hydramat is uncovered, the tiny pores of the media seal off thru surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity.

Features and Benefits:


Patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells Greatly reduces the potential for air to enter into the fuel system which can result in poor engine performance and/or engine stalling Perfect for vehicles experiencing fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel conditions Surface tension and fluid wicking allow the HydraMatTM to continue to draw fuel from the tank or cell even when part of the mat uncovered As an area of the HydraMatTM is uncovered, tiny pores in the media seal off through surface tension, forcing fuel to be drawn from other areas of the mat where fuel continues to be available Unique internal reservoir assists in keeping fuel available at the pickup even under extreme fuel slosh conditions Also acts as a 15 micron pre-filter eliminating the need for a separate filter before the fuel pump Can be folded and compressed for easy installation through a variety of fuel cell openings


Details:


Color: White

Grade Type: Performance

Length: 8 inches

Micron: 19

Screen Micron Rating: 15 Micron, Micrometer, Micrometre

Warranty: Manufacturer's Limited 90 Day Warranty

Width: 3 inches
