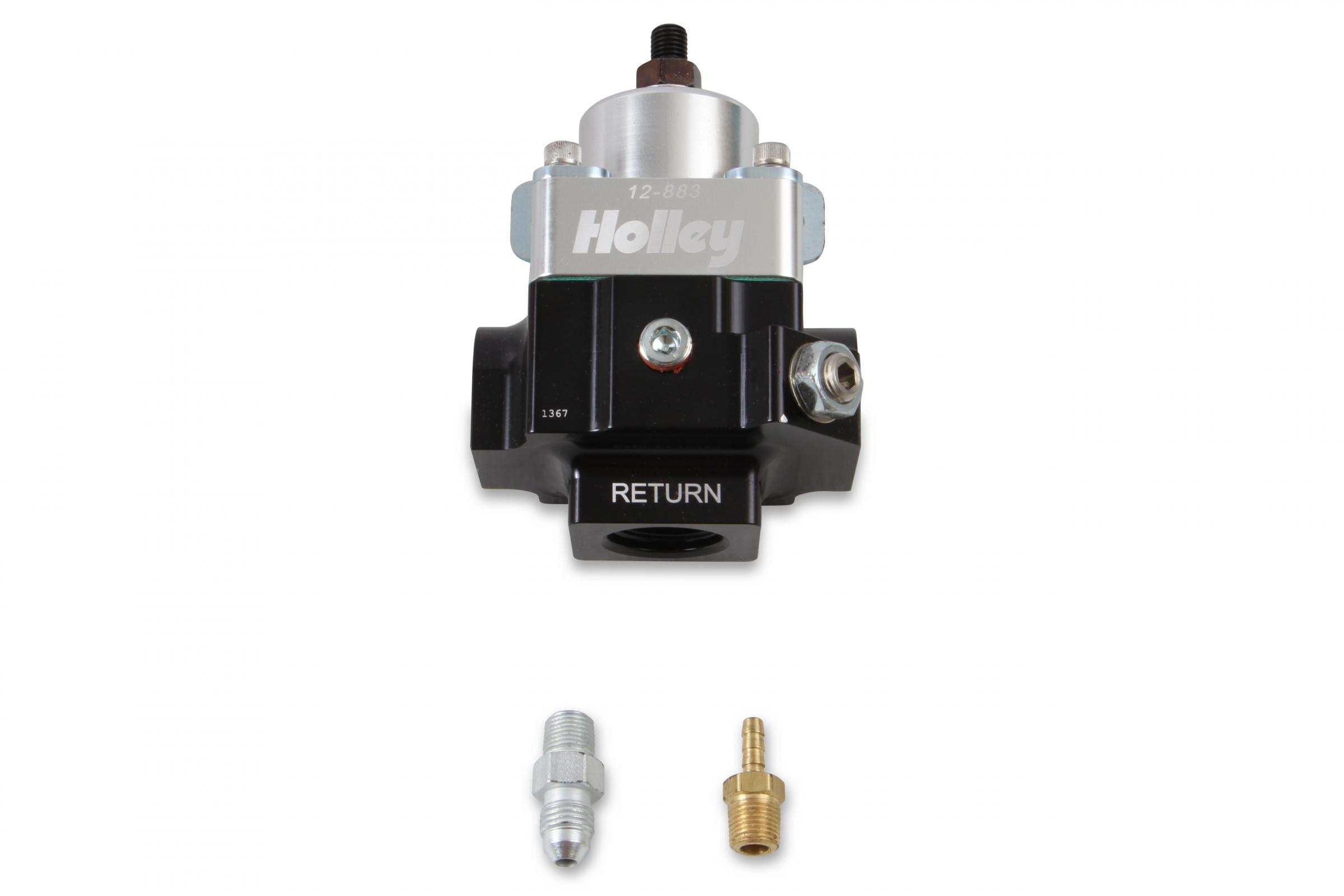

Double Adjustable Fuel Regulator 2 Port Double Adjustable Regulator 10AN Adjustable from 4-9 PSI - Holley - 12-883

Holley's new double adjustable fuel pressure regulators are designed for belt or cable driven pumps where fuel flow changes with engine rpm. These regulators are compatible with E85 and alcohol applications.

Made from billet aluminum, these regulators are offered in both 2-Port and 4-Port models to complete your fuel system requirements. The idle adjustment design is strategically placed so that none of the ports are blocked like other designs.

These regulators retain the true 2 and 4 port flow. Alcohol and E85 compatible.

2 Port models available with 8AN and 10AN port size

Features and Benefits:


Individual adjustment settings, one for idle and wide open throttle

Fuel pressure adjustability at idle can help prevent flooding at low rpms Wide open throttle settings help to prevent fuel starvation at the top end of the rpm range Alcohol and E85 compatible.


Associated Comments:


Regulator is compatible with Diesel #1 and Diesel #2.


Details:


Adjustable: Yes

Application: Universal

Color: Black Anodized

Fuel Type: Diesel | Gasoline

Fuel System: Carbureted

Gauge Included: No

Gauge Port Included: Yes

Grade Type: Performance

Inlet Gender: Female

Inlet Port Diameter: 10 An Orb

Inlet Port Quantity: 1.0

Inlet Size: 10 An

Inlet Type: 10 An Orb

Material: Aluminum

Maximum Pressure: 9 Pounds per Square Inch

Minimum Pressure: 4 Pounds per Square Inch

Mounting Bracket Included: Yes

Mounting Type: Inline

Outlet Gender: Female

Outlet Port Diameter: 10 An Orb

Outlet Port Quantity: 2.0

Outlet Size: 10 An

Outlet Type: 10 An Orb

Port Quantity: 2.0

Pressure Range: 4-9 PSI

Rebuildable: Yes

Style: Double Adjustable

Vacuum Port Quantity: 1.0

Warranty: Manufacturer's Limited 90 Day Warranty
