HolleySKU: BSD-HLY-12-880

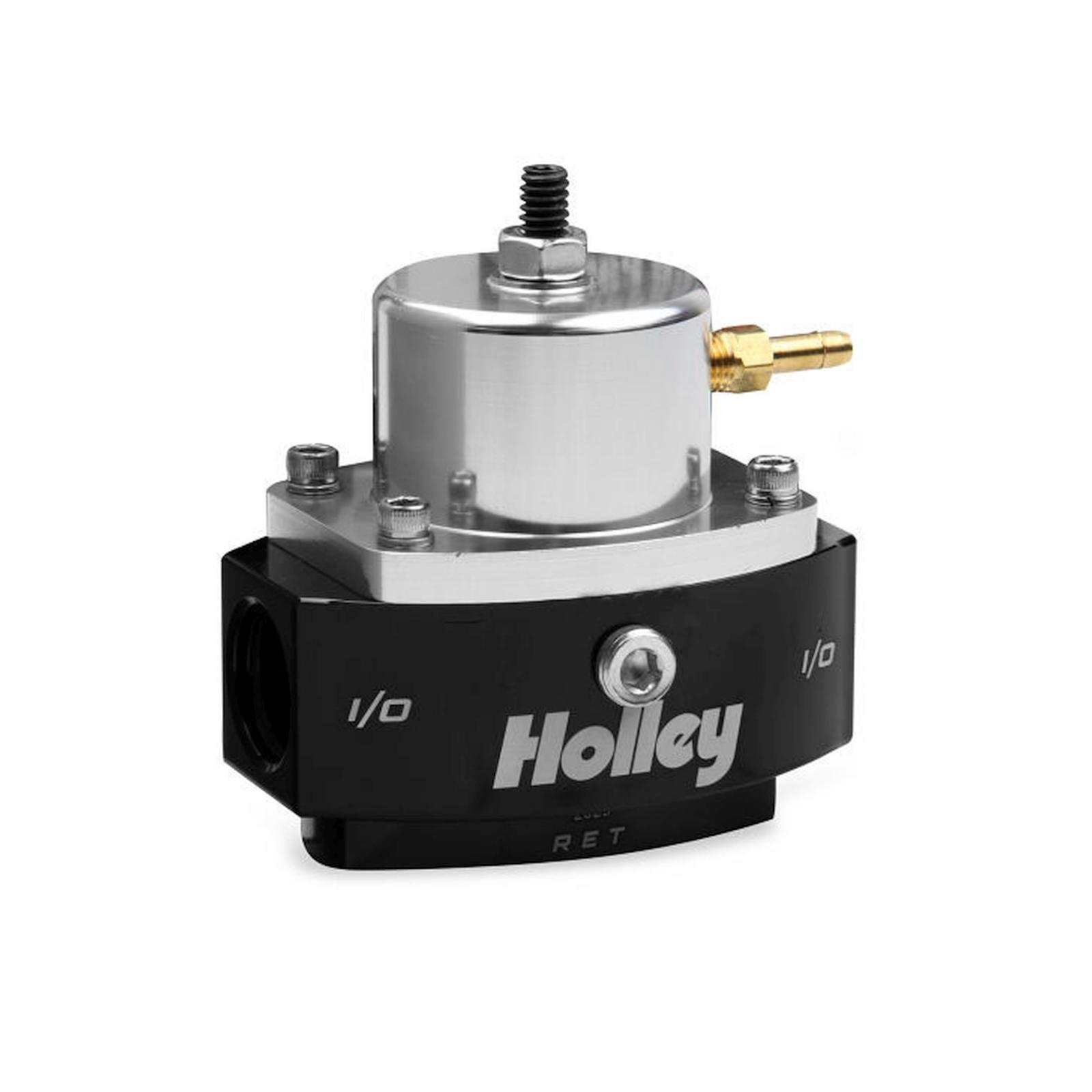

Carb/efi Adjustable Billet By-Pass Regulator-6AN Carb/efi Adjustable Billet By-Pass Return Style Fuel Pressure Regulator 6AN Boost Reference 11 - Holley - 12-880
Description
Holley Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley. They are precision machined from 6061-T6 billet aluminum for strength and durability.
These regulators are adjustable from 4-65 psi and will handle both carbureted and EFI applications. A second pressure spring is included allowing you to increase the fuel pressure range up to 65 psi for EFI systems.
They are offered with two port sizes, 3/8 inch NPT or 6AN to adapt to your new or existing fuel lines. So, if you are currently running a carbureted system but plan to upgrade to EFI in the future, these regulators will have you covered either way.
Features and Benefits:
Carb/EFI adjustable from 4-65 psi for precise fuel pressure adjustments Constructed of billet aluminum with a black anodized base and a clear anodized top for good looks Used in systems with a return line back to the tank (1) 6AN O-ring Inlet, (1) 6AN O-ring Outlet, and (1) 6AN O-ring return Includes fitting for manifold reference Includes an 1/8 NPT gauge port Boost Reference - 1:1 The 4-15 psi carbureted spring comes installed in the regulator
Details:
Adjustable: Yes
Color: Black
Fuel Type: Gasoline
Fuel System: EFI/Carb
Gauge Port: Yes
Grade Type: Performance
Inlet Quantity: 1
Inlet Size: 6 An O-Ring
Inlet Type: 6 An Orb
Material: Aluminum
Mounting Hardware Included: Yes
Mounting Type: Inline
Outlet Quantity: 1
Outlet Size: 6 An O-Ring
Outlet Type: 6 An Orb
Port Quantity: 3.0
Return Size: 6 An O-Ring
Style: Bypass
Warranty: Manufacturer's Limited 90 Day Warranty
