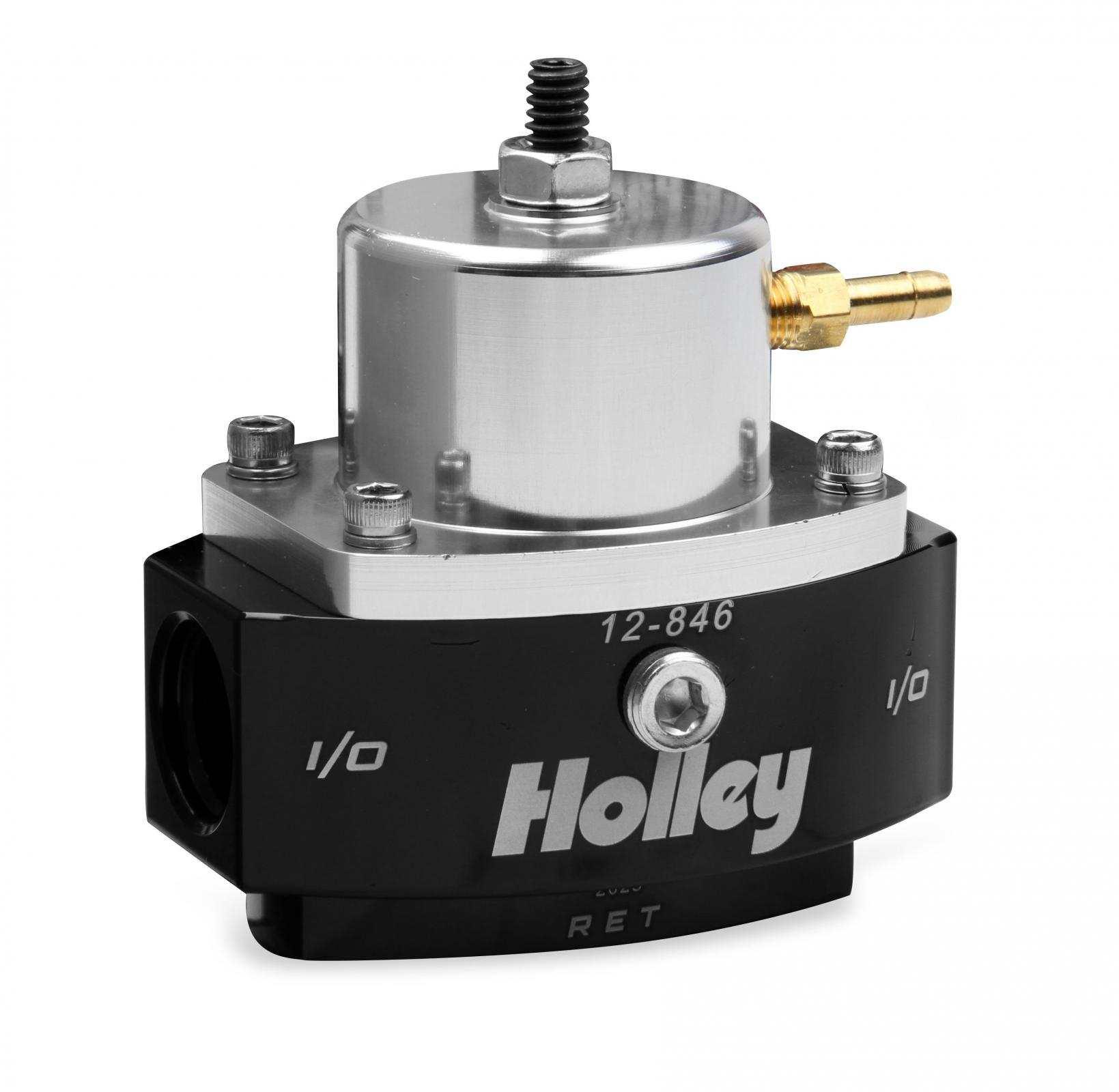

HP Billet EFI by Pass Fuel Pressure Regulator Street/strip EFI Applications Two Port Adjustable from 15 to 65 PSI Boost Reference 11 - Holley - 12-846

Holley Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley. They are precision machined from 6061-T6 billet aluminum for strength and durability.

They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-846 fuel pressure regulator features(1) -8 An O-ring inlet, (1) -8 An O-ring outlet, (1) -6 An O-ring return.

Features and Benefits:


Adjustable from 15-65 psi for precise fuel pressure adjustments Constructed of billet aluminum with a black anodized base and clear anodize top for good looks Used in systems with a return line back to tank Includes fitting for manifold reference Use with electric pumps only (1) -8 an o-ring inlet, (1) -8 an o-ring outlet, (1) -6 an o-ring return 1/8 inch NPT gauge port Designed for use with the Holley Hptm in-line fuel pumps or other high pressure electric pumps where return line is needed Mounting bracket included


Associated Comments:


Regulator is compatible with Diesel #1 and Diesel #2.


Details:


Adjustable: Yes

Color: Black Anodized

Fuel Type: Diesel | Gasoline

Fuel System: EFI

Gauge Port: Yes

Grade Type: Performance

Inlet Quantity: 1

Inlet Size: 8 An O-Ring

Inlet Type: 8 An Orb

Material: Aluminum

Mounting Hardware Included: Yes

Mounting Type: Inline

Outlet Quantity: 1

Outlet Size: 8 An O-Ring

Outlet Type: 8 An Orb

Port Quantity: 3.0

Pressure Range: 15-65 PSI

Return Size: 6 An O-Ring

Style: Bypass

Warranty: Manufacturer's Limited 90 Day Warranty
