HolleySKU: BSD-HLY-12-843

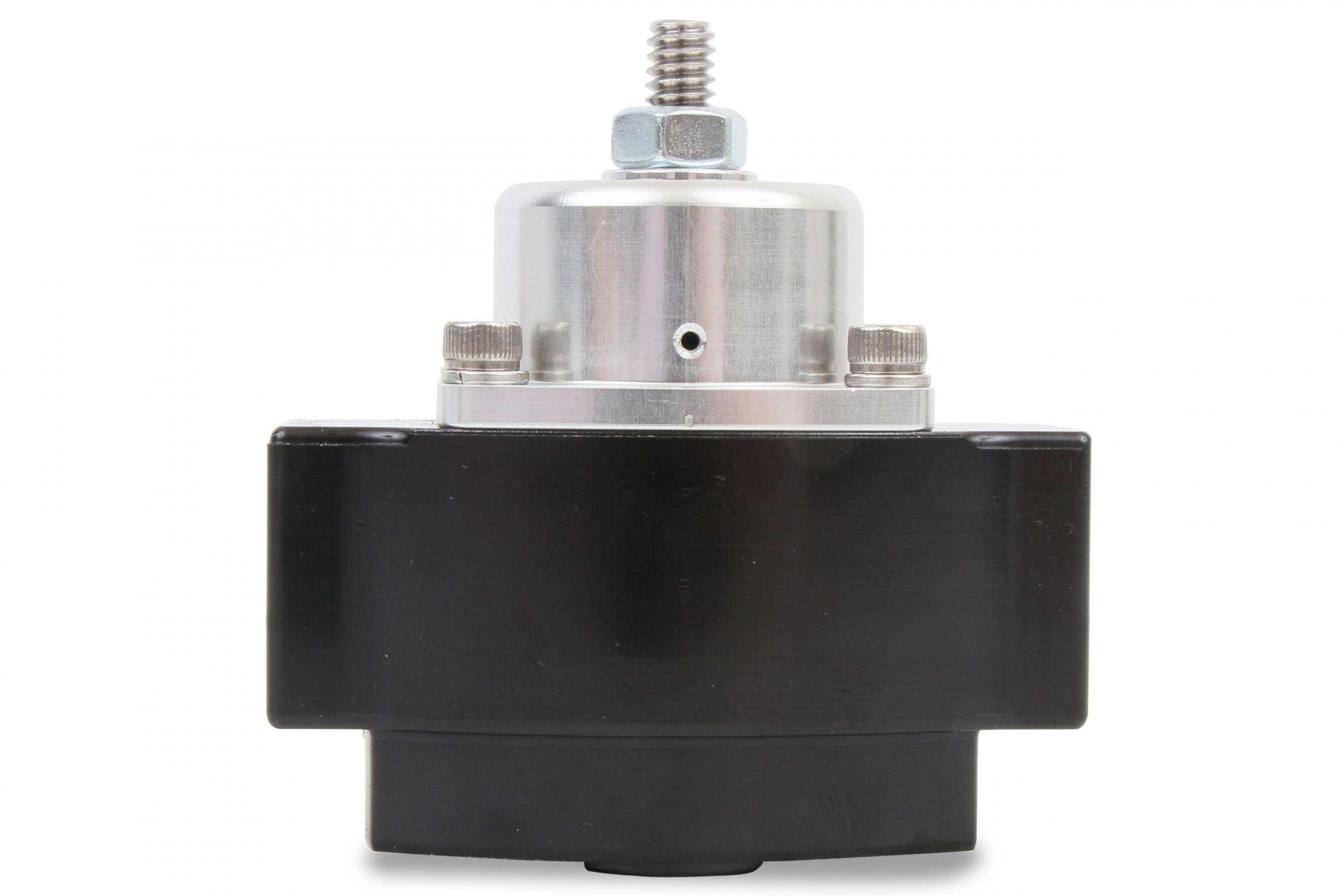

HP Billet Carbureted Fuel Pressure Regulator Street/strip Carbureted Applications Two Port Adjustable from 4.5 to 9 PSI - Holley - 12-843
Description
Holley Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley. They are precision machined from 6061-T6 billet aluminum for strength and durability.
They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-843 fuel pressure regulator features (1) -10 An O-ring inlet, (2) -8 An O-ring outlets.
Features and Benefits:
Adjustable from 4.5-9 psi for precise fuel pressure adjustments Constructed of billet aluminum with a black anodized base and clear anodize top for good looks Used in systems where a return line is not needed Use with electric or mechanical pumps (1) -10 an O-ring inlet,(2)-8 an O-ring outlets 1/8 inch NPT gauge port Comparable and interchangeable with popular Holley 12-704 regulator Mounting bracket included
Associated Comments:
Regulator is compatible with Diesel #1 and Diesel #2.
Details:
Adjustable: Yes
Color: Black Anodized
Fuel Type: Diesel | Gasoline
Fuel System: Carbureted
Gauge Included: No
Gauge Port Included: Yes
Grade Type: Performance
Inlet Gender: Female
Inlet Port Diameter: 10 An Orb
Inlet Port Quantity: 1.0
Inlet Type: 10 An Orb
Material: Aluminum
Maximum Pressure: 9 Pounds per Square Inch
Minimum Pressure: 4.5 Pounds per Square Inch
Mounting Bracket Included: Yes
Mounting Type: Inline
Outlet Gender: Female
Outlet Port Diameter: 8 An Orb
Outlet Port Quantity: 2.0
Outlet Size: 8 An O-Ring
Outlet Type: 8 An Orb
Port Quantity: 2.0
Pressure Range: 4.5-9 PSI
Rebuildable: Yes
Style: Non-Return
Warranty: Manufacturer's Limited 90 Day Warranty
