Billet Bypass Fuel Pressure Regulator Kit Pressure Range 4.5-9 PSI Fittings and Gauge Included - Holley - 12-841KIT

Holley Billet Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-841 regulator features a billet aluminum body and a black finish for corrosion resistance and good looks.

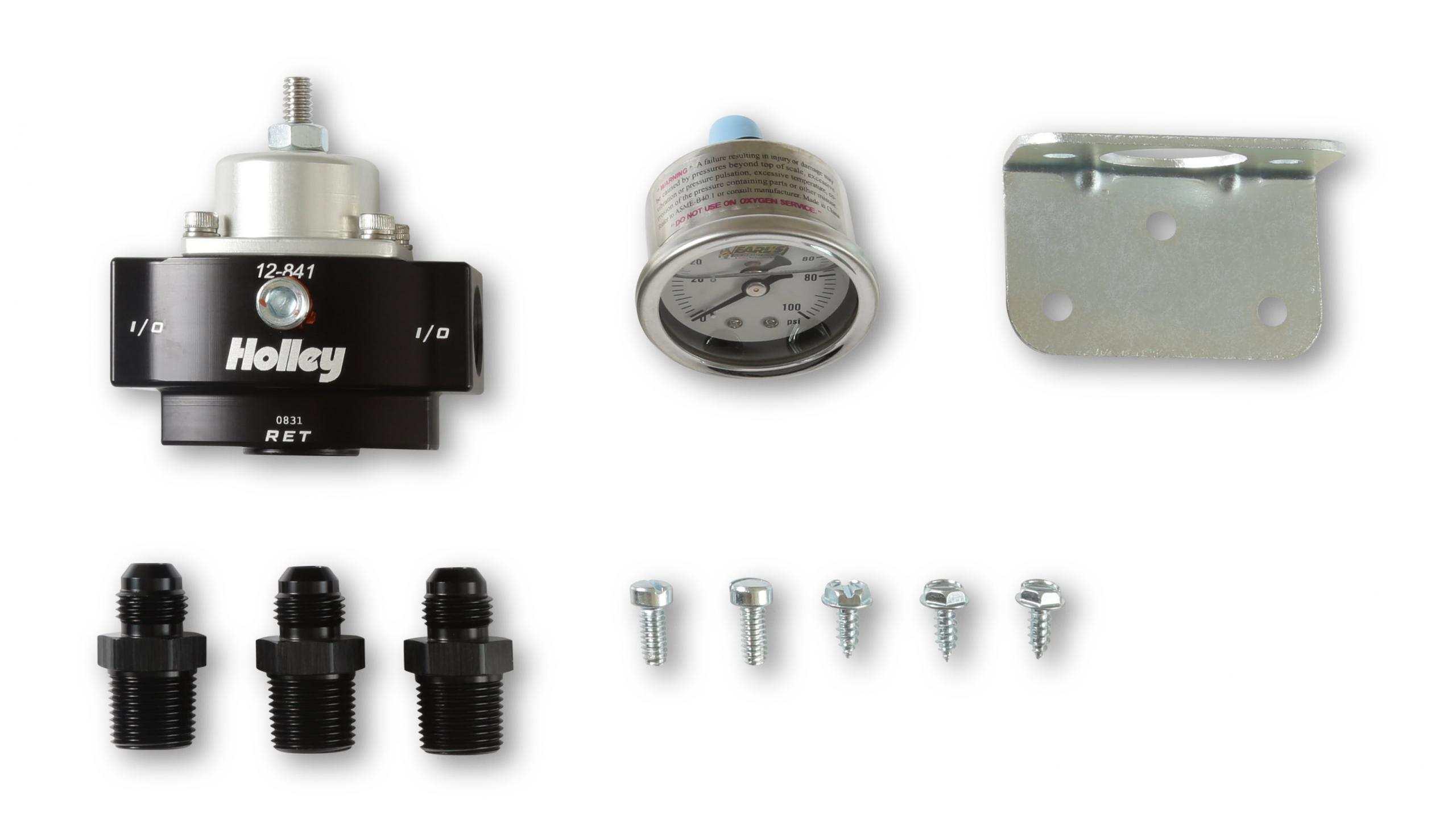

The regulator contains 3/8 inch NPT in/out ports, a 3/8 inch NPT return port, a 1/8 inch NPT gauge port. In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included.

Features and Benefits:


Adjustable from 4.5-9 psi for precise fuel pressure adjustments Used in return style systems with a line back to the fuel tank 3/8 inch NPT Ports 1/8 inch NPT Gauge Port and Earl's Fuel Pressure Gauge (100187ERL) Fuel Gauge and adapter fittings included Mounting Bracket Included


Details:


Adjustable: Yes

Color: Black

Fuel Type: Gasoline

Fuel System: Carbureted

Gauge Port: Yes

Grade Type: Performance

Inlet Port Diameter: 3/8 Inch

Inlet Quantity: 1

Inlet Size: 3/8 inch NPT

Inlet Type: NPT

Material: Aluminium

Maximum Pressure Reading: 15 Pounds per Square Inch

Mounting Hardware Included: Yes

Mounting Type: Inline

Outlet Port Diameter: 3/8 Inch

Outlet Quantity: 2

Outlet Size: 3/8 inch NPT

Outlet Type: NPT

Port Quantity: 3.0

Pressure Range: 4.5-9 PSI

Return Size: 3/8 inch NPT

Style: Bypass

Warranty: Manufacturer's Limited 90 Day Warranty
