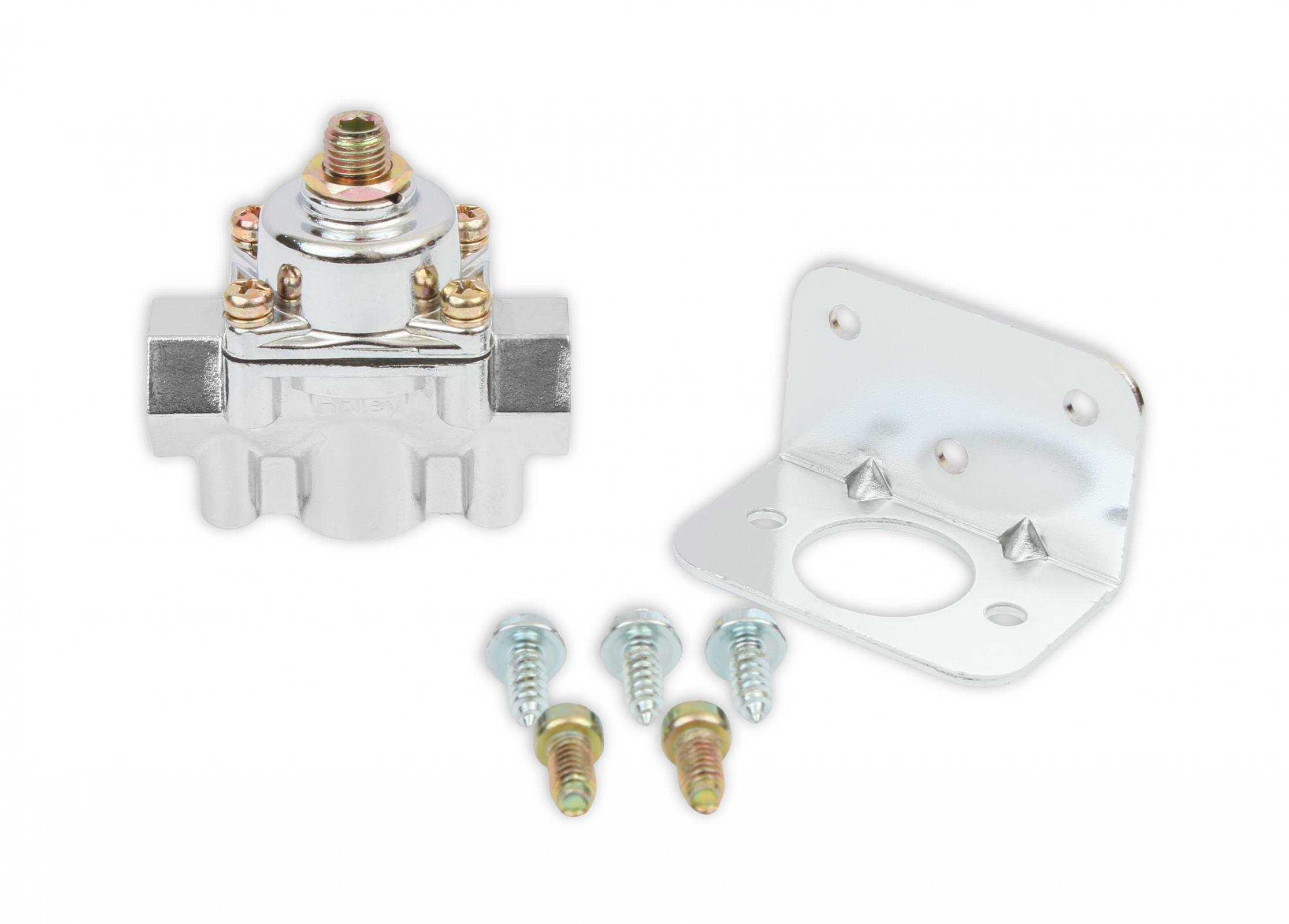

Chrome Carbureted Fuel Pressure Regulator Street/strip Carbureted Applications Two Port Adjustable from 1 to 4 PSI - Holley - 12-804

Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems.

Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory at 2.8 PSI so there is no guesswork when first installing the regulator.

The Holley 12-804 fuel pressure regulator features 3/8 inch NPT in/out ports. The inlet pressure limitation is 7 psi.

Features and Benefits:


Adjustable fuel regulation from 1 to 4 psi .220 inch (7/32 inch) restriction 3/8 inch NPT ports ( 1 inch, 2 out) Chrome finish Mounting bracket included Pre-set at 2.8 PSI


Associated Comments:


Pre-set at 2.8 PSI The inlet pressure limitation is 7 psi.


Details:


Adjustable: Yes

Color: Shiny

Fuel Type: Gasoline

Fuel System: Gasoline

Gauge Included: No

Gauge Port Included: Yes

Grade Type: Performance

Inlet Gender: Female

Inlet Port Diameter: 3/8 Inch

Inlet Port Quantity: 1.0

Inlet Size: 3/8 inch NPT

Inlet Type: NPT

Material: Aluminum

Maximum Pressure: 4 Pounds per Square Inch

Minimum Pressure: 1 Pounds per Square Inch

Mounting Bracket Included: Yes

Mounting Type: Inline

Outlet Gender: Female

Outlet Port Diameter: 3/8 Inch

Outlet Port Quantity: 2.0

Outlet Size: 3/8 inch NPT

Outlet Type: NPT

Port Quantity: 2.0

Pressure Range: 1-4 PSI

Rebuildable: Yes

Style: Non-Return

Warranty: Manufacturer's Limited 90 Day Warranty
