HolleySKU: BSD-HLY-12-707
Billet Carbureted Fuel Pressure Regulator Street/strip Carbureted Applications Four Port Adjustable from 4.5 to 9 PSI - Holley - 12-707
Description
Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems.
Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory so there is no guesswork when first installing the regulator.
The Holley 12-707 fuel pressure regulator features 1 -8 inlet & 4 -6 outlet ports.
Features and Benefits:

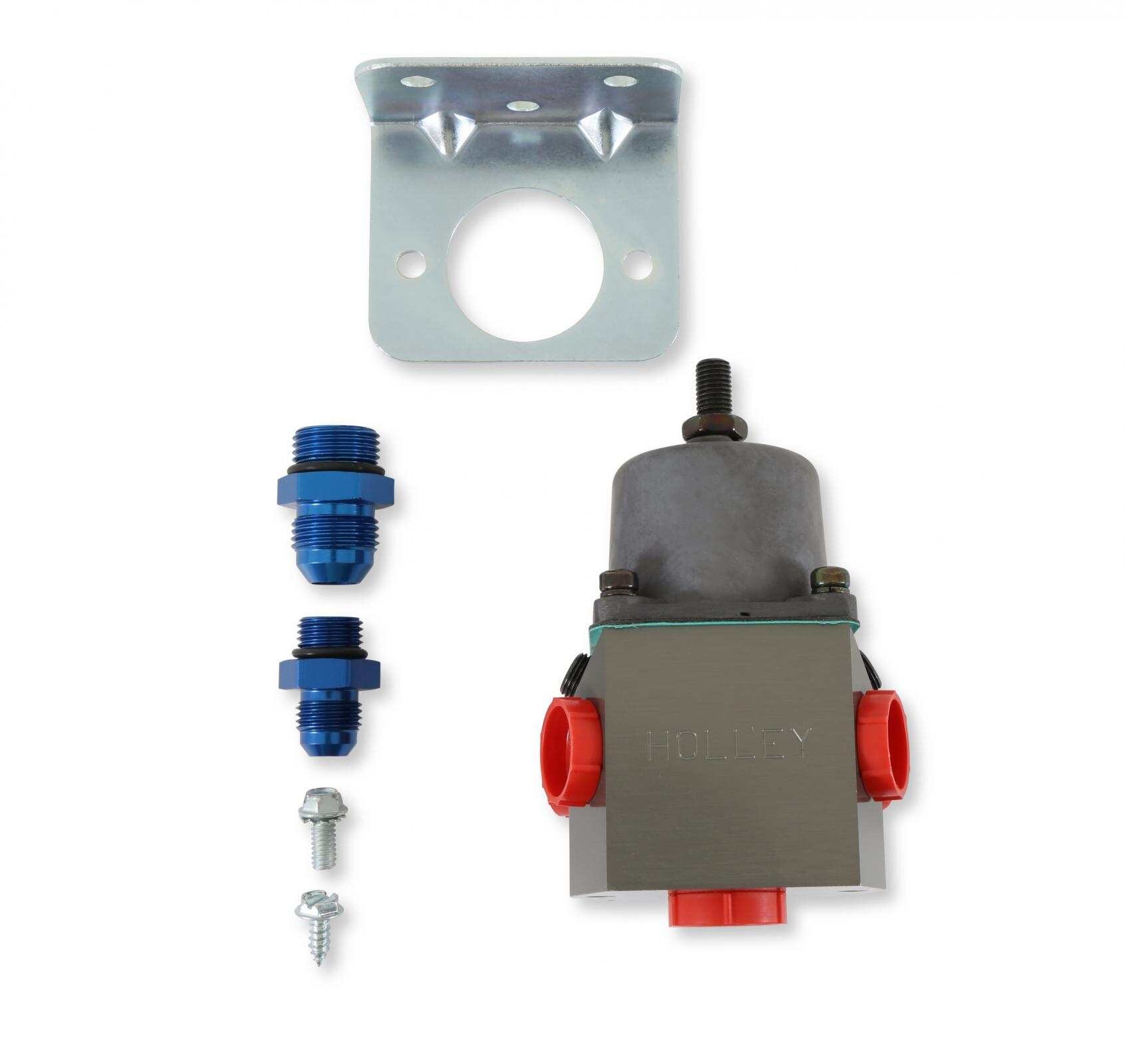

Adjustable fuel regulation from 4-1/2 to 9 psi One -8 inlet port and four -6 outlet ports .437 inch (7/16 inch) restriction Aluminum billet body and top casting cover are hard coat anodized for corrosion resistance Three fuel pressure gauge mounting options (fuel pressure gauge not included) Includes mounting hardware and An fittings Compatible for use with gasoline and methanol/alcohol
Associated Comments:
Regulator is compatible with Diesel #1 and Diesel #2.
Details:
Adjustable: Yes
Color: Hard Coat Anodized
Fuel Type: Diesel | Gasoline
Fuel System: Gasoline
Gauge Included: Yes
Gauge Port Included: Yes
Grade Type: Performance
Inlet Gender: Male
Inlet Port Diameter: 8 An
Inlet Port Quantity: 1.0
Inlet Size: 8 An O-Ring
Inlet Type: 8 An
Material: Aluminum
Maximum Pressure: 9 Pounds per Square Inch
Minimum Pressure: 4.5 Pounds per Square Inch
Mounting Type: Inline
Outlet Gender: Male
Outlet Port Diameter: 6 An
Outlet Port Quantity: 4.0
Outlet Size: 6 An O-Ring
Outlet Type: 6 An
Port Quantity: 5.0
Pressure Range: 4.5-9 PSI
Rebuildable: Yes
Style: Non-Return
Warranty: Manufacturer's Limited 90 Day Warranty
