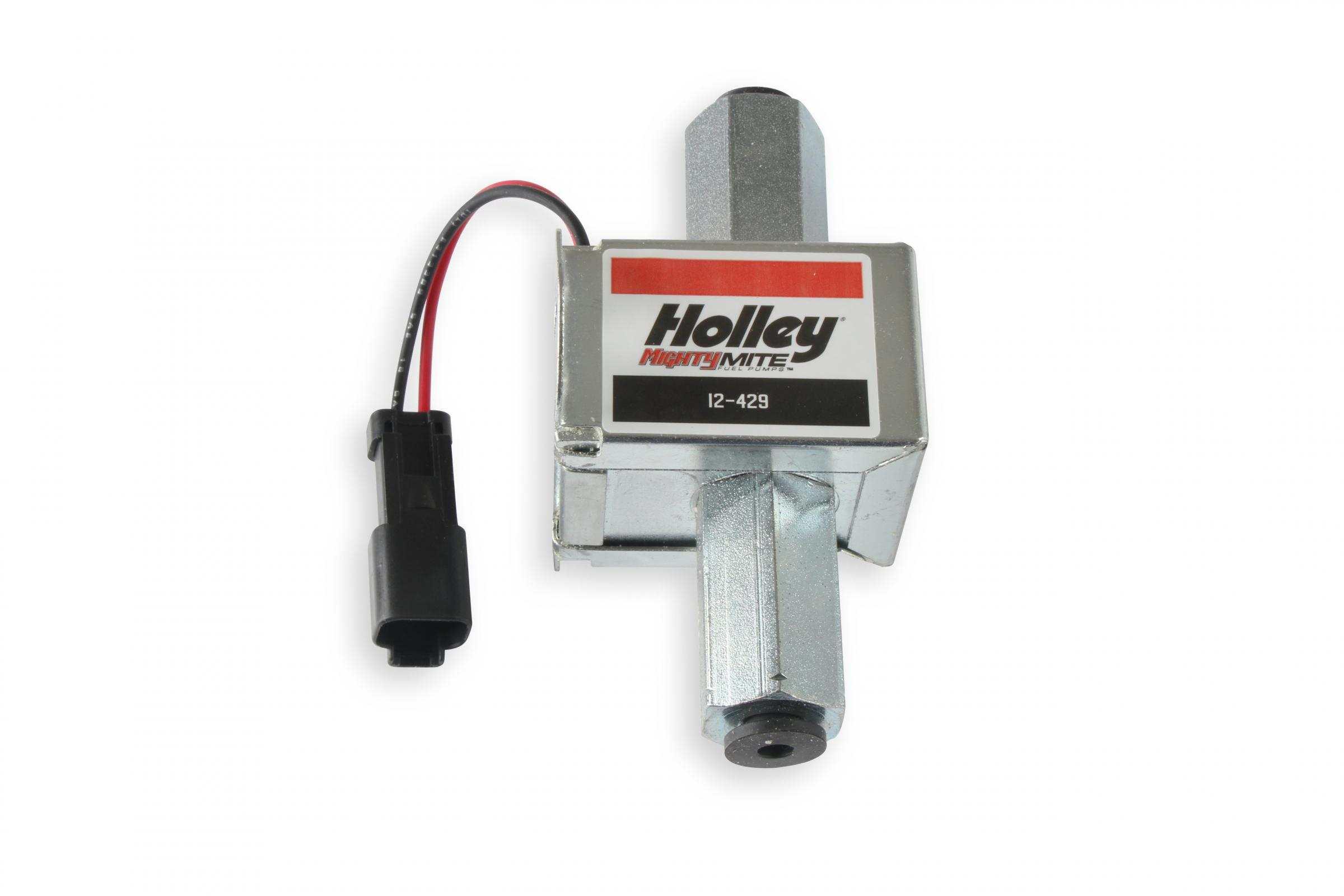

50 GPH Mighty MITE Electric Fuel Pump, 12-15 PSI Street, Agriculture, and Construction Applications Compatible with All Fuels and Fuel Additives - Holley - 12-429

Pumps are designed for use on all low and high pressure carburetor equipped automobiles, trucks, vans, generators, agriculture, gasoline and diesel engines, marine, construction and agriculture utility equipment. The 12 volt pumps perform in a 12-15 psi range at 50 Gph.

Can be used as a lift / priming pump for most diesel engines. Compatible with all fuels and additives.

These pumps can be a perfect Oe replacement for any of your equipment. Rugged solid state design pumps are a simple two wire hook-up and made in the USA.

A regulator may be needed for carbureted applications requiring less fuel pressure. We recommend the Holley 12-803 or 12-804 fuel pressure regulator.

Overall dimensions- 4 inchx 3 inchx 3 inch

Features and Benefits:


60 inch Dry lift/ 12-15 PSI / 50 Gph Self-Priming and Self-Regulating Compatible with gasoline, diesel, bio diesel, E85, blended alcohol and fuel additives Operating temperature range of -40F to + 180F Ul Certified Meets Coast Guard Ignition Protection Test Requirements 33CFR183.410 and Fire and Thermo Shock Test Requirements 33CFF183.590 Corrosion resistant over 100 hours of salt spray


Associated Comments:


Pump must be properly fused with a 3- to 5-Amp automotive-type fuse.


Details:


Application: Universal

Color: Silver

Free Flow Gph: 50

Fuel Type: Diesel | E85 | Gasoline

Fuel Delivery Type: Carburetor

Fuel Sending Unit Included: No

Fuel System: Carbureted

Gasket Or Seal Included: No

Grade Type: Performance

Inlet Fitting Thread Size: 1/8 Inch

Inlet Thread: 1/8 Inch NPT

Inlet Type: NPT

Internal Or External: External

Material: Steel

Maximum Flow Rating: 50 U.S. Gallons per hour

Maximum Pressure: 15 Pounds per Square Inch

Mounting Hardware Included: No

Negative Ground: Yes

Outlet Fitting Thread Size: 1/8 Inch

Outlet Quantity: 1

Outlet Thread: 1/8 Inch NPT

Outlet Type: NPT

Regulator Included: No

Strainer Included: No

Universal Or Specific Fit: Universal

Voltage: 12 Volts DC

Warranty: Manufacturer's Limited 90 Day Warranty

Wire Quantity: 2.0

Wiring Harness Included: No
