PUMP MODULE SYSTEM - Twin 450 LPH - Holley - 12-365

If you are looking to make some serious power with your 1999-2002 4th Gen F-body, the Holley modules feature billet pump flanges that connect to either single or dual 340 or 450 LPH pumps. All four of these options are compatible with gasoline and E85 and come pre-installed with new level and tank pressure sensors as well as provisions to connect to the factory EVAP system for EPA compliance. - Each module comes with all the parts and pieces necessary to complete the installation. Included is a 3" x 11" Hydramat filter that leverages surface tension to draw from nearly any area that has contact with fuel eliminating starvation under hard acceleration or cornering. Also included is a new fuel pump gasket, wiring pigtails for the level sender and fuel pump, and fittings to connect to the factory quick connect feed and return lines. The modules are all return style, so don't forget to pick up an EFI pressure regulator (such as the 19-392 or 19-395) to complete your installation. - Part numbers in this series: - Part #: 12-362 - Single 340LPH Pump Module - Part #: 12-363 - Single 450LPH Pump Module - Part #: 12-364 - Twin 340LPH Pump Module - Part #: 12-365 - Twin 450LPH Pump Module - For 1999-2002 4th Gen F-Body plastic fuel tanks. Will not work with 1993-1998 metal tanks.

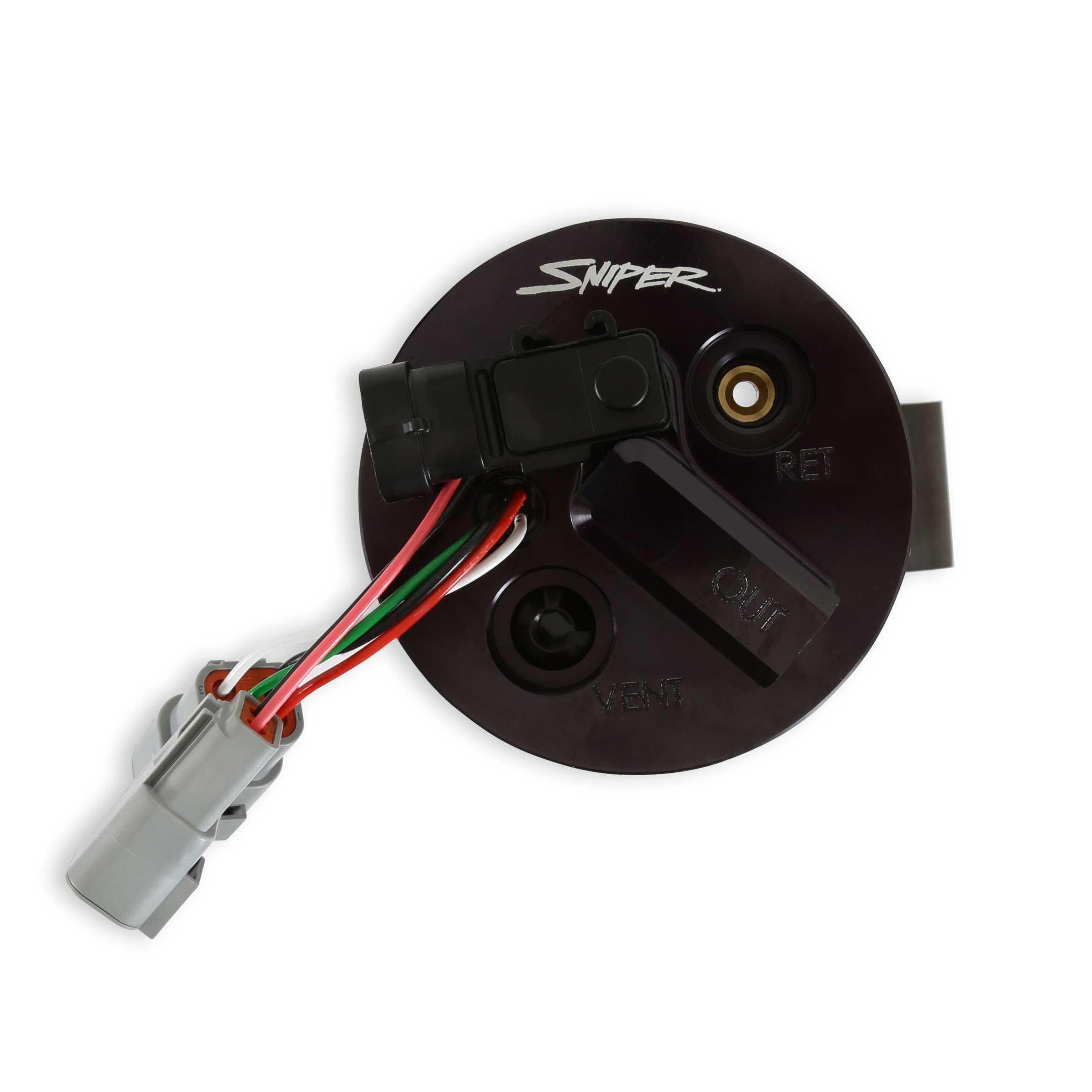

Twin 450LPH Fuel Pump Module for 900LPH of total flow capacity - Anodized and laser-etched billet 6061-T6 flange with 6AN ORB ports for feed, return, and vent - Compatible with Gasoline AND E85 - Comes pre-installed with new pre-calibrated fuel level (33 – 240 Ω) and tank pressure sensors - Includes new gasket to complete installation - 3 x 11-inch HydraMat is included for each pump - Fittings included allowing connection to the factory 3/8 quick connect feed and return lines - Flanges have been designed to be compatible with feed and return line sizes up to -8AN - Step-down butt connectors included to wire level sensor - Can be connected to factory EVAP system (w/ use of 12-874 and 935056ERL - sold separately) - Kit includes vehicle pigtail harness - All connectors used are DTM style - Fits factory plastic tank used in LS1 99-02 Camaro / Firebird or an earlier 4th Gen F-body with 99+ plastic fuel tank upgrade - check compatibility before purchase - Will not fit 93-98 metal tank.
part type: Fuel Pump Module Assembly | Brand: Holley | Material: Billet Alluminum 6061-T6 | Finish: Anodized Black

Detailed Fitment Results
Year Make Model Sub Model 1999 Chevrolet Camaro Base / Z28 / Z28 SS 1999 Pontiac Firebird Base / Formula / Trans Am 2000 Chevrolet Camaro Base / Z28 / Z28 SS 2000 Pontiac Firebird Base / Formula / Trans Am 2001 Chevrolet Camaro Base / Z28 / Z28 SS 2001 Pontiac Firebird Base / Formula / Trans Am 2002 Chevrolet Camaro Base / Z28 / Z28 SS 2002 Pontiac Firebird Base / Formula / Trans Am
