PUMP Module System TWIN 340 LPH Fits 1998-2002 Camaro / Firebird Twin 340 LPH Pump Module - Holley - 12-364

If you are looking to make some serious power with your 1998-2002 4th Gen F-body, the Holley modules feature billet pump flanges that connect to either single or dual 340 or 450 Lph pumps. All four of these options are compatible with gasoline and E85 and come pre-installed with new level and tank pressure sensors as well as provisions to connect to the factory Evap system for Epa compliance.

Each module also comes with all the parts and pieces necessary to complete the installation. Included is a 3 x 11-inch Hydramat filter that leverages surface tension to draw from nearly any area that has contact with fuel eliminating starvation under hard acceleration or cornering.

Also included is a new fuel pump gasket, wiring pigtails for the level sender and fuel pump, and fittings to connect to the factory quick connect feed and return lines. The modules are all return style, so don't forget to pick up an EFI pressure regulator (such as the 19-392 or 19-395) to complete your installation.

Part numbers in this series: Part #: 12-362 - Single 340LPH Pump Module Part #: 12-363 - Single 450LPH Pump Module Part #: 12-364 - Twin 340LPH Pump Module Part #: 12-365 - Twin 450LPH Pump Module

Features and Benefits:

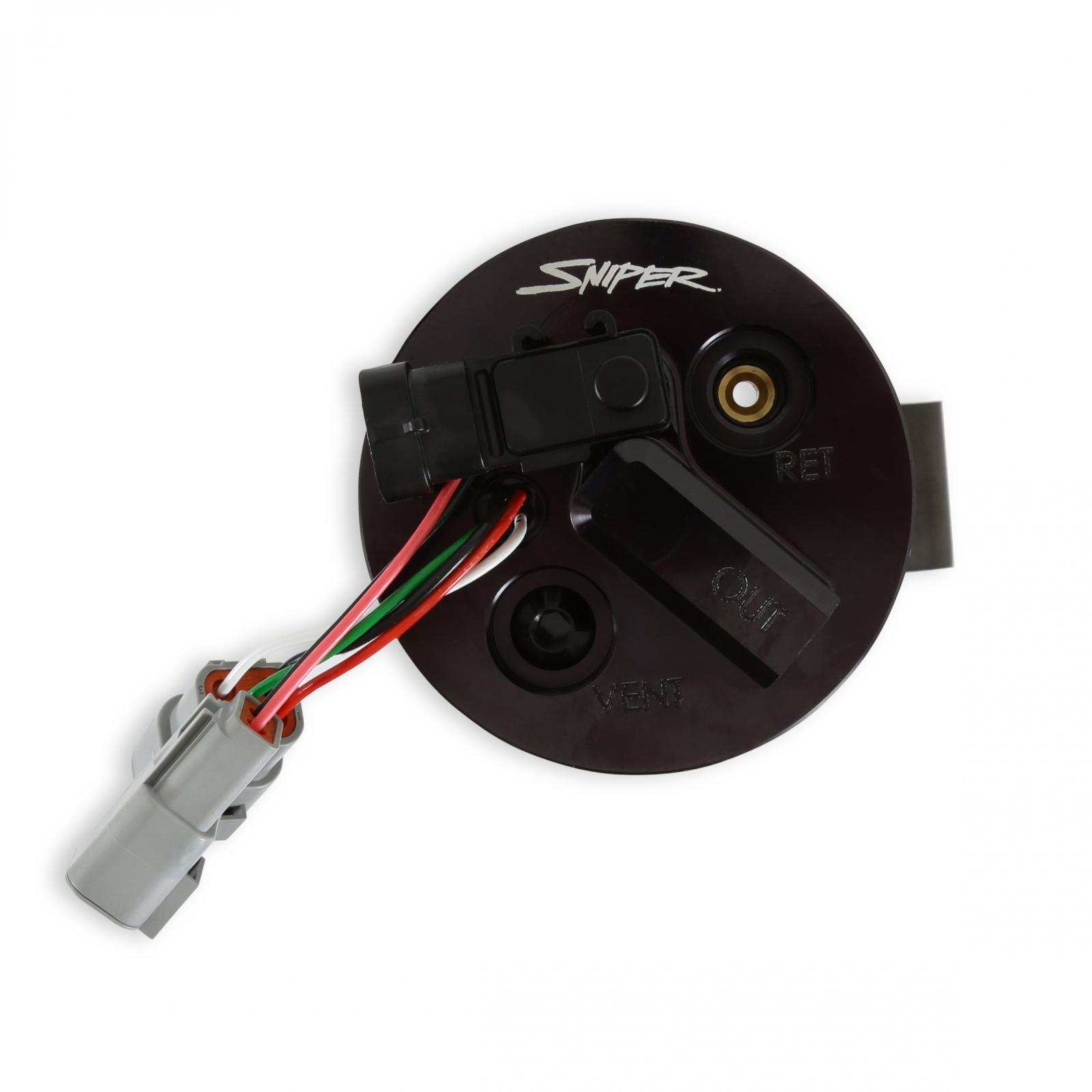

Anodized and laser-etched billet 6061-T6 flange with 6AN Orb ports for feed, return, and vent All SKUs compatible with Gasoline And E85 Comes pre-installed with new pre-calibrated fuel level (33 - 240 ?) and tank pressure sensors Includes new gasket to complete installation A 3 x 11-inch HydraMat is included for each pump Fits factory plastic tank used in LS1 98-02 Camaro / Firebird or an earlier 4th Gen F-body with fuel tank upgrade Fittings included allowing connection to the factory 3/8 quick connect feed and return lines Flanges have been designed to be compatible with feed and return line sizes up to -8AN Step-down butt connectors included to wire level sensor Can be connected to factory Evap system (w/ use of 12-874 and 935056ERL - sold separately) Kit includes vehicle pigtail harness - All connectors used are Dtm style


Associated Comments:


Drive the vehicle until the level in the tank is at or below 1/8 of a tank. To make tank removal and reinstall as easy as possible, the lower the fuel level the better.


Details:


Average Current Draw: 29 Ampere

Average Flow Rating: 680 Liters per Hour

Connector Color: Gray

Connector Gender: Female

Connector Quantity: 2.0

Finish: Anodized Black

Free Flow Gph: 216

Free Flow Lph: 820

Fuel Type: Gasoline/E85 Compatible

Fuel Filter Included: Yes

Fuel Sending Unit Included: Yes

Fuel System: EFI

Fuel Tank Pressure Sensor Included: Yes

Gasket Or Seal Included: Yes

Gasket Or Seal Material: Rubber

Grade Type: Performance

Height: Standard

Housing Material: Aluminum

In Tank or External: In Tank

Inlet Quantity: One

Inlet Size: 6 An Orb

Inlet Type: 6 An Orb

Internal Or External Strainer: External

Lock Ring Included: No

Material: Billet Alluminum 6061-T6

Maximum Pressure: 60 Pounds per Square Inch

Mounting Hardware Included: Yes

Negative Ground: Yes

Outlet Quantity: One

Outlet Size: 6 An Orb

Outlet Type: 6 An Orb

Pump Type: Electric

Regulator Included: No

Resistance Ohms Empty: 33 Ohm

Resistance Ohms Full: 240 Ohm

Single Or Dual Pump: Dual

Universal Or Specific Fit: Specific

Voltage: 12 Volts DC

Warranty: Manufacturer's Limited 90 Day Warranty

Wire Quantity: 4.0
