DUAL 340 LPH PUMP Module System 2010-2015 Camaro Dual 340 LPH Pump Module - Holley - 12-350

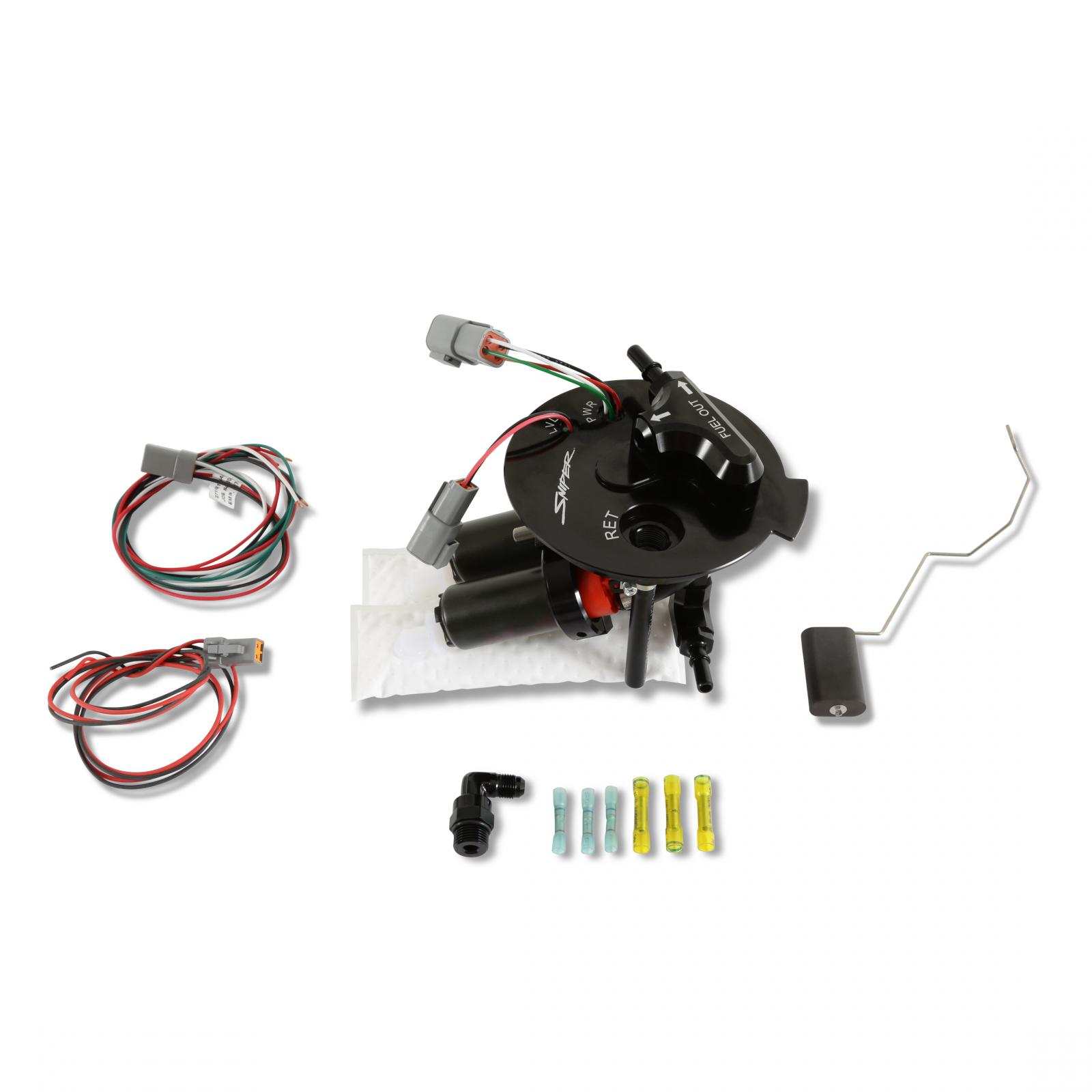

If you are adding nitrous or boost to your 2010-2015 Camaro race car, Holley has the fuel pump upgrades for you! The fuel pump module design starts with a billet pump flange assembly and connects it to dual 340 or 450 Lph fuel pumps for maximum fuel delivery of gasoline or E85.

The fuel pump module design starts with a billet pump flange assembly and connects it to dual 340 or 450 Lph fuel pumps for maximum fuel delivery. The module also includes two HydraMats to eliminate fuel starvation under hard acceleration or cornering.

The Integrated Jet pump assembly allows retention of factory drivers side fuel pickup. A new level sensor is included and pre-installed.

Installation is as simple as removing factory module and replacing with Holley module. Outlet fitting included to connect to factory feed line.

Secondary Orb port machined into flange for easy An plumbing of feed line if you so desire. The module is a return style only so a regulator such as the 12-895 will be needed to complete the return portion of your system.

The dual 340 Lph module will support up to 1400 HP while the dual 450 Lph will support up to 1750 HP.

Features and Benefits:


-8AN Orb inlets and outlets (return fitting included) Dual 340 (1400 hp) @ 60 psi at 13.5 volts / 14.5 amp draw Two HydraMats, one for each pump Integrated jet pump assembly allows retention of factory drivers side fuel pickup Have been tested to deliver stable fuel pressure down to low fuel indicator warning light Brand new level sensor included and pre-installed

Installation is as simple as removing factory module and replacing with Holley module Outlet fitting included to connect to factory feed line

Secondary Orb port machined into flange for easy An plumbing of feed line Module is return style only so a regulator must be installed Machined, billet, anodized, laser etch components for durability and good looks


Details:


Average Current Draw: 29 Ampere

Average Flow Rating: 680 Liters per Hour

Connector Color: Gray

Connector Gender: Female

Connector Quantity: 2.0

Free Flow Gph: 180

Free Flow Lph: 680

Fuel Type: Gasoline/E85 Compatible

Fuel Filter Included: Yes

Fuel Sending Unit Included: Yes

Fuel System: EFI

Fuel Tank Pressure Sensor Included: No

Gasket Or Seal Included: No

Grade Type: Performance

Height: Standard

Housing Material: Aluminum

In Tank or External: In Tank

Inlet Quantity: One

Internal Or External Strainer: External

Lock Ring Included: No

Material: Billet Aluminum and Steel

Maximum Pressure: 60 Pounds per Square Inch

Mounting Hardware Included: Yes

Negative Ground: Yes

Outlet Quantity: 2

Outlet Type: Factory Quick Connect | Orb

Pump Body Color: Silver

Pump Type: Electric

Regulator Included: No

Resistance Ohms Empty: 40 Ohm

Resistance Ohms Full: 250 Ohm

Universal Or Specific Fit: Specific

Voltage: 12 Volts DC

Warranty: Manufacturer's Limited 90 Day Warranty

Wire Harness Included: Yes

Wire Quantity: 6.0
