Description

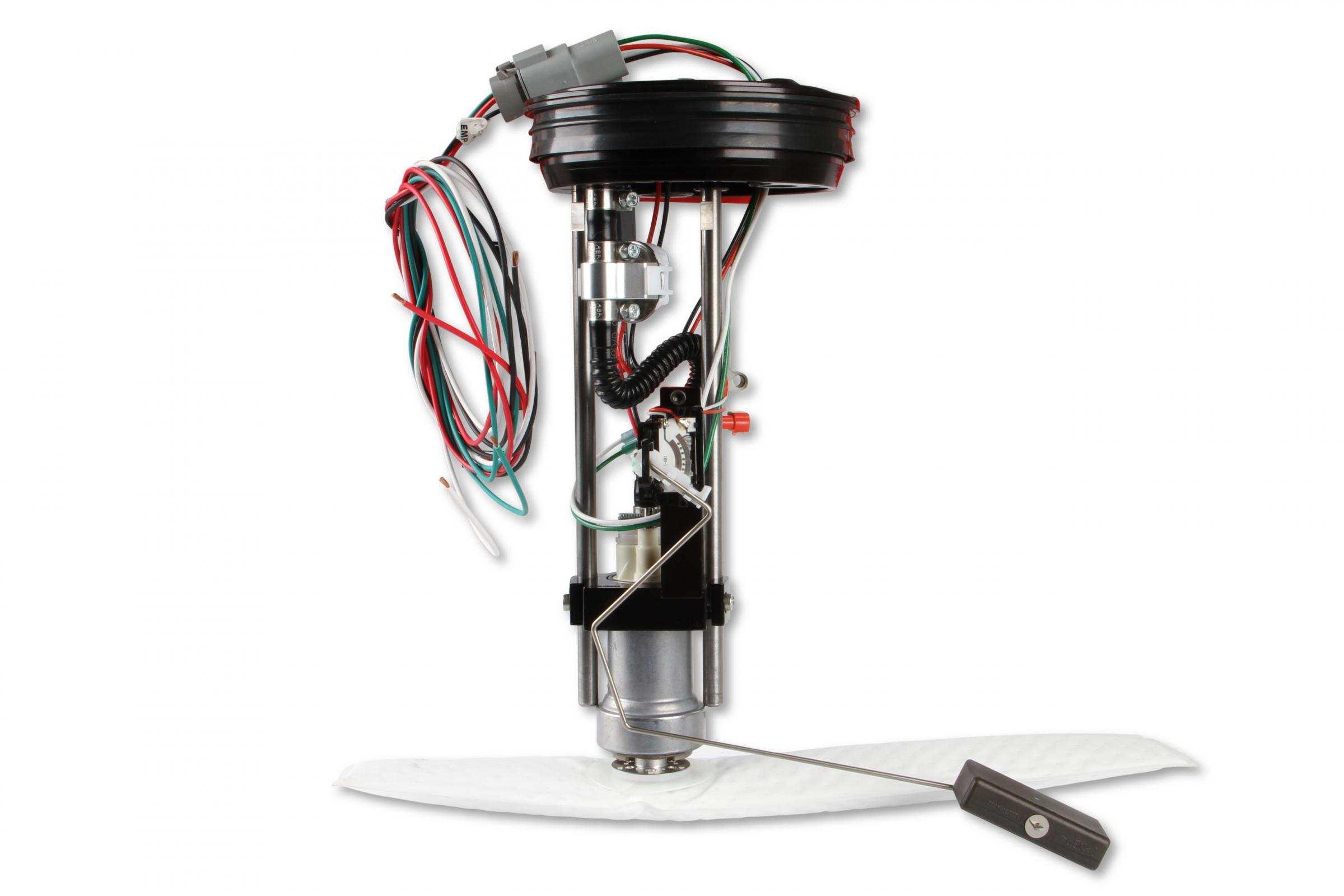

Update the fuel system in your Dodge truck with a high performance in-tank EFI fuel pump module. These fuel modules fit inside the factory tank & feature a billet aluminum flange, Hydramat, fuel sending unit, and high performance pump.
Choose from 255 or 450 Lph (liters per hour) fuel flow & return style or returnless design. The amazing HydraMat is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells.
During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution!
Direct Fit in the following Vehicles: 1997-2004 Dodge Dakota (2WD & 4WD) 1998 Dodge B1500/B2500/B3500 (Full Size Vans) 1999-2003 Dodge Ram 1500 Van/Ram 2500 Van/Ram 3500 Van (Full Size Vans) 1998-2003 Dodge Ram 1500/Ram 2500/Ram 3500 (2WD & 4WD Full Size Pickups) 1999-2001 Dodge Ramcharger (2WD & 4WD - Mexico Only) 1998-2003 Dodge Durango (2WD & 4WD)
Features and Benefits:
High Performance In-Tank EFI Fuel Pump Modules for 1991-2004 Dodge Trucks Billet Aluminum Flange, Clamp & Fuel Level Sender Black Anodized Finish Choose from 255 or 450 Lph (liters per hour) Pump Adjustable for Tank Depth Choose from Return Style or Returnless Fuel Module Provisions for Evap (Evaporative Emission Control System) - See the Installation Notes Inlets & Outlet Ports: -8 An O-Ring Boss New Fuel Level Sender Included Optional Fill Vent Built Into Billet Aluminum Top - See the Installation Notes Includes Hydramat - 3 inch x 15 inch Fits in Stock Factory Fuel Tanks Ideal for Use In Gen Iii Hemi Engine Swaps
Associated Comments:
Filler Neck Vent - Some vehicles will have a 3/4 inch filler neck vent line that goes to the flange on the fuel module. If this is the case for your vehicle, you will need to purchase the following Earl's fittings: AT949013ERL and AT700113ERL.
Evap Line - Some vehicles will have a small Evap hose that goes to the flange on the fuel module. If you wish to retain this, the following parts will need to be purchased: AT984204ERL, and 12-874.
Thread sealant with Ptfe will also be needed - Use Earl's # D024ERL.
Details:
AMP Draw: 22.0
Application: 1998-2004 Dodge Trucks
Average Current Draw: 22 Ampere
Average Flow Rating: 450 Liters per Hour
Connector Color: Gray
Connector Quantity: 1.0
Forced Induction HP at 60PSI: 750.0
Free Flow Gph: 139
Free Flow Lph: 450
Fuel Type: E85 | Gasoline
Fuel Filter Included: Yes
Fuel Sending Unit Included: Yes
Fuel Sending Unit Ohms: 220-20 Ohms
Fuel System: EFI
Fuel Tank Pressure Sensor Included: No
Gph at 60PSI: 100.0
Gasket Or Seal Included: Yes
Gasket Or Seal Material: Rubber
Grade Type: Performance
Height: Adjustable
Housing Material: Aluminum
In Tank or External: In Tank
Inlet Quantity: One
Inlet Type: 8 An Orb
Internal Or External Strainer: External
Lock Ring Included: No
Material: Billet Aluminum and Steel
Naturally Aspirated HP at 60PSI: 1000.0
Outlet Quantity: One
Outlet Size: 8 An
Outlet Type: 8 An Orb
Pump Body Color: Silver
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 220 Ohm
Resistance Ohms Full: 20 Ohm
Returnless: Yes
Universal Or Specific Fit: Specific
Voltage: 12 Volts DC
Warranty: Manufacturer's Limited 90 Day Warranty
Wire Harness Included: Yes
Wire Quantity: 4.0
