255 LPH Pump Module - Returnless - Holley - 12-323

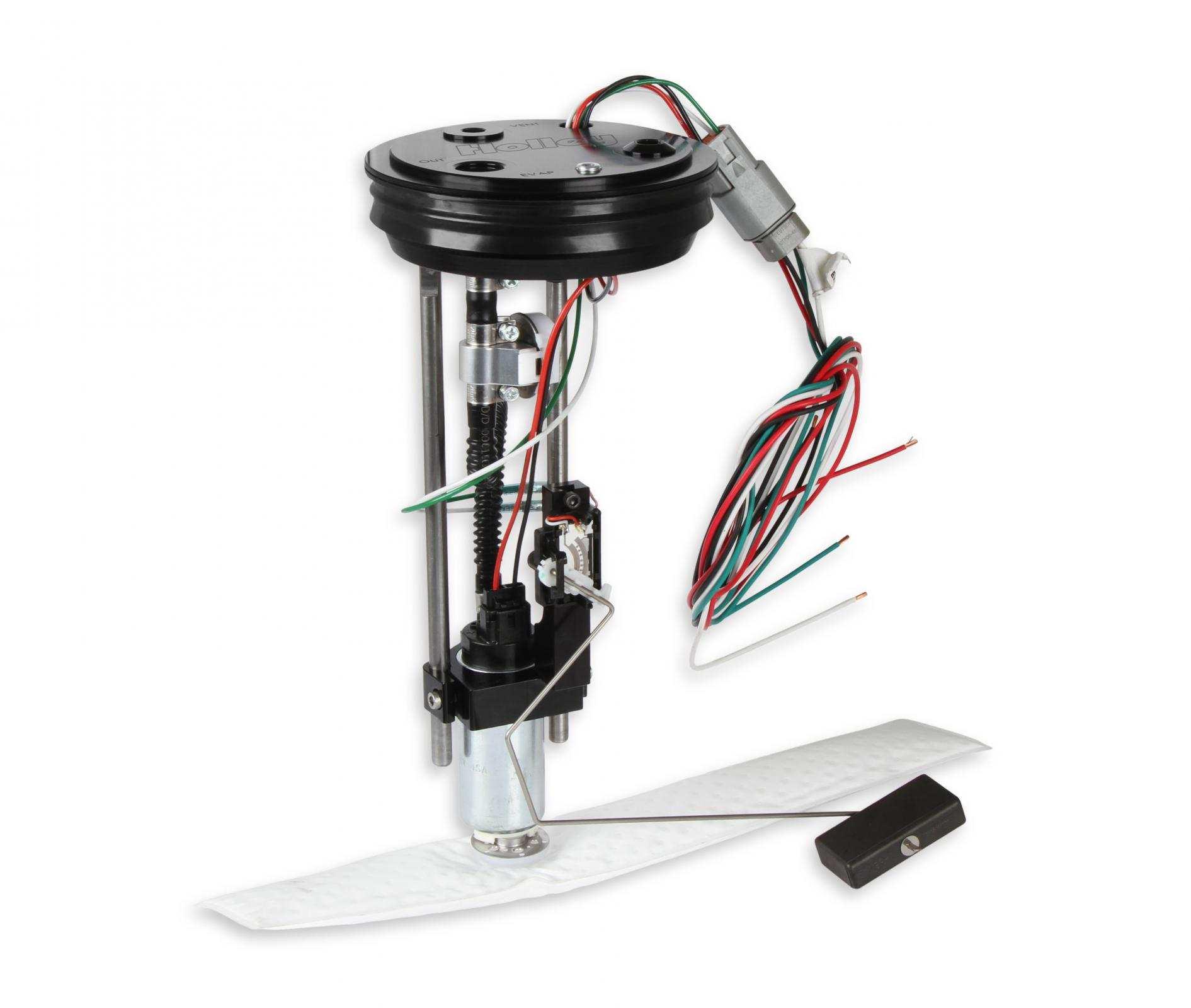

Update the fuel system in your Dodge truck with a high performance in-tank EFI fuel pump module. These fuel modules fit inside the factory tank & feature a billet aluminum flange, Hydramat, fuel sending unit, and high performance pump.

Choose from 255 or 450 Lph (liters per hour) fuel flow & return style or returnless design. The amazing HydraMat is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells.

During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution!

Direct Fit in the following Vehicles: 1997-2004 Dodge Dakota (2WD & 4WD) 1998 Dodge B1500/B2500/B3500 (Full Size Vans) 1999-2003 Dodge Ram 1500 Van/Ram 2500 Van/Ram 3500 Van (Full Size Vans) 1998-2003 Dodge Ram 1500/Ram 2500/Ram 3500 (2WD & 4WD Full Size Pickups) 1999-2001 Dodge Ramcharger (2WD & 4WD - Mexico Only) 1998-2003 Dodge Durango (2WD & 4WD)

Features and Benefits:


High Performance In-Tank EFI Fuel Pump Modules for 1991-2004 Dodge Trucks Billet Aluminum Flange, Clamp & Fuel Level Sender Black Anodized Finish Choose from 255 or 450 Lph (liters per hour) Pump Adjustable for Tank Depth Choose from Return Style or Returnless Fuel Module Provisions for Evap (Evaporative Emission Control System) - See the Installation Notes Inlets & Outlet Ports: -8 An O-Ring Boss New Fuel Level Sender Included Optional Fill Vent Built Into Billet Aluminum Top - See the Installation Notes Includes Hydramat - 3 inch x 15 inch Fits in Stock Factory Fuel Tanks Ideal for Use In Gen Iii Hemi Engine Swaps


Associated Comments:


Filler Neck Vent - Some vehicles will have a 3/4 inch filler neck vent line that goes to the flange on the fuel module. If this is the case for your vehicle, you will need to purchase the following Earl's fittings: AT949013ERL and AT700113ERL.

Evap Line - Some vehicles will have a small Evap hose that goes to the flange on the fuel module. If you wish to retain this, the following parts will need to be purchased: AT984204ERL, and 12-874.

Thread sealant with Ptfe will also be needed - Use Earl's # D024ERL.


Details:


AMP Draw: 18.0

Application: 1998-2004 Dodge Trucks

Average Current Draw: 18 Ampere

Average Flow Rating: 255 Liters per Hour

Connector Color: Gray

Connector Quantity: 1.0

Forced Induction HP at 60PSI: 450.0

Free Flow Gph: 67

Free Flow Lph: 255

Fuel Type: Gasoline

Fuel Filter Included: Yes

Fuel Sending Unit Included: Yes

Fuel Sending Unit Ohms: 220-20 Ohms

Fuel System: EFI

Fuel Tank Pressure Sensor Included: No

Gph at 60PSI: 60.0

Gasket Or Seal Included: Yes

Gasket Or Seal Material: Rubber

Grade Type: Performance

Height: Adjustable

Housing Material: Aluminum

In Tank or External: In Tank

Inlet Quantity: One

Inlet Size: 8 An O-Ring

Inlet Type: 8 An Orb

Internal Or External Strainer: External

Lock Ring Included: No

Material: Billet Aluminum and Steel

Naturally Aspirated HP at 60PSI: 600.0

Outlet Quantity: One

Outlet Size: 8 An

Outlet Type: 8 An Orb

Pump Body Color: Silver

Pump Type: Electric

Regulator Included: No

Resistance Ohms Empty: 220 Ohm

Resistance Ohms Full: 20 Ohm

Returnless: Yes

Universal Or Specific Fit: Specific

Voltage: 12 Volts DC

Warranty: Manufacturer's Limited 90 Day Warranty

Wire Harness Included: Yes

Wire Quantity: 4.0
