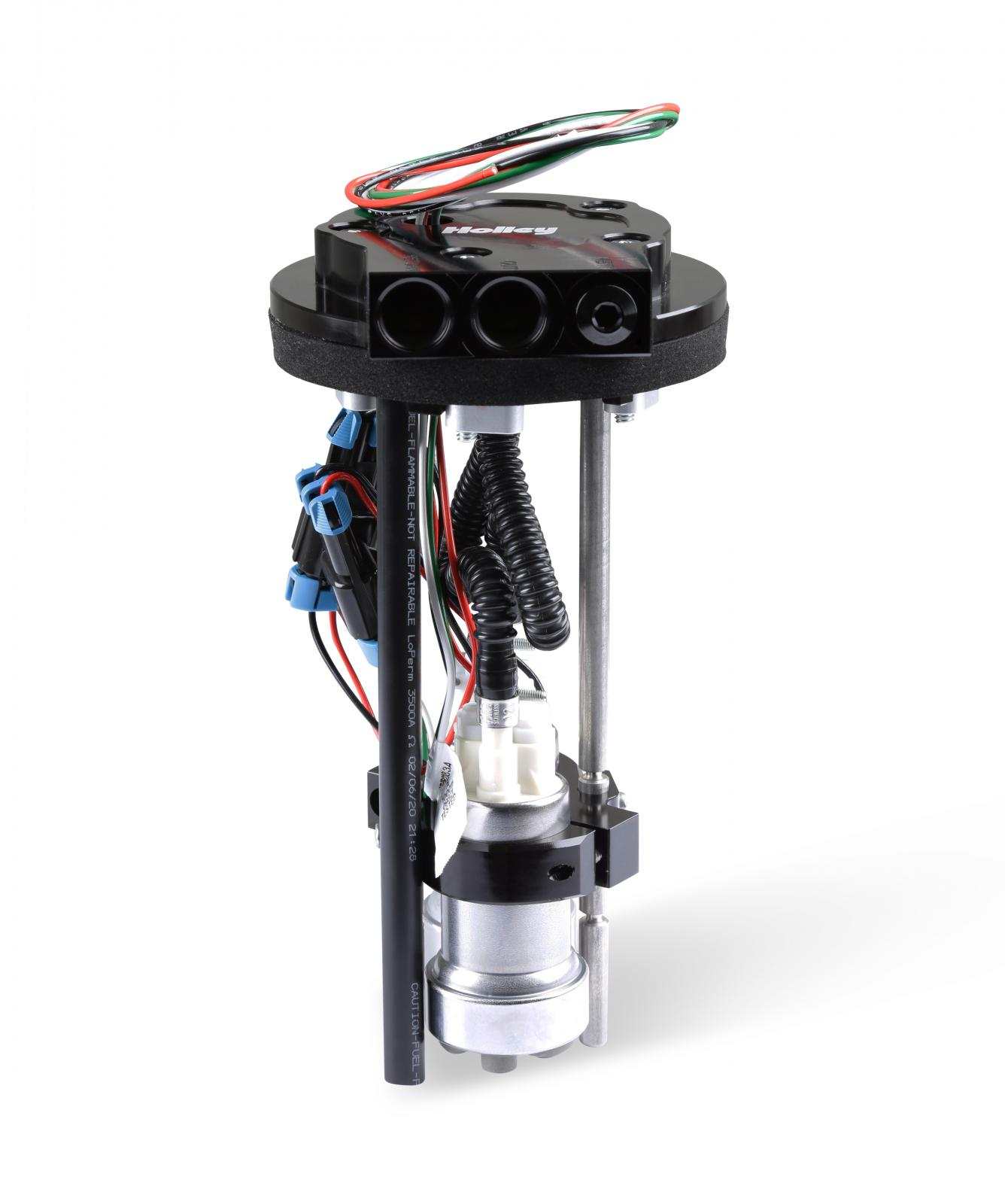

DUAL 450 LPH IN-TANK Retrofit FUEL Module W/return Dual 450 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports Up to 1700 EFI or 2200 CARB HP (HP Rating At 60 PSI at 13.5 Volts / 34 AMP Draw) - Holley - 12-173

Looking to make a serious step up in the horsepower department? The Holley Dual 450 Lph EFI Pump Module would be an excellent choice.

While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator. The innovative clamping system allows you to locate the module nearly anywhere in the tank while retaining your factory fuel level sending unit.

The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride. 12-173 - Twin 450 Lph - 34A @ 60 PSI, 30A @ 10 PSI EFI ?

(Gas, 13.5V, 60 PSI) - 1750 HP ? (E85, 13.5V, 60 PSI) - 1250 HP Carburetor ?

(Gas, 13.5V, 10 PSI) - 2200HP ? (E85, 13.5V, 10 PSI) - 1550 HP

Features and Benefits:


Billet, anodized, laser etched flanges with 8AN Orb Return/Outlet and 6AN Orb vent The innovative clamping system allows you to locate the module nearly anywhere in the tank while retaining your factory fuel level sending unit The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride Easy install - just drill a 4 inch hole in the top of the tank then use hand tools E85 compatible The dual pump design allows the pumps to be ran together or the second pump can be triggered additionally when you need it (Hobbs switch, Holley EFI auxiliary pump circuit, etc...) Units install in tanks from 7 inch - 12 inch deep Filter socks included, Hydramats can be purchased separately Easily wire with an Msd High Current Solid State Relay (75643, 75643-Hc, 7564, 7564-Hc) or dual relay kit (12-759)


Details:


Application: Universal

Average Current Draw: 34 Ampere

Average Flow Rating: 900 Liters per Hour

Connector Color: Black

Free Flow Lph: 900

Fuel Type: E85 | Gasoline

Fuel Filter Included: Yes

Fuel Sending Unit Included: No

Fuel Tank Pressure Sensor Included: No

Gasket Or Seal Included: Yes

Gasket Or Seal Material: Foam

Grade Type: Performance

Height: Adjustable

Housing Material: Aluminum

In Tank or External: In Tank

Inlet Quantity: One

Inlet Type: 8 An Orb

Internal Or External Strainer: External

Lock Ring Included: Yes

Material: Billet

Maximum Pressure: 60 Pounds per Square Inch

Minimum Fuel Tank Depth: 7 inches

Mounting Hardware Included: Yes

Negative Ground: Yes

Outlet Quantity: One

Outlet Type: 8 An Orb

Pump Type: Electric

Regulator Included: No

Top Mount Diameter: 4 Inch

Universal Or Specific Fit: Universal

Voltage: 12 Volts DC

Warranty: Manufacturer's Limited 90 Day Warranty

Wire Harness Included: Yes

Wire Quantity: 4.0
