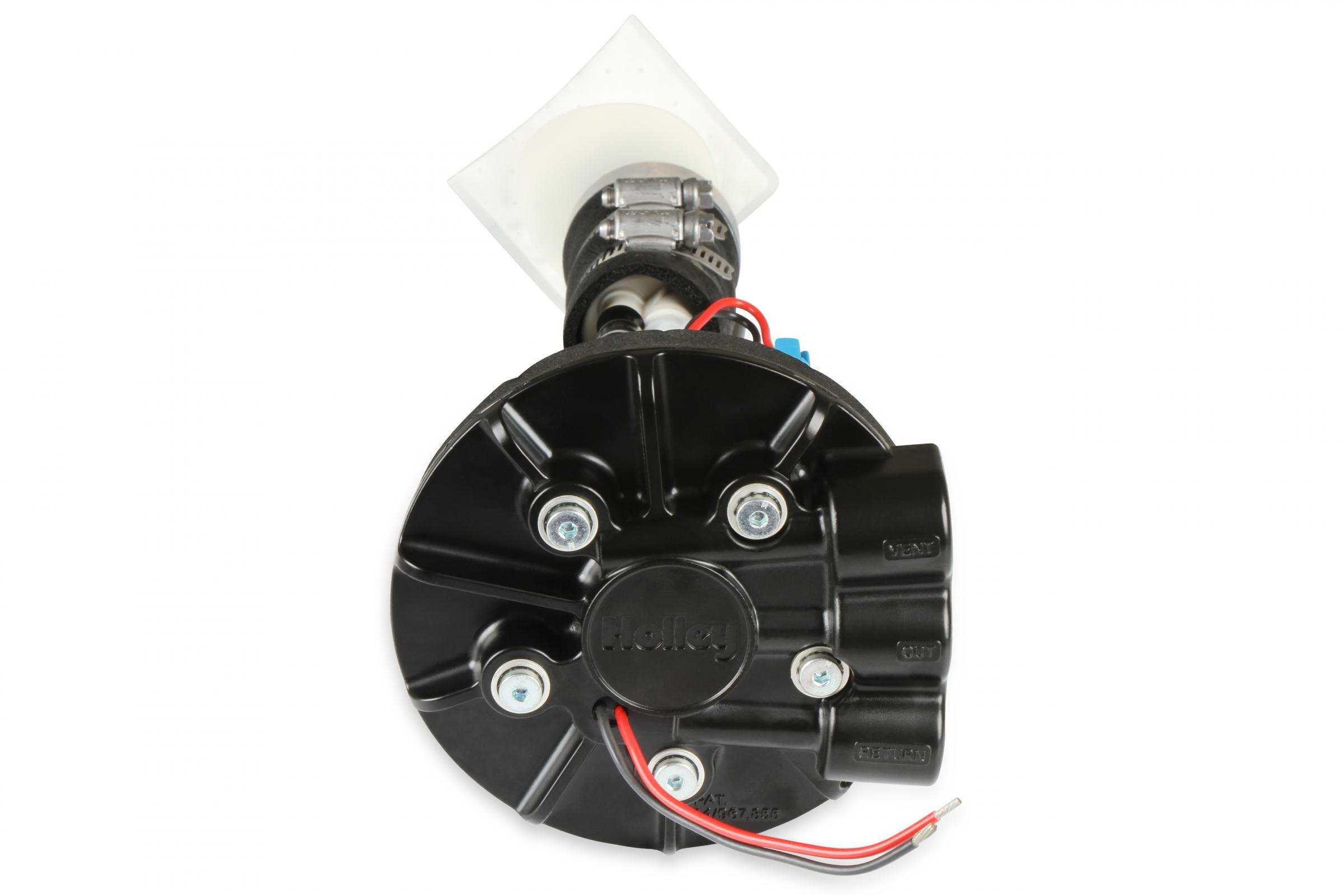

Diecast In-Tank Retrofit Fuel Module W/return 450 LPH Drop-In Retrofit EFI Fuel System Supports Up to 875 EFI or 1100 CARB HP - Holley - 12-171

Are you interested in an EFI retrofit kit, but just can't get past the complication of the fuel system? Available in return and returnless versions, you can rest assured Holley has the solution you need for your EFI fuel pump woes.

Now you can convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily! The conversion is easily accomplished with basic tools and requires no welding or fabrication.

The aluminum 5 inch diameter module design includes a die cast pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy.

Once installed, hook up your fuel lines and your power source/ground and you're off and running! No hassle!

Supports up to 875 EFI or 1100 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...

Features and Benefits:


The easiest way to convert your vehicle to an in-tank, EFI fuel system Installs in any fuel tank from 7.5 inch to 12 inch deep to fit a wide variety of applications The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride Die cast aluminum construction for corrosion resistance and long lasting good looks 14 inch NPT ports for a wide variety of plumbing options Ideal for Terminator EFI, Sniper EFI, Msd Atomic EFI or any Tbi of EFI conversion Optional roll over valve available Two different fuel pumps are available to match your requirements - 255LPH or 450LPH for both return and returnless style systems


Associated Comments:


It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. Maximum 6AN line and fitting size due to space limitations between unit and fuel tank.


Details:


Application: Universal

Average Current Draw: 16.9 Ampere

Average Flow Rating: 450 Liters per Hour

Connector Color: Black

Connector Quantity: 1.0

Diameter: 5

Free Flow Lph: 450

Fuel Type: E85 | Gasoline

Fuel Filter Included: Yes

Fuel Sending Unit Included: No

Fuel Tank Pressure Sensor Included: No

Gasket Or Seal Included: Yes

Gasket Or Seal Material: Foam

Grade Type: Performance

Height: Adjustable

Housing Material: Aluminum

In Tank or External: In Tank

Inlet Fitting Thread Size: 1/4 Inch

Inlet Quantity: One

Inlet Type: NPT

Internal Or External Strainer: External

Lock Ring Included: Yes

Material: Die Cast Aluminum

Maximum Pressure: 60 Pounds per Square Inch

Mounting Hardware Included: Yes

NPT Thread: 1/4 NPT

Negative Ground: Yes

Outlet Fitting Thread Size: 1/4 Inch

Outlet Quantity: One

Outlet Type: NPT

Pump Type: Electric

Regulator Included: No

Top Mount Diameter: 5 Inch

Universal Or Specific Fit: Universal

Voltage: 12 Volts DC

Warranty: Manufacturer's Limited 90 Day Warranty

Wire Harness Included: Yes

Wire Quantity: 2.0
