Fuel Cell Pump Module Assembly 6 Bolt Flange with VR Series Brushless Fuel Pumps Street/strip CARB or EFI Applications Supports Up to 4400 EFI or 4800 CARB HP Compatible with Pump Gas, Race Gas, Methanol and E85 - Holley - 12-143

Holley Fuel Cell EFI Pump Modules with dual Vr Series Brushless Fuel Pumps. These drop in modules come with two controllers and harnesses to give you Vr fuel pump power inside your fuel cell.

While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator. The modules were designed to drop in as a direct replacement for your existing 6 bolt flange fuel cell cap assembly.

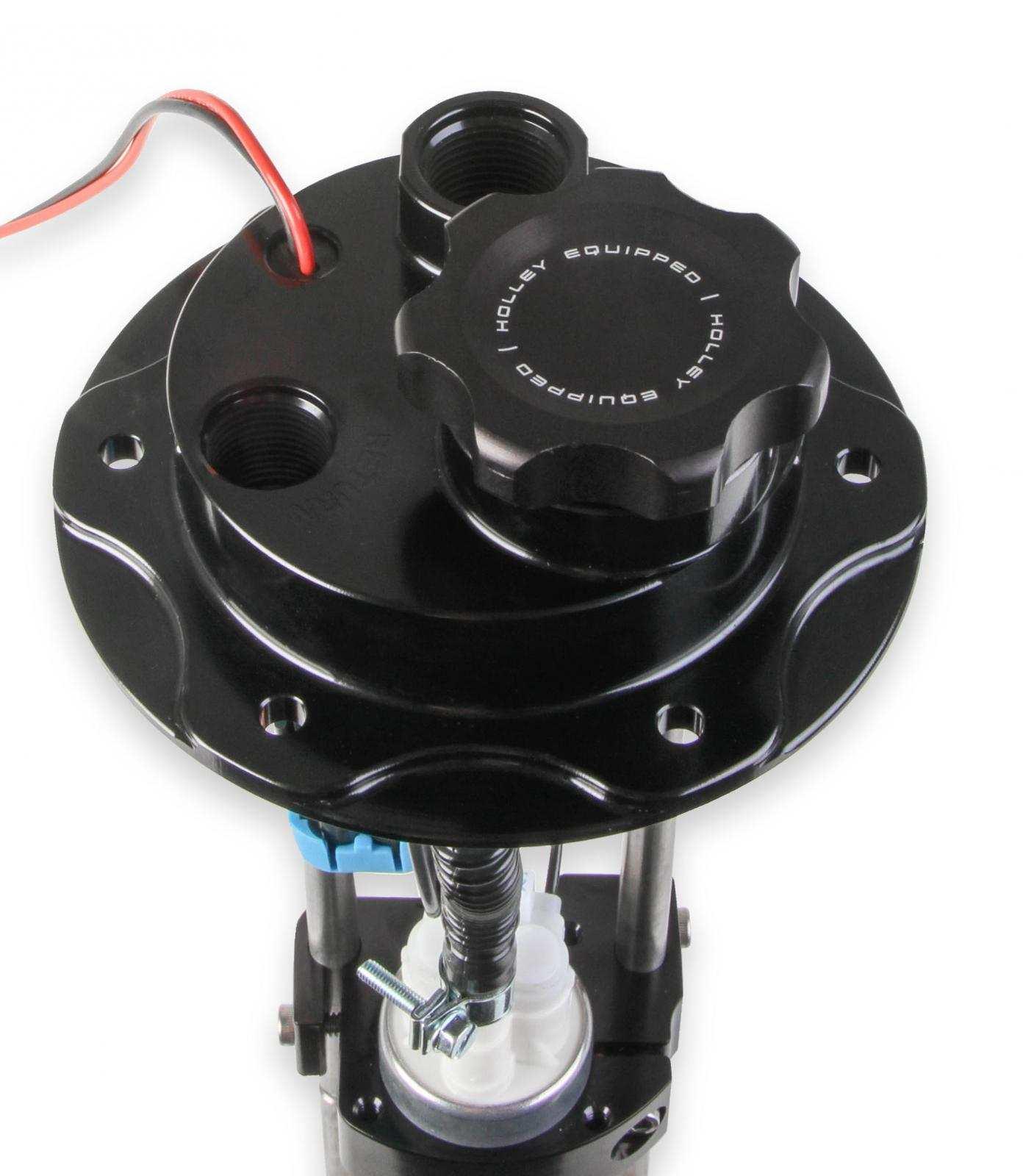

The billet top flange includes an 8AN inlet port, a 10AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5 inch to 12 inch deep.

The module kits include all the hardware to install into your existing fuel cell. All that you need to add is your fuel line.

Assembly fits common Rjs, Jaz, Summit, Jegs, Rci, Speedmaster and Speedway fuel cells. Designed to work on high boosted race cars as well as your daily driven weekend endurance car, these pumps work with gasoline, methanol, and E-85 (Compatible for methanol and E85 for competitive drag race use only- when draining and flushing after each race event) and can maintain pressures of 130 PSI and up to 335 Gph flow.

Fueled by Ti Automotive. The pumps include a 2 step controller for pump speed control.

The pumps can be ran in one of two different speeds. A low speed control for low fuel consumption requirements or at full speed for high fuel consumption requirements.

The VR2 includes (2) controllers for precise control of both pumps independently of each other. Both the VR1 and VR2 pumps are proven for 18.5V compatibility.

At 13.8V Overall pump dimensions: 9.5 inch Long; 4.75 inch Wide; 2.75 inch Tall

Features and Benefits:


Capable of 130 PSI while providing significant flow for forced induction applications where belt driven pumps are normally used

Unlike other pumps, the Vr Series are built for continuous duty if needed

Billet aluminum construction for durability and good looks Designed to drop right into your existing 6 bolt flange fuel cell High flow and high pressure with low amperage draw Can be fully submerged in the fuel cell or chassis mounted Maximum amp draw of 38 AMPS for the VR2 Modules include dual Vr Series Brushless fuel pumps with two step controller and harnesses.


Associated Comments:


Fill cap thread is 1 1/2 inch-12


Details:


Application: Universal

Average Flow Rating: 335 U.S. Gallons per hour

Connector Color: Gray

Flange Style: 6 Bolt

Free Flow Gph: 335 at 13.8 Volts

Free Flow Lph: Dual 644

Fuel Type: E85 | Gas | Gasoline | Methanol

Fuel Filter Included: Yes

Fuel Sending Unit Included: No

Fuel System: Carbureted | EFI

Fuel Tank Pressure Sensor Included: No

Gasket Or Seal Included: Yes

Gasket Or Seal Material: Cork

Grade Type: Performance

Height: Adjustable

Housing Material: Aluminum

In Tank or External: In Tank

Inlet Quantity: One

Inlet Size: 8 An O-Ring

Inlet Type: 8 An Orb

Internal Or External Strainer: External

Lock Ring Included: Yes

Material: Aluminum

Maximum Pressure: 130 Pounds per Square Inch

Mounting Hardware Included: Yes

Negative Ground: Yes

Outlet Quantity: One

Outlet Size: 10 An O-ring

Outlet Type: 10 An Orb

Pump Body Color: Black

Pump Type: Electric

Regulator Included: No

Single Or Dual Pump: Dual

Universal Or Specific Fit: Universal

Voltage: 12-18.5 Volts DC

Warranty: Manufacturer's Limited 90 Day Warranty

Wire Harness Included: Yes
