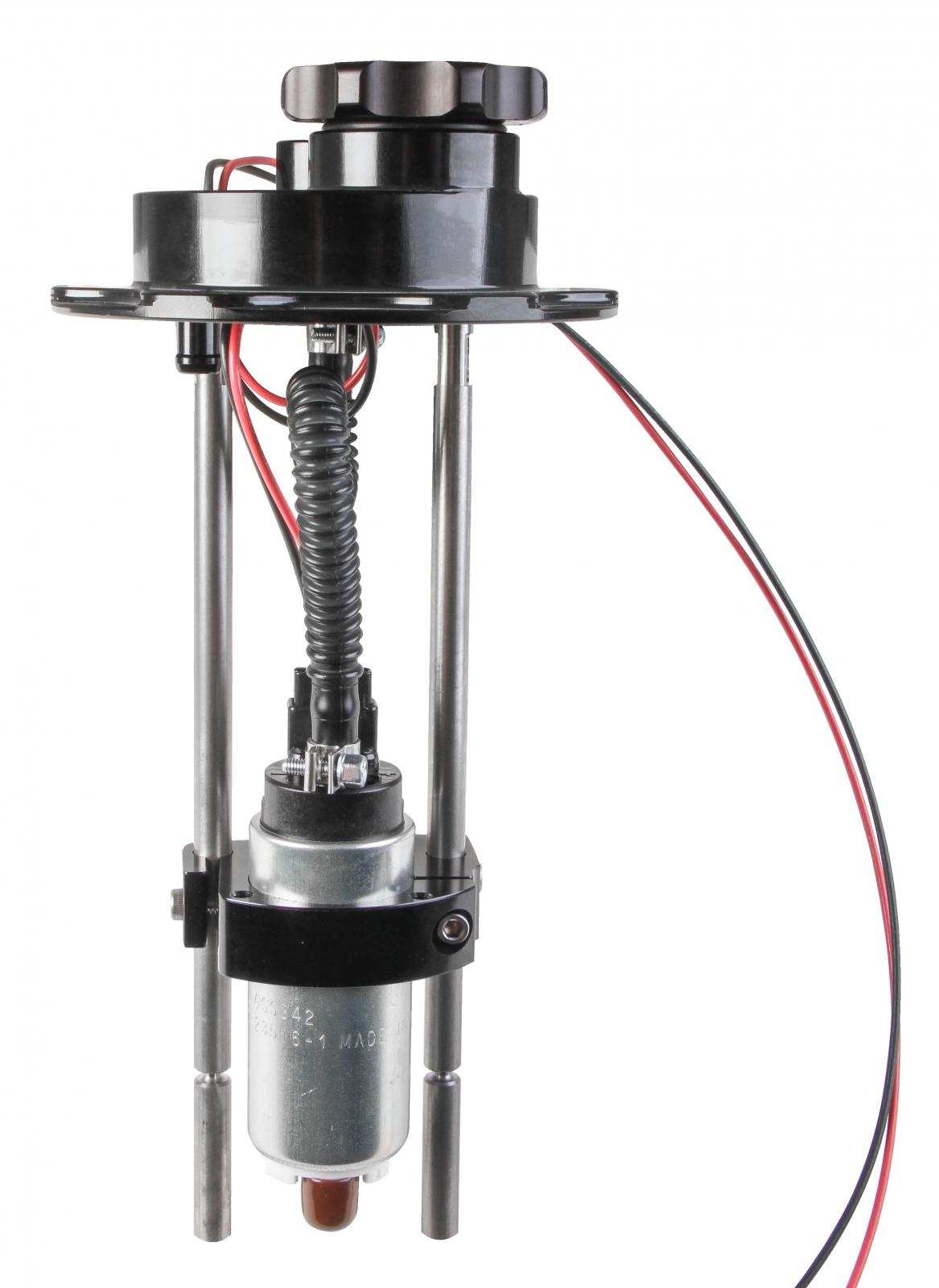

Fuel Cell EFI Pump Module Assembly 6-Bolt Flange 255 LPH Drop-In EFI - Holley - 12-139

Updating your racing fuel system to EFI is so simple! Holley is excited to introduce our Holley Fuel Cell EFI Pump Modules.

While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator. The modules were designed to drop in as a direct replacement for your existing 6 bolt flange fuel cell cap assembly.

The billet top flange includes an 8AN inlet port, a 10AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5 inch to 12 inch deep.

The EFI modules are available with single 255 Lph and 450 Lph fuel pumps. The module kits include all the hardware to install into your existing fuel cell.

All that you need to add is your fuel line. Assembly fits common Rjs, Jaz, Summit, Jegs, Rci, Speedmaster and Speedway fuel cells.

Supports up to 550 EFI or 700 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

Features and Benefits:


Update your fuel cell to EFI the easy way! Designed to drop right into your existing 6 bolt flange fuel cell Billet top flange housing includes an 8AN inlet and 10AN outlet port and a fuel filler cap Modules are available with 255 or 450 Lph fuel pumps in single pump configurations The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5 inch-12 inch deep

Supports up to 550 EFI or 700 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)


Associated Comments:


Fill cap thread is 1 1/2 inch-12


Details:


Application: Universal

Average Current Draw: 10.4 Ampere

Average Flow Rating: 255 Liters per Hour

Connector Color: Black

Connector Gender: Male

Connector Quantity: 1.0

Flange Style: 6 Bolt

Free Flow Gph: 67

Free Flow Lph: 255

Fuel Type: Gasoline

Fuel Filter Included: Yes

Fuel Sending Unit Included: No

Fuel Tank Pressure Sensor Included: No

Gasket Or Seal Included: Yes

Gasket Or Seal Material: Cork

Grade Type: Performance

Height: Adjustable

Housing Material: Aluminum

In Tank or External: In Tank

Inlet Quantity: One

Inlet Size: 8 An

Inlet Type: 8 An Orb

Internal Or External Strainer: External

Lock Ring Included: Yes

Max PSI: 80 PSI

Maximum Pressure: 60 Pounds per Square Inch

Mounting Hardware Included: Yes

Negative Ground: Yes

Outlet Quantity: One

Outlet Size: 10 An

Outlet Type: 10 An Orb

Pump Type: Electric

Regulator Included: No

Returnless: No

Single Or Dual Pump: Single

Universal Or Specific Fit: Universal

Voltage: 12 Volts DC

Warranty: Manufacturer's Limited 90 Day Warranty

Wire Harness Included: Yes

Wire Quantity: 2.0
