In-Tank Retrofit Fuel Module 525 LPH Returnless Style 525 LPH Drop-In Retrofit EFI Fuel System W/hydramat Supports Up to 1200 EFI or 1450 CARB HP (At 60 PSI at 13.5 Volts / 16.9 AMP Draw) - Holley - 12-135

The Holley In-tank RetroFit Fuel Modules are now available with a 525 Lph Pump. Convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily!

And- add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication.

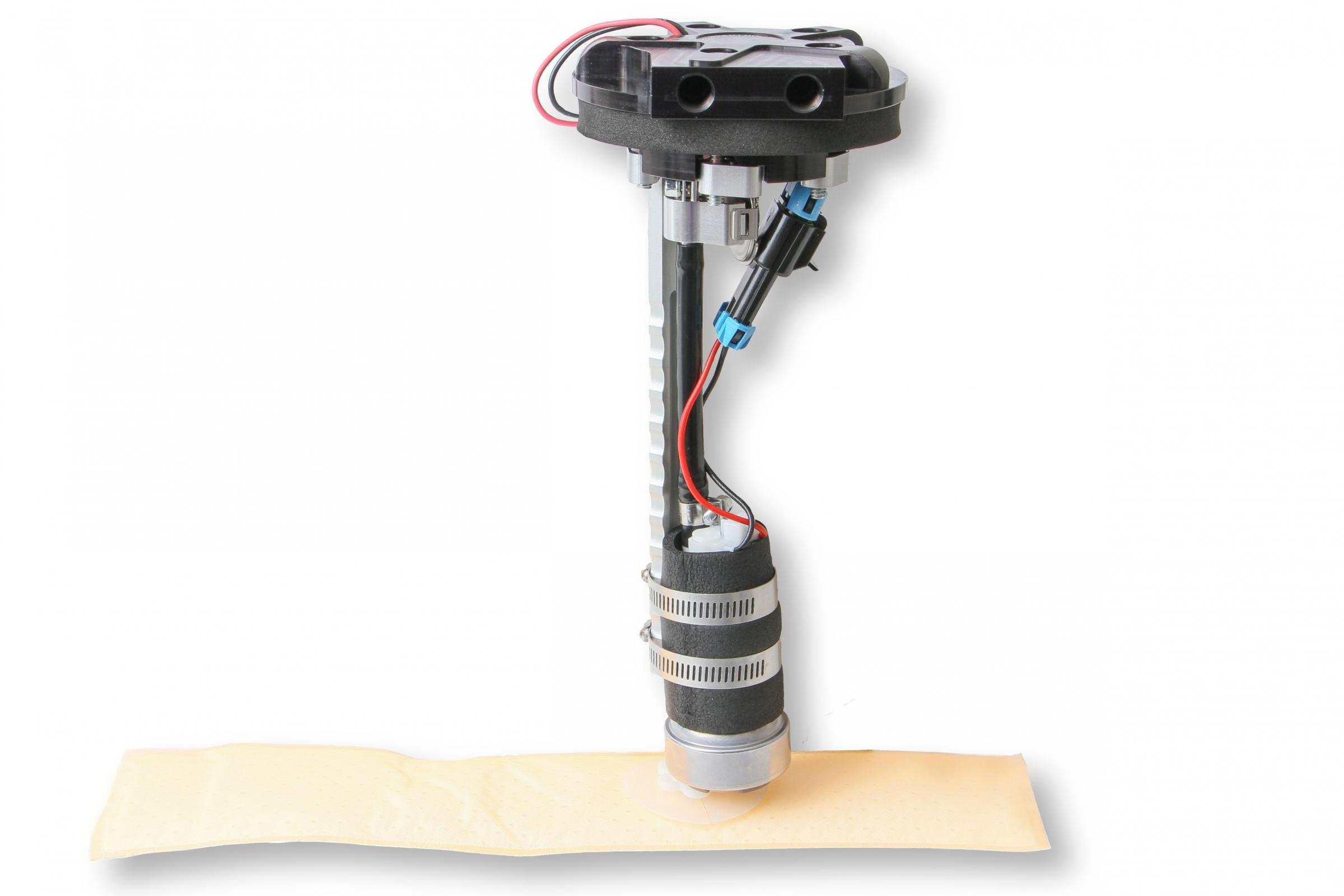

The billet aluminum module design includes a billet pump hanger bracket to control pump vibration while also providing a low profile 5 inch diameter design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy.

Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...

Features and Benefits:


Retrofit Fuel Module 525 Lph-Returnless Style Installs in any fuel tank from 8 inch to 12 inch deep to fit a wide variety of applications The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride Includes innovative Holley Hydramat to ensure consistent fuel supply

The 3 inch x 15 inch HydraMat mounting flange has 6 clocking pin locations to allow for 360 degree adjustment to clear sending unit levels or any tank floor restrictions Black anodized aluminum construction for corrosion resistance and long lasting good looks 14 inch NPT ports for a wide variety of plumbing options Optional roll over valve available


Associated Comments:


It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. Maximum 6AN line and fitting size due to space limitations between unit and fuel tank.


Details:


Application: Universal

Average Current Draw: 16.9 Ampere

Average Flow Rating: 525 Liters per Hour

Connector Color: Black

Connector Gender: Male

Connector Quantity: 1.0

Free Flow Lph: 525

Fuel Type: E85 | Gasoline

Fuel Filter Included: Yes

Fuel Sending Unit Included: No

Fuel Tank Pressure Sensor Included: No

Gasket Or Seal Included: Yes

Gasket Or Seal Material: Foam

Grade Type: Performance

Height: Adjustable

Housing Material: Aluminum

In Tank or External: In Tank

Inlet Fitting Thread Size: 1/4 Inch

Inlet Type: NPT

Internal Or External Strainer: External

Lock Ring Included: Yes

Material: Billet Aluminum

Maximum Pressure: 60 Pounds per Square Inch

Minimum Fuel Tank Depth: 8 Inches

Mounting Hardware Included: Yes

NPT Thread: 1/4 NPT

Negative Ground: Yes

Outlet Fitting Thread Size: 1/4 Inch

Outlet Quantity: One

Outlet Type: NPT

Pump Type: Electric

Regulator Included: Yes

Top Mount Diameter: 5 Inch

Universal Or Specific Fit: Universal

Voltage: 12 Volts DC

Warranty: Manufacturer's Limited 90 Day Warranty

Wire Harness Included: Yes

Wire Quantity: 2.0
