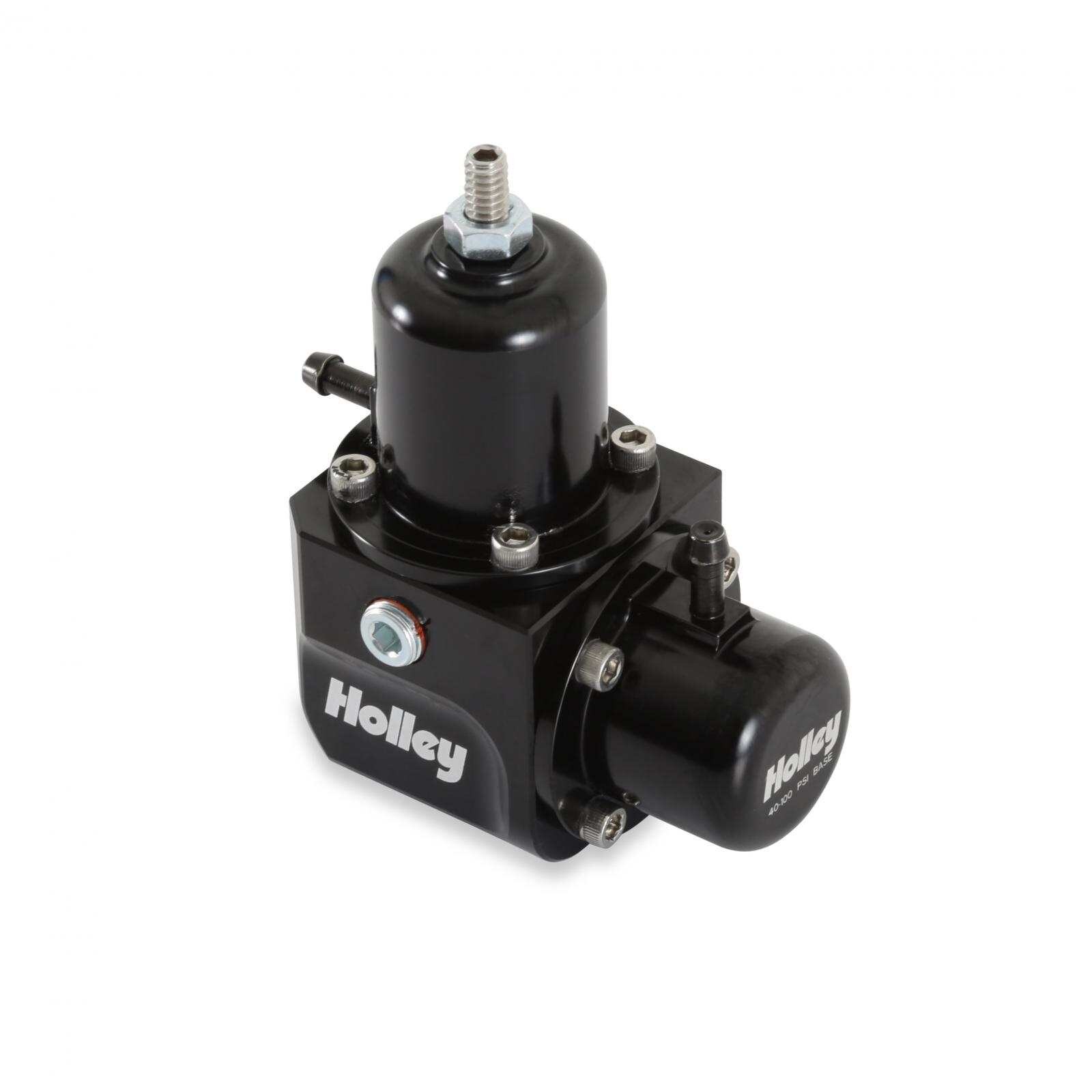

FUEL Regulator/damper Regulator/damper, Extended RANGE 40-100PSI - Holley - 12-1001

Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating.

These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine.

Features and Benefits:


Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm Fittings included for damper/regulator's and direct mount dampers 1/8 inch NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer Vacuum fitting and one foot of hose included with all dampers for vacuum referencing Assembled and tested in the USA


Details:


Adjustable: Yes

Finish: Anodized Black

Fuel Type: Gasoline / Ethanol / Methanol / E85

Gauge Included: No

Gauge Port Included: Yes

Grade Type: Performance

Inlet / Outlet Size: 3/4-16 Female O-Ring (An 8)

Inlet Gender: Female

Inlet Port Diameter: 8 An Orb

Inlet Port Quantity: 1.0

Inlet Type: 8 An Orb

Maximum Pressure: 100 Pounds per Square Inch

Minimum Pressure: 40 Pounds per Square Inch

Mounting Bracket Included: Yes

Mounting Type: Inline

Outlet Gender: Female

Outlet Port Diameter: 8 An Orb

Outlet Port Quantity: 1.0

Outlet Type: 8 An Orb

Port Quantity: 2.0

Pressure Range: 40-100 PSI

Rebuildable: Yes

Style: Billet Aluminum

Vacuum Port Quantity: 2.0

Warranty: Manufacturer's Limited 90 Day Warranty
