HolleySKU: BSD-HLY-12-1000

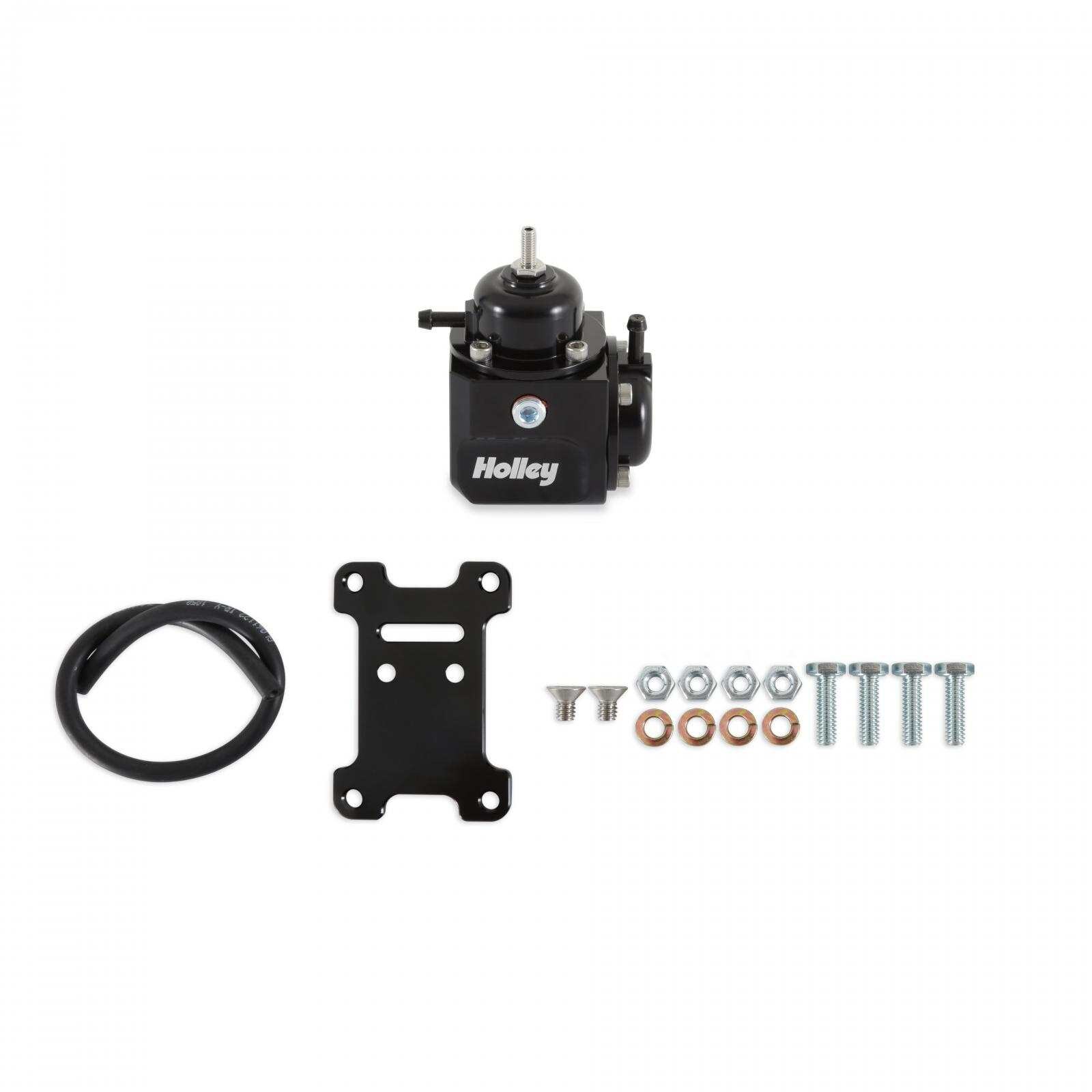

FUEL Regulator/damper Regulator/damper, Standard RANGE 40-70PSI - Holley - 12-1000
Description
Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating.
These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine.
Features and Benefits:
Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm Fittings included for damper/regulator's and direct mount dampers 1/8 inch NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer Vacuum fitting and one foot of hose included with all dampers for vacuum referencing Assembled and tested in the USA
Details:
Adjustable: Yes
Finish: Anodized Black
Fuel Type: Gasoline / Ethanol / Methanol / E85
Gauge Included: No
Gauge Port Included: Yes
Grade Type: Performance
Inlet / Outlet Size: 3/4-16 Female O-Ring (An 8)
Inlet Gender: Female
Inlet Port Diameter: 8 An Orb
Inlet Port Quantity: 1.0
Inlet Type: 8 An Orb
Maximum Pressure: 70 Pounds per Square Inch
Minimum Pressure: 40 Pounds per Square Inch
Mounting Bracket Included: Yes
Mounting Type: Inline
Outlet Gender: Female
Outlet Port Diameter: 8 An Orb
Outlet Port Quantity: 1.0
Outlet Type: 8 An Orb
Port Quantity: 2.0
Pressure Range: 40-70 PSI
Rebuildable: Yes
Style: Billet Aluminum
Vacuum Port Quantity: 2.0
Warranty: Manufacturer's Limited 90 Day Warranty
