Street Avenger Carburetor 570 CFM 4150 Vacuum Secondaries Shiny Gasoline Choke Type Manual - Holley - 0-81570

Street Avenger carburetors are known to bolt on right out of the box and have great features such as a quick change vacuum secondary for easy fine tuning; optimized street calibrations; four vacuum ports for all necessary vacuum accessories; factory preset electric choke for easy start ups; built-in fuel filters; and an included fuel line kit so there are no unnecessary trips back to the parts store. The Avenger series are the first carburetors to have a limited lifetime warranty.

With a great warranty like that and the included comprehensive instruction manual, you can count on years of worry free service.

Features and Benefits:


Vibratory polished for good looks Optimized street calibration that works-out-of-the-box Manual choke (Cable driven, hand operated) for precise cold start control Vacuum secondaries allow use on a wide variety of vehicles

Quick Change vacuum housing cap allows you to tune for performance or fuel economy (springs included) Compatible with Gm, Chrysler, and Ford A/T kickdown linkage

Additional parts may be required

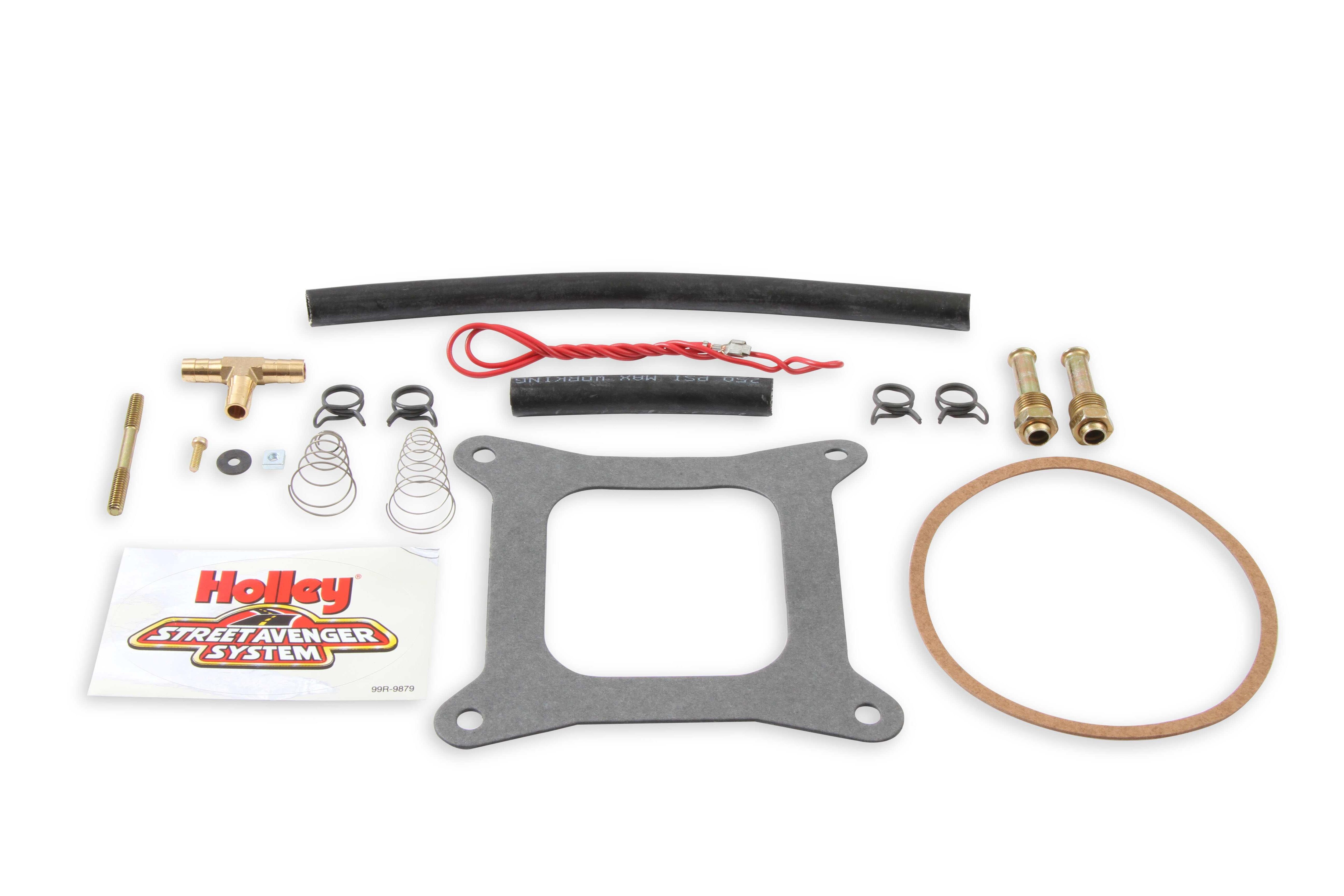

Fuel line kit included so there are no unnecessary trips back to the parts store Limited lifetime warranty - Guaranteed to be free from defects in material and workmanship for the life of the product! 100 percent wet-flow tested by Holley technicians to assure it arrives ready to run!


Associated Comments:


This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter Afb, and Autolite style carburetors with 5 3/16 inch x 5 5/8 inch bolt pattern.

If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr.

Gasket #1932.


Details:


Barrel Quantity: 4.0

Body Color: Polished

Body Finish: Polished

Booster: Straight

Booster Design: Straight

CFM: 570.0

Carburetor Material: Aluminum

Carburetor Use: Street

Choke Type: Manual

Condition: New

Cubic Feet Per Minute Rating: 570.0

Finish: Shiny

Flange Type: Square/4150

Fuel Type: Gasoline

Fuel Inlet: Dual

Grade Type: Performance

Linkage Attached: Yes

Marine Approved: No

Marine Use: No

Material: Aluminum

Model: 4150

Mounting Hole Quantity: 4.0

Primary Jet Diameter: 64.0

Primary Main Jet: 64.0

Primary Power Valve: 6.5

Primary Pump Nozzle Size: 31.0

Secondaries: Vacuum

Secondary Main Jet: 68.0

Spacer Included: No

Supercharged Application: No

Throttle Bore: 1.562 inch

Vacuum Ports: 1 timed (spark) port, 2 full, and 1 Pcv port

Warranty: Manufacturer's Limited Lifetime Warranty
