Ultra XP Carburetor 950 CFM 4150 Mechanical Secondaries Hard Core Gray Gasoline - Holley - 0-80805HBX

Xtreme Performance - Holley Ultra Xptm carburetors! Ultra Xp carbs are up to 38 percent lighter than our traditional race carbs, have fuel capacity that is 20 percent greater and 30 other new features!

They're available in our all-new Hard Core GrayTM hard coat anodized finish with BlackTM billet for improved corrosion protection. They're also available in natural tumble-polished aluminum with your choice of BlackTM or RedTM metering blocks and base plate.

The Aluminum Ultra Xp comes in 600, 650, 750, 850, and True 950-CFM. Holley Ultra Xp carburetors offer new features such as an integrated idle bypass valve that allows for idle adjustments while maintaining the correct throttle plate to transfer slot relationship, high capacity fuel bowls which feature 20 percent more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh.

Other features include all aluminum construction, fully tunable billet metering blocks, billet base plate, adjustable secondary linkage and knurled (hand adjustable) curb idle screws. Holley Ultra Xp carburetors are the ultimate in square bore race carburetors!

Features and Benefits:


Aluminum Construction (saves 4.5 lbs - 38 percent weight savings) Hard Core Gray with black anodized billet aluminum metering block and booster inserts Designed for use on Drag race, circle track, or any high horsepower engines Contoured venturri inlet offers balanced airflow for increased horsepower Air bleeds moved outward to allow a smoother transition of airflow from the top of the carburetor into the venturii Metering blocks feature improved durability, true gasket sealing and fully adjustable (emulsion bleeds, power valve channel restrictors & idle feed restrictors) Integrated idle bypass valve eliminates the need for holes in throttle plates and allows for proper adjustment of idle while maintaining correct throttle plate to transfer slot relationship

Helps maintain good idle control when using radical camshafts

Dual 30cc accelerator pumps provide the perfect amount of fuel from idle to full throttle Fuel bowls provide 20 percent more fuel capacity while controlling slosh with internal baffling Clear sight windows on both sides of bowls for easy and safe fuel level adjustments Built in drain plug in front center of bowl provides easy access to empty contents of bowl 8AN (o-ringed) inlet threads offer a large variety of plumbing options and can be plumbed from either side 4 corner idle allows you to precisely control your idle system Mechanical Secondaries for perfect off the line launches Elongated (dual pattern) mounting holes allow fitment on intakes with square flange (Holley 4150TM style) or large flange (Holley Dominator style) Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools Primary throttle shaft capped to prevent entry of debris & contaminates Throttle shaft is slabbed and undercut for improved airflow Factory machined accessory mounting hole for easy addition of adjustable primary throttle stop

New secondary pump cam lever designed to provide positive throttle stop on secondary side Stainless steel adjustable secondary link

Provides choice of 1:1 or progressivesecondary throttle actuation for ultimate control of secondary opening rate Baseplate designed with a boss that can be consumer machined for vacuum source Includes notched float and jet extensions 100 percent wet-flow tested by Holley technicians to assure it arrives ready to run!


Associated Comments:

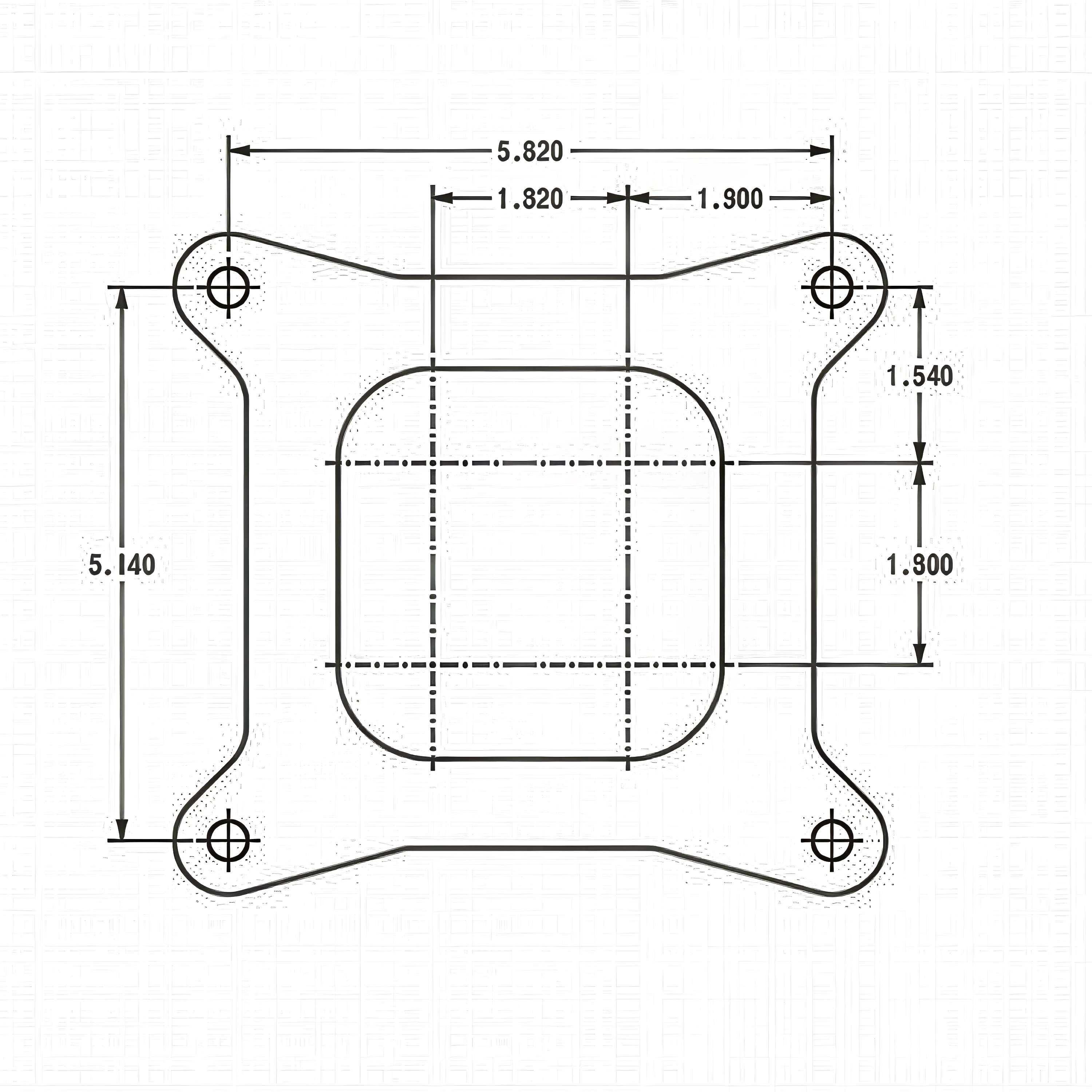

This carburetor was designed with a dual mounting pattern, so that it can be installed on a manifold machined for a 4150 or 4500 series carburetor.


Details:


Barrel Quantity: 4.0

Billet Color: Hard Core Gray with Black

Body Color: Hard Core Gray

Body Finish: E-Coated

Booster: Downleg

Booster Design: Downleg

CFM: 950.0

Carburetor Material: Aluminum

Carburetor Use: Professional Race

Circuit: 2.0

Condition: New

Cubic Feet Per Minute Rating: 950.0

Finish: Hard Core Gray

Flange Type: Square/4150

Fuel Type: Gasoline

Fuel Inlet: Dual

Grade Type: Performance

Linkage Attached: Yes

Marine Approved: No

Marine Use: No

Material: Aluminum

Model: 4150

Mounting Hole Quantity: 4.0

Primary Jet Diameter: 92.0

Primary Main Jet: 92.0

Primary Power Valve: 4.5

Primary Pump Nozzle Size: 32.0

Secondaries: Mechanical

Secondary Main Jet: 92.0

Secondary Power Valve: 4.5

Secondary Pump Nozzle Size: 32.0

Spacer Included: No

Supercharged Application: No

Throttle Bore: 1.750 inch

Venturii Size: 1.600 inch

Warranty: Manufacturer's Limited 90 Day Warranty
