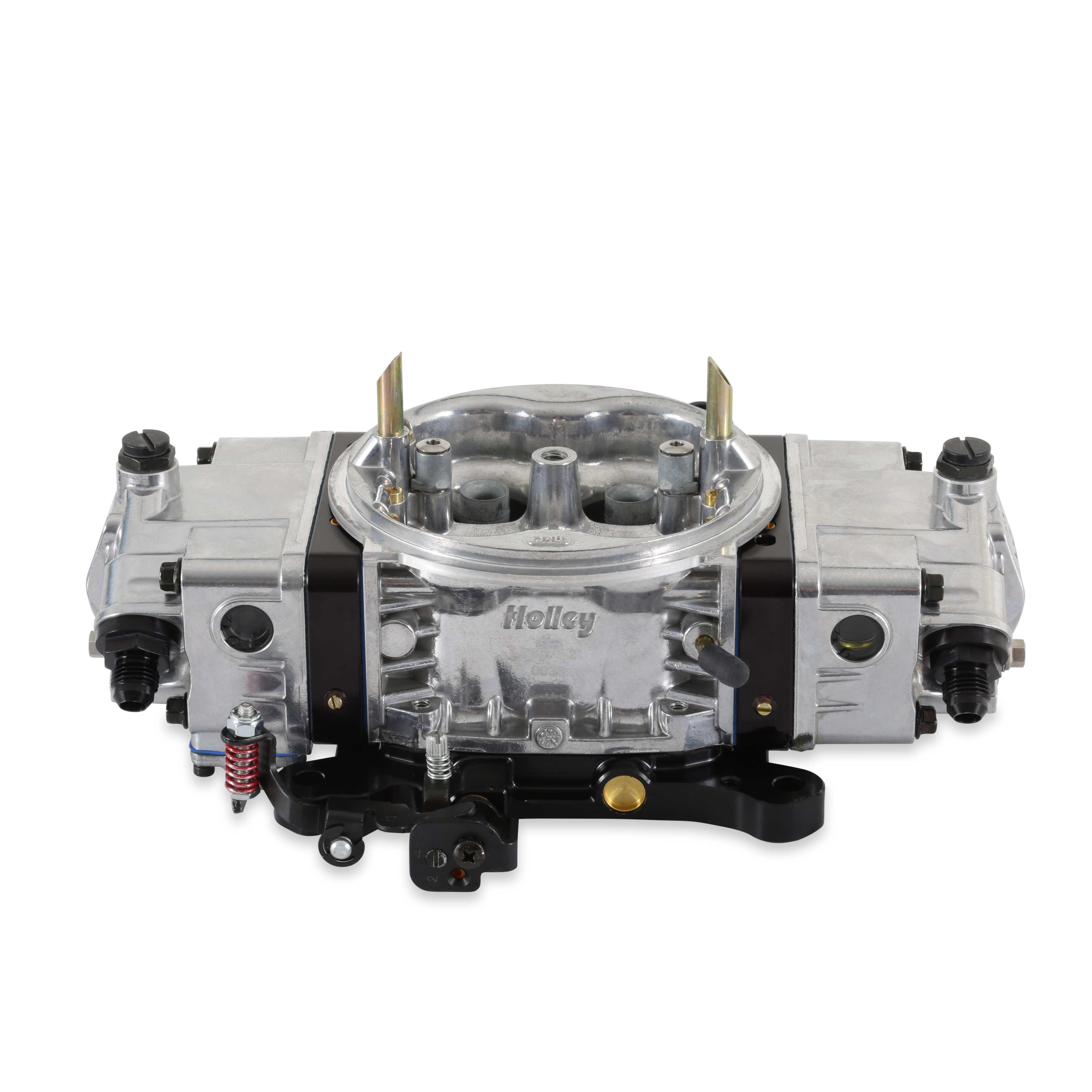

Supercharger XP Carburetor Draw-Thru 750 CFM 4150 Mechanical Secondaries Shiny Gasoline - Holley - 0-80576SA

By popular demand, Holley is expanding the draw-thru supercharger carburetor line to now include the Xp series. Like the existing HP line, these are available in 600, 750, and 950 CFM flow rates and standard polished with black accents.

The feature-laden Xp includes a contoured venturi inlet for balanced air flow, screw in air bleeds for precision tuning capabilities, high flow billet metering blocks, billet base plate, and Dominator style fuel bowls which allow plumbing from either side. Supercharger Xp carburetors also have a unique capability that allows their power valves to reference the intake manifold vacuum below the supercharger.

This allows the power valve to operate as it should, based off intake manifold vacuum. A power valve provides further enrichment to the main metering system under load (low vacuum) conditions.

Holley Xp carburetors are the standard for square bore race carburetors. Race-Ready out of the box!

Features and Benefits:


Tumble polished shiny finish for good looks Designed for use on the Weiand 671 supercharger (big block Chevrolet/Chrysler 392) or Weiand 871 supercharger (small block Chevrolet/Chrysler 426) Contoured venturri inlet offers balanced airflow for increased horsepower Screw in air bleeds for precision tuning capabilities Dual 30cc accelerator pumps for additional fuel under initial acceleration Dual feed fuel inlets for constant high volume fuel delivery 4 corner idle allows you to precisely control your idle system Mechanical Secondaries for perfect off the line launches Boost referenced power valve for proper enrichment under acceleration Throttle lever cut off for clearance on a sideways application 100 percent wet-flow tested by Holley technicians to assure it arrives ready to run!


Associated Comments:


This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter Afb, and Autolite style carburetors with 5 3/16 inch x 5 5/8 inch bolt pattern.

If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr.

Gasket #1932.


Details:


Barrel Quantity: 4.0

Body Color: Polished

Body Finish: Polished

Booster: Downleg

Booster Design: Downleg

CFM: 750.0

Carburetor Material: Aluminum

Carburetor Use: Performance and Race

Circuit: 2.0

Condition: New

Cubic Feet Per Minute Rating: 750.0

Finish: Shiny

Flange Type: Square/4150

Fuel Type: Gasoline

Fuel Inlet: Dual

Grade Type: Performance

Linkage Attached: Yes

Marine Approved: No

Marine Use: No

Material: Aluminum

Model: Xp-Series

Mounting Hole Quantity: 4.0

Primary Jet Diameter: 72.0

Primary Main Jet: 72.0

Primary Power Valve: 10.5

Primary Pump Nozzle Size: 31.0

Secondaries: Mechanical

Secondary Main Jet: 86.0

Secondary Pump Nozzle Size: 31.0

Spacer Included: No

Supercharged Application: Yes

System Type: Draw Thru

Throttle Bore: 1.688 inch

Venturii Size: 1.375 inch

Warranty: Manufacturer's Limited 90 Day Warranty
