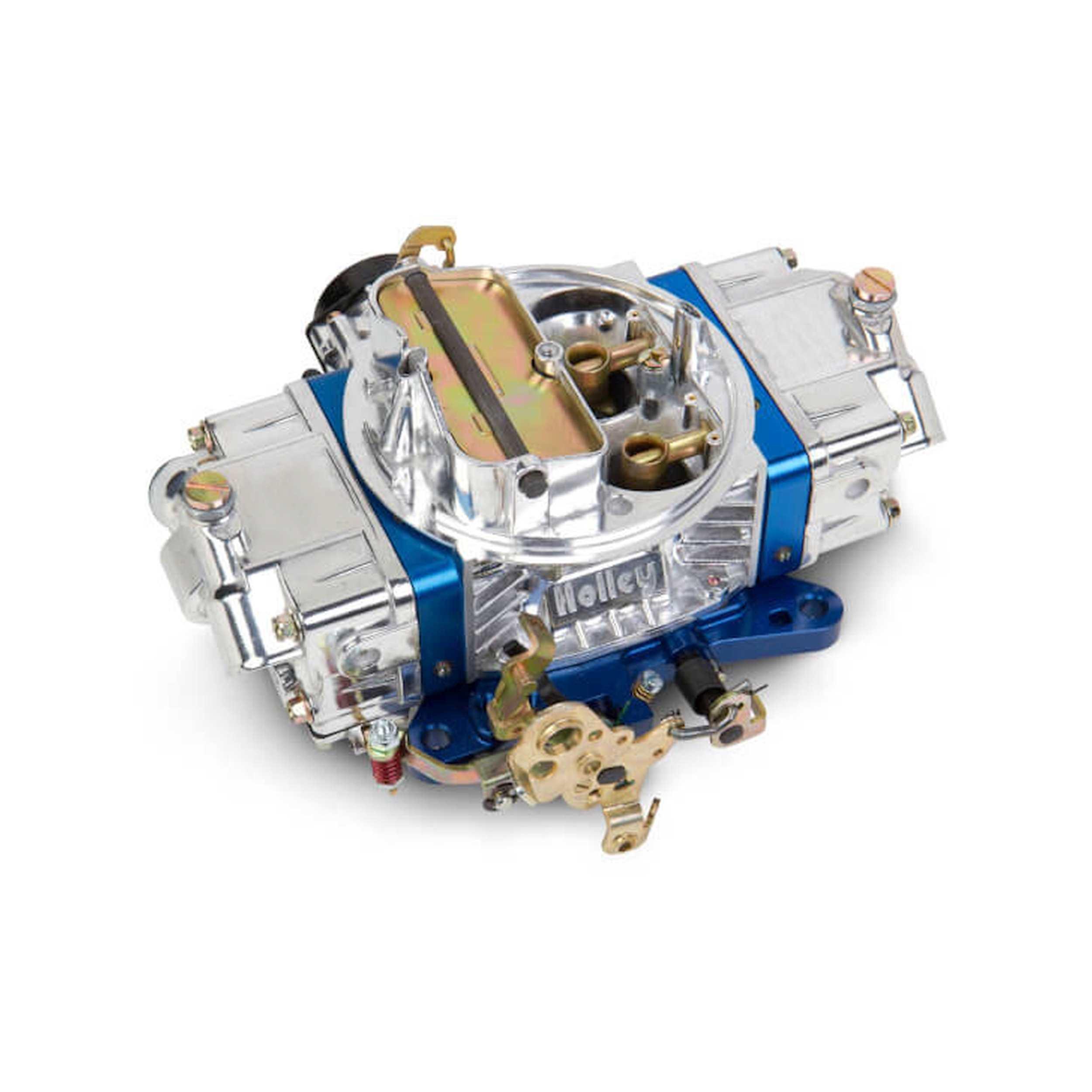

Ultra Double Pumper Carburetor 850 CFM 4150 Mechanical Secondaries Billet Color Blue Shiny Gasoline - Holley - 0-76850BL

Ultra light Aluminum construction for 43 percent weight savings Ultra shiny Tumble polished finish holds shine longer Ultra strong Billet metering blocks & base plates Ultra cool Blue anodized billet aluminum metering blocks and base plate Ultra easy Built in sight window for simple float adjustments Ultra fast High-performance fuel curves Holley Double Pumper carburetors are a perfect performance upgrade for hot street cars and race vehicles. Double Pumper carburetors are an American icon when it comes to performance carburetors.

From their roots as the premier carburetor on many factory muscle cars to powering thousands of vehicles across the finish line, the Double Pumper is a great choice whether you are burning up the street or the quarter mile. The Ultra Double PumperTM Carburetors feature all aluminum construction and are equipped with metering blocks and a base plate made from 6061-T6 billet aluminum.

They weigh in at approximately 5 lbs. less than a comparable zinc carburetor.

The new Ultra Double Pumper Carburetors have an enhanced fuel curve for optimum performance, with many more features such as aluminum construction, anodized billet aluminum metering blocks and base plate, 4 corner idle for precise idle control, dual accelerator pumps for additional fuel under initial acceleration, mechanical secondaries for great performance, clear fuel level sight plugs for easy, no mess fuel level adjustments, Ford automatic transmission kickdown for use on popular Ford transmissions, four vacuum ports for all necessary vacuum accessories, and for the first time on a Double Pumper, factory pre-set electric choke for easy, fast cold start-ups. The clean, polished look coupled with Blue metering blocks and throttle body will certainly set your ride apart whether you are at the show or track.

Features and Benefits:


Shiny with blue anodized billet aluminum metering blocks/base plate for good looks and true gasket sealing Ultra Double Pumpers feature an Optimized street/strip calibration that works out-of-the-box Factory preset electric choke for easy startups Mechanical secondaries for awesome tire turning performance 4 corner idle allows you to precisely control your idle system Built in, clear fuel level sight glass for easy, no mess fuel level adjustments Aluminum construction for a 43 percent weight savings Compatible with Gm, Chrysler, and Ford A/T kickdown linkage

Additional parts may be required

Intended for lightweight vehicles w/ manual trans or automatics with high stall & low gearing 100 percent wet-flow tested by Holley technicians to assure it arrives ready to run!


Associated Comments:


This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter Afb, and Autolite style carburetors with 5 3/16 inch x 5 5/8 inch bolt pattern.

If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr.

Gasket #1932.


Details:


Barrel Quantity: 4.0

Billet Color: Blue

Body Color: Polished

Body Finish: Polished

Booster: Downleg

Booster Design: Downleg

CFM: 850.0

Carburetor Material: Aluminum

Carburetor Use: Performance and Race

Choke Type: Electric

Condition: New

Cubic Feet Per Minute Rating: 850.0

Finish: Shiny

Flange Type: Square/4150

Fuel Type: Gasoline

Fuel Inlet: Dual

Grade Type: Performance

Linkage Attached: Yes

Marine Approved: No

Marine Use: No

Material: Aluminum

Model: 4150

Mounting Hole Quantity: 4.0

Primary Jet Diameter: 80.0

Primary Main Jet: 80.0

Primary Power Valve: 6.5

Primary Pump Nozzle Size: 31.0

Secondaries: Mechanical

Secondary Main Jet: 80.0

Secondary Pump Nozzle Size: 31.0

Spacer Included: No

Supercharged Application: No

Throttle Bore: 1.750 inch

Vacuum Ports: 1 timed (spark) port, 2 full, and 1 Pcv port

Warranty: Manufacturer's Limited 90 Day Warranty
