PowerFlo Lift Pump and Fuel System Upgrade Kit for 2011-2016 Ford Powerstroke (Long Bed) - Fleece Performance - FPE-PF-FMC-1116-LB

The PowerFlo lift pump is the latest drop-in lift pump from the diesel experts at Fleece Performance! Needing to replace your factory pump or looking to upgrade? This kit includes both the PowerFlo lift pump to replace your in-tank factory sending unit and a new frame mounted filter base with Donaldson filter to replace the factory pump and filter assembly.

Our plug-and-play kit requires NO cutting, splicing, or modification of the factory fuel lines or fuel tank and the new filter base mounts in the OE filter housing location. Combine this kit with our replacement under hood filter base (FPE-FMC-UHFA-1123) and optional fuel heater (FPE-FH-FMC) for the ultimate fuel delivery setup on your 6.7 Powerstroke!


Features:


Direct In-Tank Replacement: The PowerFlo lift pump retains the factory fuel lines, water-in-fuel sensor, and installs in less than half the time of other high flow lift pumps.

Ultra-Quiet - Dual Gerotor: Two is always better than one, and the PowerFlo delivers with two industry proven ultra-quiet gerotor pumps, providing increased flow capacity and the ability to support up to 800 HP!

Seamless Integration: The active fill bucket eliminates the need for tank sumps, draw straws, additional air filtration, and the 1/4 inch tank issues typically encountered when seeking a higher flow lift pump to meet your engine's need. This kit requires no cutting, splicing, or modification of the existing fuel lines, harness, or fuel tank and retains all factory diagnostic functionality.

Aftermarket Capable: Want the benefits of the in-tank pump but need to run your own fuel lines? The pump outlet and return are threaded to accept a -8 O-ring fitting (3/4 inch-16 thread). This product has also been tested and verified with 2011-2016 trucks equipped with and S and S Diesel Motorsort DCR conversion kit and the S and S Diesel Motorsport CP4 Disaster Prevention Kit.

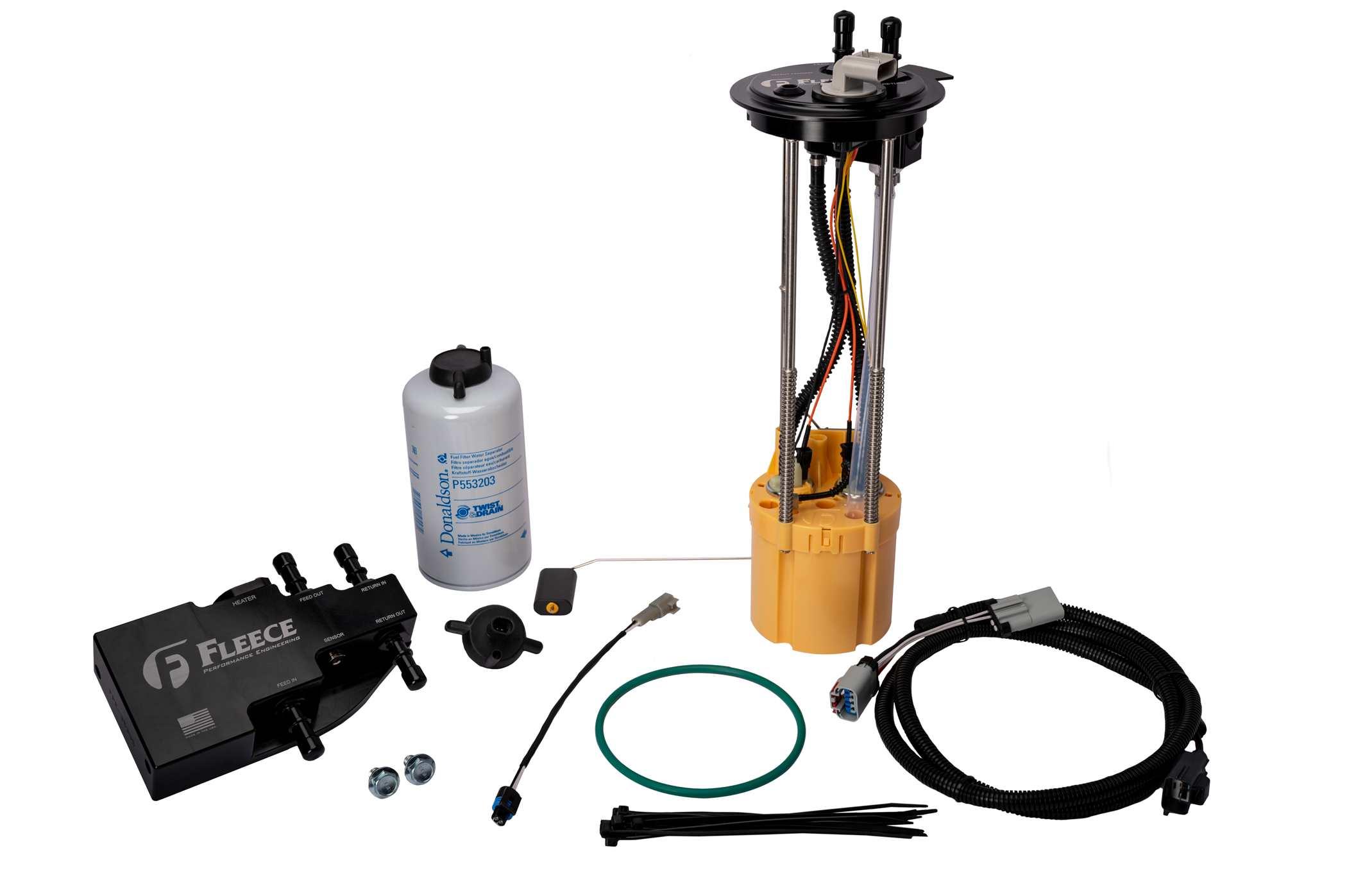

Kit includes:


PowerFlo Lift Pump with integral fuel level sender

Filter base with Donaldson (P/N P553203) and provision for optional fuel heater (4 micron rating at 99 percent efficiency)

Water-in-fuel sensor

Chassis wiring harness and WIF sensor extension harness

Fuel sending unit tank O-ring

Mounting hardware


Cross-Reference:


Year: 2011-2016, FPE Part Number: FPE-FMC-1116-SB, Replaces FORD OE Part Number: BC3Z 9275-A

Year: 2011-2016, FPE Part Number: FPE-FMC-1116-LB, Replaces FORD OE Part Number: BC3Z 9275-B


Emissions Certifications:


D-834-18


Application Notes:


Operating pressure of: 65-70 psi at idle

This product has been tested and verified to work with 2011-2016 trucks equipped with an S and S Diesel Motorsport DCR conversion kit and the S and S Diesel Motorsport CP4 Disaster Prevention Kit.

This product has been confirmed to fit Titan and S and B aftermarket fuel tanks.
