All Lights On for 2007-2017 Toyota Tundra - Fleece Performance - FPE-ALO-TUNDRA-0717

Brighten up your driving experience with this simple upgrade inside your underhood relay box. Simply install the All Lights On module to allow your high-beams, low-beams and fog lamps to simultaneously illuminate the road ahead.

Once installed the All Lights On module will keep your fog lamps on when you turn on your high-beams. When the high-beams are not turned on your low-beams and fog lights will function normally.


Installation:


Open the hood and remove the relay panel cover.

Remove the relays labeled: FOG and DIM

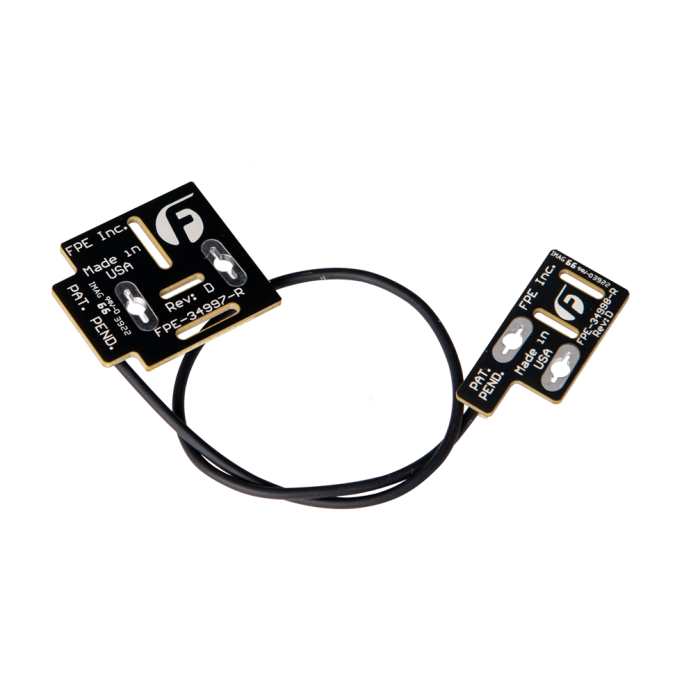

Insert the relays through the All Lights On boards with the wire connection facing towards the top of the relay. The board will make a firm connection with the relay.

Reinstall the two relays back into their original location and install the relay panel cover.


Operation:


MY2007-2013 Tundra (Separate high and low bulbs): High beams, driving lights, and fog lights all on when high beams are enabled.

MY2014-2017 Tundra (Dual filament bulbs): High beams and fog lights on when high beams are enabled.


Application:


Fits 2007-2017 Toyota Tundra with factory installed fog lamps

Fits 2008-2018 Toyota Sequoia with factory installed fog lamps


Warranty:


1 Year Limited Parts Warranty
