RAM Titanium Signature Series Diesel Fuel Lift Pump 260Gph at 45Psi 94-98 Dodge Ram 2500/3500 Cummins 5.9L FASS

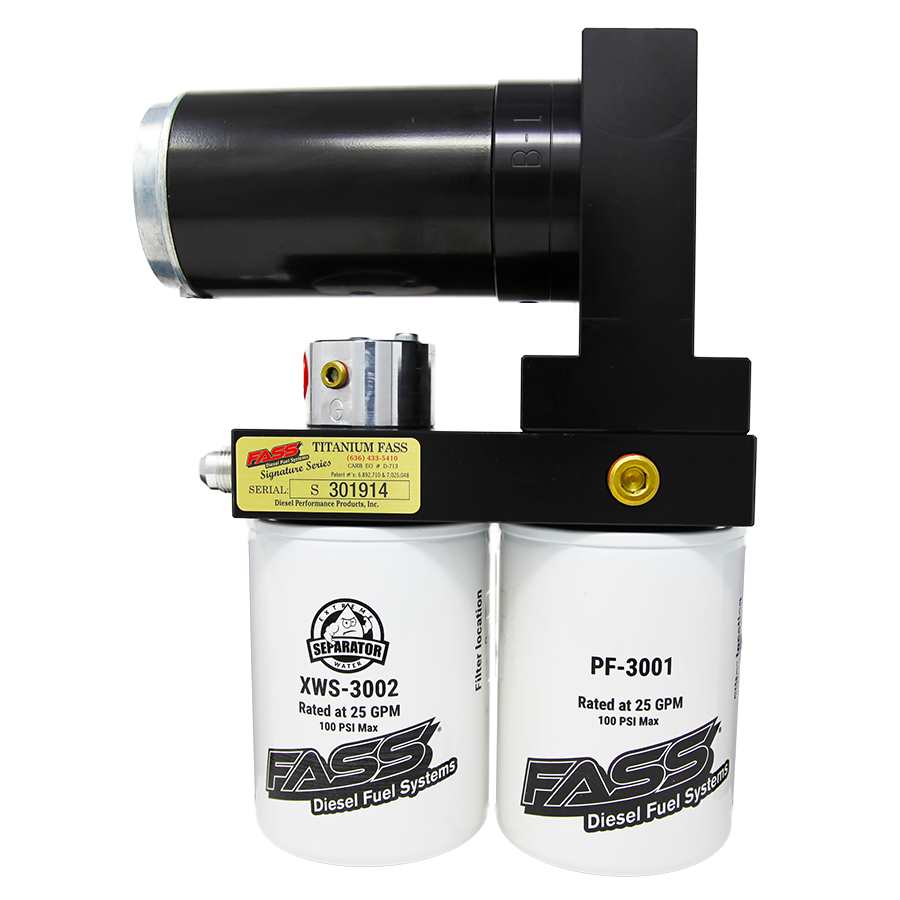

FASS Diesel Fuel Systems 1994-1998 Dodge Ram Cummins 12V Titanium Signature Series 260GPH (TS D10 260G) Part No: TS D10 26G This is a complete replacement pump for factory lift pump and holds a pressure of 45PSI.

The Titanium Signature Series diesel fuel system was engineered by FASS Diesel Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration system in the diesel industry. Rated at 260 gallons per hour, high pressures of 45PSI and backed by a limited lifetime warranty our Titanium Signature Series fuel system can support your Dodge Cummins 5.9L 12V diesel engine with enough fuel for 1200-1500 HP multiple aggressive fueling upgrades. A Titanium Signature Series fuel system also offers advanced filtration benefits that will help protect your 12 valve's injection systems, effectively extending the life of both your P-Pump and Bosch Diesel Injectors.

These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter and FASS Diesel Fuel Systems patented air/vapor removal process. Aftermarket lift pumps are important for both daily drivers and high-performance applications when looking to improve either fuel economy or increase horsepower/torque. This kit includes a Bulkhead Fitting and Suction Tube.

Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8 inch Suction Tube along with a 1/2 inch Fuel Return Port. This new and improved version from our previous Suction Tube allows the user to plum their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process.

The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel. The Titanium Signature Series diesel fuel systems are the superior fuel pump and filtration system, in the diesel industry. This is because here at FASS Diesel Fuel Systems we focus on perfecting our pumps and how they are engineered, taking the extra steps that our competitors ignore while they rush to get product out the door. By doing this we have less than a 2 percent failure rating with our motor and a design that implements unique design features you can only get with FASS Diesel Fuel Systems

FASS Whispering Technology (FWT) was engineered to meet the stringent demands of today's quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System's high quality and durability standards.

FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a whisper while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.
Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing.

This prevents the reintroduction of air and vapor back into the fuel and to prevent eddy currents from forming within the corner of a 90-degree sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly Polished (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure Extreme cold weather operations!
Bolt On Bracket Mounts old mounting styles required drilling or welding when mounting your new pump. This has now been simplified with our new bolt on brackets that utilize your Ford Super Duty factory bed bolt, the bolt that secures your truck bed to your frame. Mounting your Titanium Signature Series lift pump takes only minutes and all brackets are made from machined steel for superior support and strength.
1994-1998 Cummins 260GPH Fuel System Features:


New Whisper Technology

New Bolt On Bracket Installation

Preset 45-47 PSI Fuel Pressure

Complete Replacement Pump

260 Gallons Per Hour Flow Rating

Removes Water, Air and Debris From Diesel Fuel

2 Micron Filtration Rating

Protects and Extends The Life Of Your Injectors

Improved Cold Weather Starts

Decreases Carbon Monoxide and Carbon Dioxide Emissions

1/2 Inch Fuel Lines and Ports

Fuel Mileage Improvement

Improved Fuel Volume Delivery

Smoother Engine Idle

Optional Electric Heater Ports

Optional Fuel Pressure Gauge Port

Limited Lifetime Warranty

30,000 Mile Filter Life Expectancy

Quietest Motor On The Market
