EMF Ball JointsSKU: BSD-EMF-BSHA-81862-18MM
EMF 2013-2024 Dodge 4WD 2500/3500 Track Bar Bushing Replacement - BSHA-81862-18mm
$68.00
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
Fits: 2013.5-2024 4WD Dodge Ram 2500/3500 OEM FRONT Track Bars .

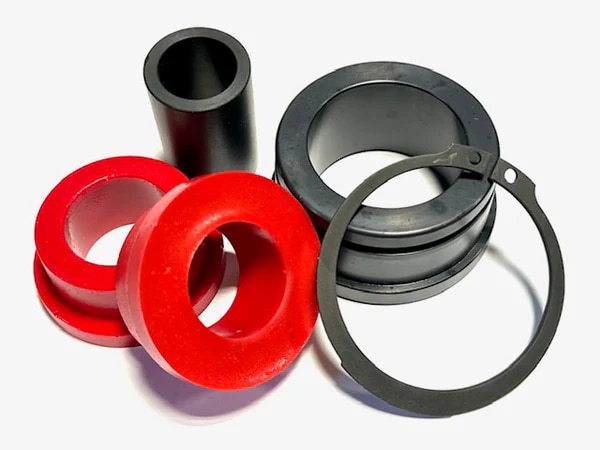

Includes: 1 Bushing Housing, 1 Snap Ring, 1 pair of bushings (2 halves) & 1 x 18mm bolt sleeve for the Upper Bushing Replacement on the front trackbar
These are sold as EACH. If you need to replace both on the trackbar, please order 2 of them.
EMF Dodge Trackbar Bushing Replacement - Made in Canada out of a high quality, high-durometer material to ensure a long lasting product. Bushing Housing and Inner Sleeve is made from 4140 HTSR Chromoly Steel and then Gas Nitrided.
BUSHING MATERIAL SPECS
MADE IN CANADA
DUROMETER (HARDNESS) - 95 +/- 5
SPECIFIC GRAVITY - 1.13 G/CC
TENSILE STRENGTH - 6500 PSI
100% MODULUS - 1800 PSI
FLEXURAL MODULUS - 4300 PSI
ULTIMATE ELONGATION - 380%
COMPRESSION SET - 22HR @ +70 DEGREES - 36%
TEMPERATURE RANGE - -40 TO +92 DEGREES CELSIUS (-40 TO +200 DEGREES FARENHEIT)
BELL BRITTLE POINT - -63 DEGREES CELSIUS (-80 DEGREES FARENHEIT)
BAYSHORE REBOUND - 40%
ABRASION RESISTANCE - 70 MM3
TEAR RESISTANCE, INITIAL - 700 PLI
TEAR RESISTANCE, PROPOGATION - 130 PLI
Includes: 1 Bushing Housing, 1 Snap Ring, 1 pair of bushings (2 halves) & 1 x 18mm bolt sleeve for the Upper Bushing Replacement on the front trackbar
These are sold as EACH. If you need to replace both on the trackbar, please order 2 of them.
EMF Dodge Trackbar Bushing Replacement - Made in Canada out of a high quality, high-durometer material to ensure a long lasting product. Bushing Housing and Inner Sleeve is made from 4140 HTSR Chromoly Steel and then Gas Nitrided.
BUSHING MATERIAL SPECS
MADE IN CANADA
DUROMETER (HARDNESS) - 95 +/- 5
SPECIFIC GRAVITY - 1.13 G/CC
TENSILE STRENGTH - 6500 PSI
100% MODULUS - 1800 PSI
FLEXURAL MODULUS - 4300 PSI
ULTIMATE ELONGATION - 380%
COMPRESSION SET - 22HR @ +70 DEGREES - 36%
TEMPERATURE RANGE - -40 TO +92 DEGREES CELSIUS (-40 TO +200 DEGREES FARENHEIT)
BELL BRITTLE POINT - -63 DEGREES CELSIUS (-80 DEGREES FARENHEIT)
BAYSHORE REBOUND - 40%
ABRASION RESISTANCE - 70 MM3
TEAR RESISTANCE, INITIAL - 700 PLI
TEAR RESISTANCE, PROPOGATION - 130 PLI
