2013.5-2019 Dodge Ram 4wd Lower and Upper Ball Joint Kit ** Set of 4 Oversized** EMF - EMF 6821.1-7460A.1-KIT

E MF Dodge Ram 2013.5 - 2019 4WD Lower and Upper Ball Joint (Set of 4) **OVERSIZED**

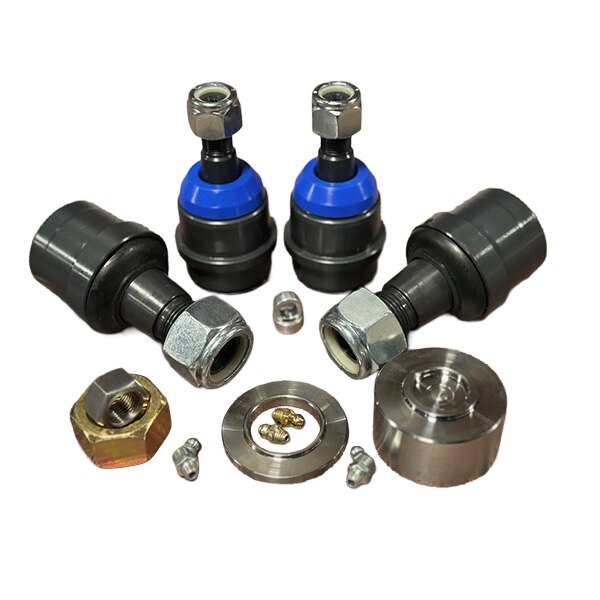

What if you could replace your ball joints once and never have to press the ball joint out of the knuckle ever again? If you’re looking for something  LONG LASTING, REBUILDABLE and GREASEABLE , you have come to the right place. What is Included in the EMF Ball Joint Kit?
1 Pair of Oversized Upper Ball Joints
1 Pair of Oversized Lower Ball Joints
Install Nuts
Install Washer & Cup (To avoid damaging the cap and the ring when pressing the ball joint into the knuckle)
Instructions & an EMF Sticker
HOUSING MEASUREMENTS:  STOCK FACTORY  UPPER  BALL JOINT SIZE – 1.8975” EMF UPPER  BALL JOINT REGULAR BODY SIZE – 1.9” (+.001)  EMF UPPER BALL JOINT OVERSIZED BODY SIZE –  1.905" (+.001)  STOCK FACTORY  LOWER  BALL JOINT SIZE –  1.975"  MOPAR REPLACEMENT  LOWER  BALL JOINT SIZE - 1.977"  EMF LOWER  BALL JOINT REGULAR BODY SIZE – 1.977" (+.001) EMF LOWER BALL JOINT OVERSIZED BODY SIZE – 1.987" (+.001)
IMPORTANT!!  EMF BALL JOINTS ARE REBUILDABLE AND YOU CAN TIGHTEN!!
THE LOWER BALL JOINT CAN BE TIGHTENED BY BACKING OUT THE SET SCREW ON THE SIDE OF THE BODY AND TIGHTENING THE RING. THERE IS A VIDEO ON HOW TO DO THIS ON OUR YOUTUBE CHANNEL , USERNAME IS EMFEVO (EMF ROD ENDS) IF YOU WANT TO CHECK IT OUT.

FEELING ANY PLAY? HAVE THE JOINTS BEEN GREASED?  SOMETIMES THEY JUST NEED GREASE AND IT WILL TIGHTEN RIGHT BACK UP AGAIN.  WE RECOMMEND GREASING AROUND EVERY OIL CHANGE JUST TO MAKE IT EASY TO REMEMBER.

GREASING GUIDE:
GREASE THE LOWER BALL JOINT FIRST UNTIL THE GREASE GUN STARTS TO BECOME FIRM.  THEN GREASE THE UPPER BALL JOINTS UNTIL THE GREASE GUN BECOMES FIRM.  THEN GREASE THAT LOWER BALL JOINT ONE MORE TIME UNTIL THE GREASE GUN BECOMES FIRM. ROTATE THE KNUCKLE SIDE TO SIDE TO DISTRIBUTE THE GREASE INSIDE THE BALL JOINTS.  THE KNUCKLE SHOULD GO FROM STIFF AND HARD TO MOVE, TO EASIER TO MOVE SIDE TO SIDE FREELY. NOW YOU WANT TO REPEAT THE STEP ABOVE AGAIN BY GREASING THE LOWER BALL JOINT FIRST AS MANY PUMPS AS YOU CAN GET, FOLLOWED BY GREASING THE UPPER WITH AS MANY PUMPS AGAIN.  IF YOU CAN’T GET ANY MORE IN, THAT’S OK!   CYCLE THE KNUCKLE BACK AND FORTH AGAIN GOING FROM STIFF AND HARD TO MOVE TO EASIER TO MOVE SIDE TO SIDE. IF THE KNUCKLE FEELS TOO STIFF, THEN DEPRESS THE GREASE FITTING TO LET A LITTLE PRESSURE OUT AND IT SHOULD FREE UP AGAIN.
ARE YOU GETTING SIDE TO SIDE PLAY ON THE UPPERS? THAT IS THE ONLY TIME YOU SHOULD HAVE TO REBUILD THEM.  UP AND DOWN IS NORMAL FOR THE UPPER BALL JOINT BECAUSE IT IS A KING PIN DESIGN.  SIDE TO SIDE FOR THE UPPER IS NOT NORMAL AND COULD INDICATE WEAR ON THE INTERNAL PIN AND RACE.  TRY GREASING FIRST AND SEE IF THAT HELPS… IF NOT, REBUILD WITH A NEW PIN AND RACE SET.

ARE YOU GETTING UP AND DOWN PLAY ON THE LOWERS? BACK THE SET SCREW OUT AND TIGHTEN THE RING TO GET RID OF ANY PLAY.  WHEN YOU GET TO THE POINT WHERE THIS IS NO LONGER EFFECTIVE IN REMOVING ANY UP AND DOWN PLAY IN THE LOWERS, THAT IS WHEN YOU REBUILD WITH NEW RACES AND PIN.

What makes EMF different than the other Rebuildable Ball Joints on the market?
As the years go by and miles are put on the truck and normal wear and tear happen, the Internal parts of the Ball Joints will also begin to wear. If, at any time, you start to feel Up and Down Play in the Lower Ball Joint, you simply take the set screw out of the side of the housing and tighten the Ring, then put the set screw back in, grease and you’re good to go!

EMF Ball Joints are  TRULY REBUILDABLE  – Which means inside the Ball Joint housing there is a removable race and pin. This removable race acts as the wear point inside the housing, protecting it from any damage.  When the time comes to rebuild the Ball Joint, there is no need to press the housing out of the knuckle.  You simply rebuild the Ball Joint right on the truck by removing the set screw on the side of the body, then removing the Threaded Ring or Cap using a Spanner Wrench.  Finally, you pop the internal race(s) and pin out and put the new ones in, tighten up the Ring/Cap, put the set screw back in and grease!  Saving you Time and Money.


 EMF is a Canadian Company, which means we need parts that last in all sorts of extreme temperatures. EMF Ball Joints are manufactured by us in our humble shop in Alberta, Canada.  EMF Ball Joints are made from 4140 HTSR Chromoly Steel and then they go through a process called QPQ Salt Bath Nitriding and this is what gives the material added strength and the smooth, long lasting, anti-galling black finish.


We don’t believe customers should have to pay an arm and a leg for good parts so we try to keep costs as low as we can while keeping the quality as high as we can offer.
Upper Ball Joints Fit:   2006-2008 Dodge Ram 1500 4WD MEGA CAB ONLY 2003-2019 Dodge Ram 2500/3500 4WD 2011-2019 Dodge Ram 2500HD / 3500HD Lower Ball Joints Fit:  2013.5+ Dodge Ram 2500/3500HD 4WD (With the new Radius Arm Setup) ** REMOVE THE LOWER BOOTS FIRST BEFORE PRESSING INTO THE KNUCKLE **  The Install Tools for the Upper and Lower Ball Joint are to avoid damaging the Ring and Cap when pressing the ball joints into the knuckle using a suitable Ball Joint Press.  They are included with each set of 4 purchased.  Pics below show how the Installation Washer is used on Lower Ball Joint and Installation Cup is used on the Upper Ball Joint:


Quick Facts about the EMF Ball Joint:

3 Canadian/US Patents  covering the design

Rebuildable  so you will never have to purchase an entire unit again, you simply replace the inner race and pin and off you go. You can do this right on the truck without removing the housing from the knuckle

Serviceable  so if you ever start to feel movement in the joint, you simply back out the set screw on the side of the cap and tighten the cap then replace the set screw. This can be done right on the truck without having to remove anything from the knuckle.

Greaseable  so you can just pump a couple squir…
