20-24 Jeep Gladiator (4WD) Suspension Lift Kit

Suspension Lift Kit
JT30-1X5310-L2
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922071)
TECH NOTE: Springs are NOT rated for use with models equipped with EcoDiesel engines.
TECH NOTE: NOT compatible with Jeep Gladiator Mojave
20-UP JEEP GLADIATOR 3" SUSPENSION LIFT SYSTEM 2
DYNATRAC 20-UP JEEP GLADIATOR 3" SUSPENSION LIFT SYSTEM 2
The Dynatrac 3" Suspension Lift System 2 is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. Made for adding lift height and wheel travel to the JT without breaking the bank.

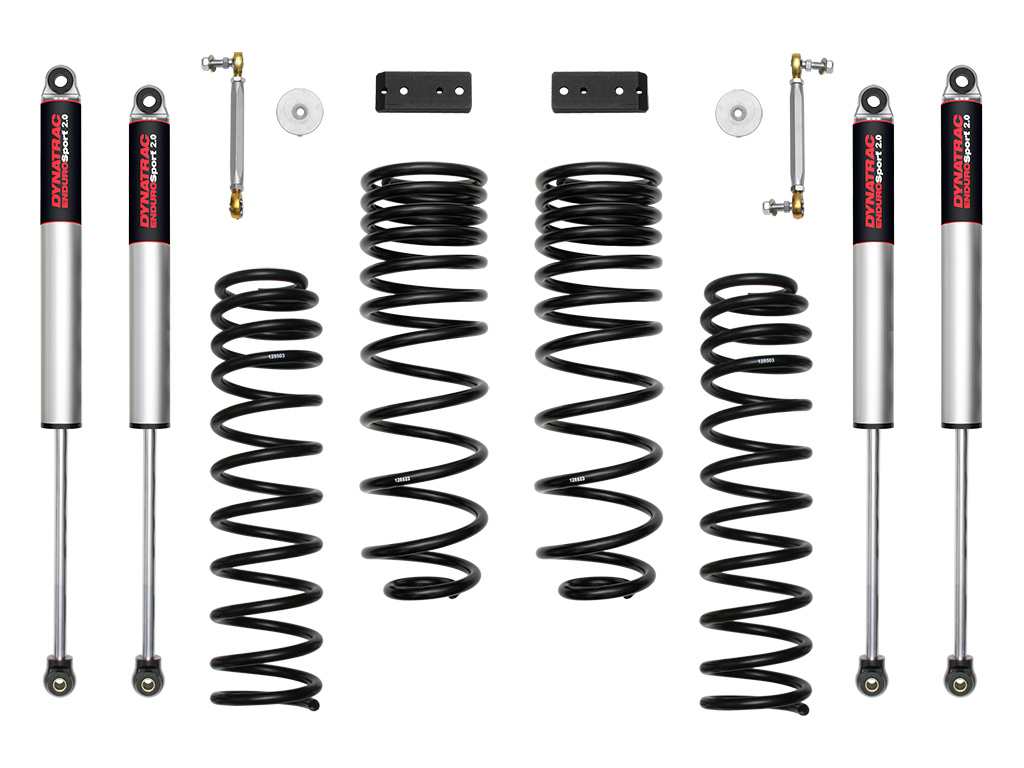

The Dynatrac 3" Suspension Lift System 2 for the 2020-Up Jeep Gladiator JT is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. System 2 builds off of System 1 with the upgrade to triple rate rear coil springs for 1.5" of rear lift as well as improved ride quality and rear suspension performance. This system includes 3" lift front dual rate coil springs, 1.5" lift triple rate rear coil springs, 2.0 EnduroSport shocks, bump stop spacers, adjustable front sway bar links and rear brackets, and all necessary hardware to complete the installation. With this combination of components, Dynatrac was able to increase wheel travel numbers by 3" in front and 2" in the rear, significantly improving the performance of the 2020-Up JT. The 3.0” Lift System allows or fitment of 35" tires when used with Dynatrac's recommended wheel specifications. For users looking to install 37" tires, an optional extended bump stop spacer kit (Part # DT922071) is available.
3" front lift height and 1.5" of rear lift over stock
Fits 35" tires (37" with optional extended bump stop spacer kit, Part # DT922071)
3" front, 2" rear increase in wheel travel
Improves on and off-road ride quality over stock
Dual rate front coil springs and triple rate rear coils with lifetime guarantee against sagging/breakage
2.0 EnduroSport shocks with Jeep JT specific valving
Adjustable front sway bar links and rear sway bar brackets eliminate sway bar bind
100% bolt-on system makes for an easy install
Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
