Randy's Worldwide : DynatracSKU: BSD-DYN-JL30-1X5310-L2
18-20 Jeep Wrangler Suspension Lift Kit
$2,780.40
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
SUSPENSION SYSTEM
JL30-1X5310-L2
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922029)
TECH NOTE: Springs are NOT rated for use with models equipped with EcoDiesel engines.
TECH NOTE: Not compatible with Wrangler JL 4xe or Unlimited Rubicon 392 trims.
18-23 JEEP JL 3" SUSPENSION LIFT SYSTEM 2
DYNATRAC 18-23 JEEP JL 3" SUSPENSION LIFT SYSTEM 2
The Dynatrac 3" Suspension Lift System 2 builds off of System 1 with additional components to further improve drivability. Made for adding lift height and wheel travel to the JL without breaking the bank.

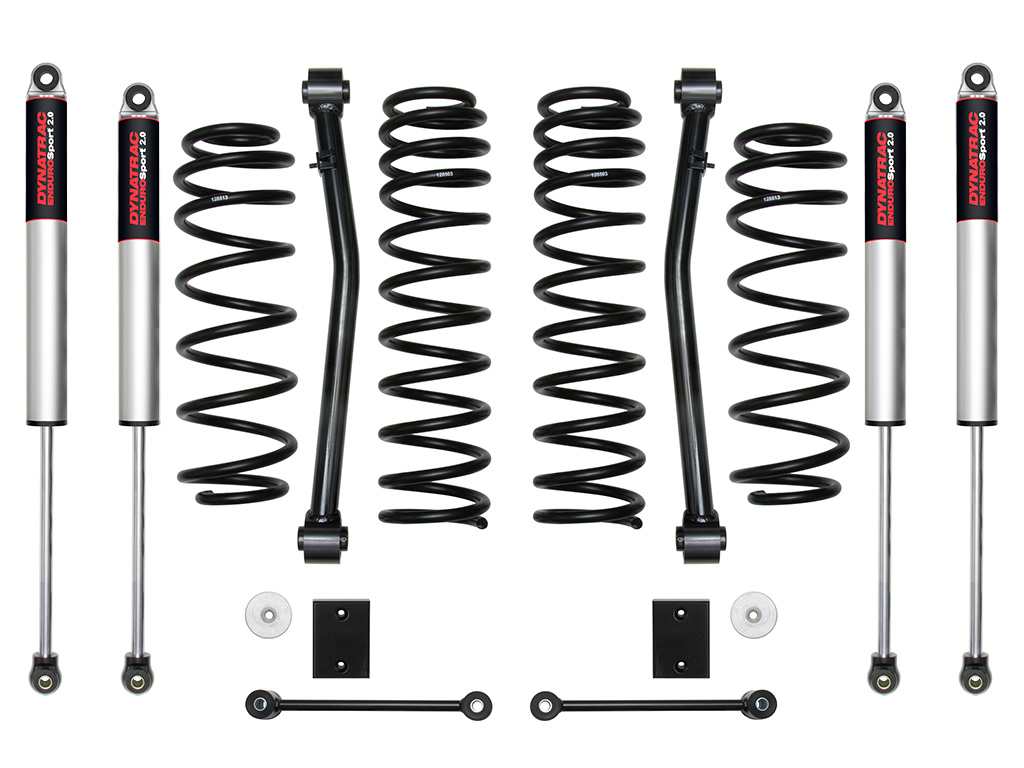

The Dynatrac 3" Suspension Lift System 2 for the 2018-2023 Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. System 2 builds off of System 1 with additional components to further improve drivability. This system includes 3" lift dual rate coil springs, 2.0 EnduroSport shocks, tubular steel front lower links, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, Dynatrac was able to increase wheel travel numbers by 3" in front and 2" in the rear, significantly improving the performance of the 2018-2023 JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The 3.0” Lift System allows or fitment of 35" tires when used with Dynatrac's recommended wheel specifications. For users looking to install 37" tires, an optional extended bump stop spacer kit (Part # DT922029) is available.
3" lift height over stock
Fits 35" tires (37" with optional extended bump stop spacer kit, Part # DT922029)
3" front, 2" rear increase in wheel travel
Improves on and off-road ride quality over stock
Dual rate coil springs with lifetime guarantee against sagging/breakage
2.0 EnduroSport shocks with Jeep JL specific valving
Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
100% bolt-on system makes for an easy install
Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Dynatrac 2018-2023 Jeep Wrangler JL, 3" Suspension Lift System 2, JL30-1X5310-L2
Dynatrac 2018-2023 Jeep Wrangler JL, 3" Suspension Lift System 2
JL30-1X5310-L2
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922029)
TECH NOTE: Springs are NOT rated for use with models equipped with EcoDiesel engines.
TECH NOTE: Not compatible with Wrangler JL 4xe or Unlimited Rubicon 392 trims.
18-23 JEEP JL 3" SUSPENSION LIFT SYSTEM 2
DYNATRAC 18-23 JEEP JL 3" SUSPENSION LIFT SYSTEM 2
The Dynatrac 3" Suspension Lift System 2 builds off of System 1 with additional components to further improve drivability. Made for adding lift height and wheel travel to the JL without breaking the bank.
The Dynatrac 3" Suspension Lift System 2 for the 2018-2023 Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. System 2 builds off of System 1 with additional components to further improve drivability. This system includes 3" lift dual rate coil springs, 2.0 EnduroSport shocks, tubular steel front lower links, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, Dynatrac was able to increase wheel travel numbers by 3" in front and 2" in the rear, significantly improving the performance of the 2018-2023 JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The 3.0” Lift System allows or fitment of 35" tires when used with Dynatrac's recommended wheel specifications. For users looking to install 37" tires, an optional extended bump stop spacer kit (Part # DT922029) is available.
3" lift height over stock
Fits 35" tires (37" with optional extended bump stop spacer kit, Part # DT922029)
3" front, 2" rear increase in wheel travel
Improves on and off-road ride quality over stock
Dual rate coil springs with lifetime guarantee against sagging/breakage
2.0 EnduroSport shocks with Jeep JL specific valving
Tubular steel link arms with dual durometer bushings for noise free performance, maximum articulation, and minimal bind
100% bolt-on system makes for an easy install
Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Dynatrac 2018-2023 Jeep Wrangler JL, 3" Suspension Lift System 2, JL30-1X5310-L2
Dynatrac 2018-2023 Jeep Wrangler JL, 3" Suspension Lift System 2
