Cognito MotorsportsSKU: BSD-COG-535-P1305
22-25 Toyota Tundra Suspension Shock Absorber Kit - Cognito Motorsports Truck - 535-P1305
$2,390.52
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description

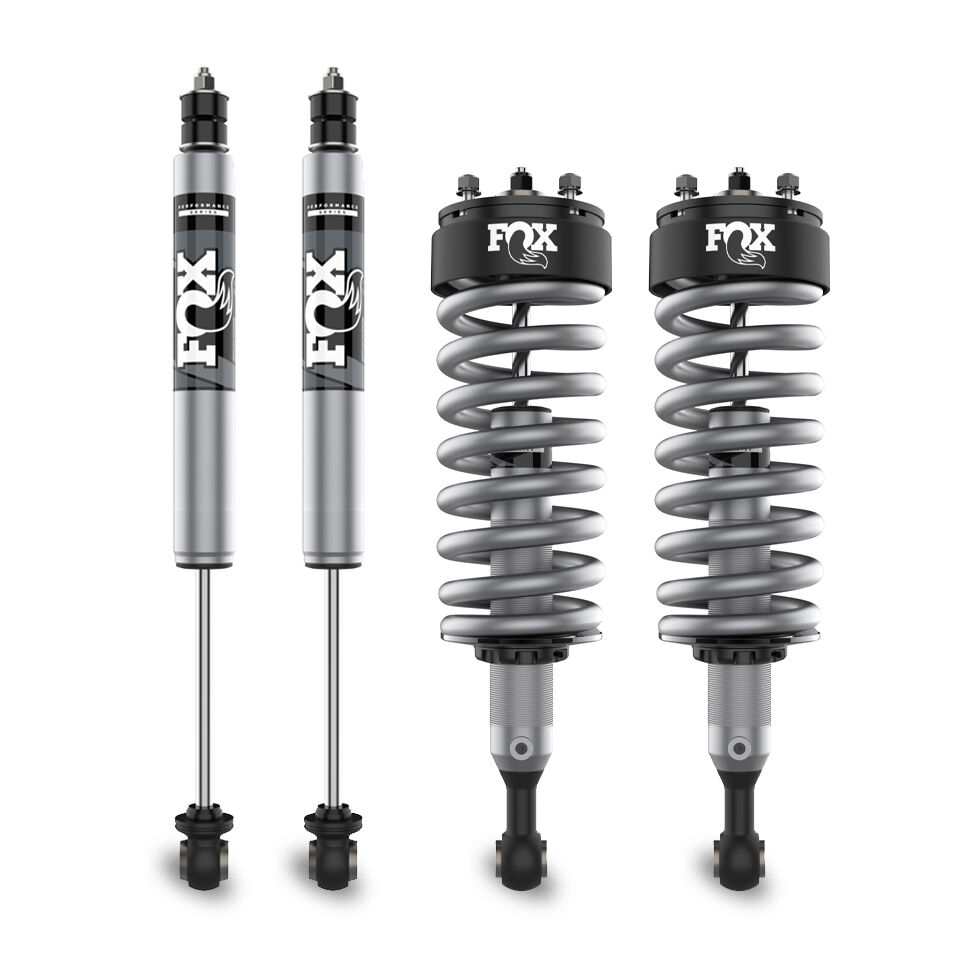

Fox PS 2.0 Shock Kit
Fox PS 2.0 Shock Kit For 22-24 Toyota Tundra, 0-2" Front Lift And 0-1" Rear Lift
Fox PS 2.0 Shock Kit For 2020-2024 Toyota Tundra, 0-2" Front Lift And 0-1" Rear Lift
A lot of bang for the buck comes with these Fox Performance Series 2.0 shocks. These have the most on-road comfort of any of the shocks I have tested (King 2.5", Elka 2.0", OEM Bilstein). If you are looking for a little extra ride height, and a huge improvement over stock in on-road comfort, this Fox shock kit would be hard to beat for this price point.
Fox claims 2" of increased front ride height out of the box, but what i experienced on my 2023 4wd Platinum (non hybrid) was 1-5/8" front lift, with 3-1/8" of droop travel. I preloaded the coil overs an extra 1/8" to get the ride height to 1-7/8" lift with 2-7/8" of droop travel, I do not recommend going up any higher than that as the lack of droop travel is definately noticeable in certain situations.
Using this shock kit on a rear coil sprung truck will level out the rake nicely, while a rear air ride truck may need a little adjustment on the ride height sensors to bring the rear up to provide a level stance.
2.0" impact-extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body
Application-specific springs
5/8" hard chrome-plated steel shafts
Vehicle-specific valving to maximize performance
Redundant sealing pack system: main seal, wiper seal, scraper seal.
Benefits:
Retain precise handling and consistent damping
Maintain optimal ride height with preload adjustment
Vehicle-specific springs enhance articulation and increase stability
On-road comfort and performance-minded valving for a connected ride with less vehicle sway
Two-stage shim stack increases off-road bottom-out resistance while mitigating road vibration and harshness
Aluminum shock bodies efficiently dissipate heat and resist corrosion vs. stock painted steel shocks.
Fox PS 2.0 Shock Kit For 2020-2024 Toyota Tundra, 0-2" Front Lift And 0-1" Rear Lift, 535-P13052.0" impact-extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body; Application-specific springs; 5/8" hard chrome-plated steel shafts; Vehicle-specific valving to maximize performance; Redundant sealing pack system: main seal, wiper seal, scraper seal.; Benefits:; Retain precise handling and consistent damping; Maintain optimal ride height with preload adjustment; Vehicle-specific springs enhance articulation and increase stability; On-road comfort and performance-minded valving for a connected ride with less vehicle sway; Two-stage shim stack increases off-road bottom-out resistance while mitigating road vibration and harshness; Aluminum shock bodies efficiently dissipate heat and resist corrosion vs. stock painted steel shocks.
