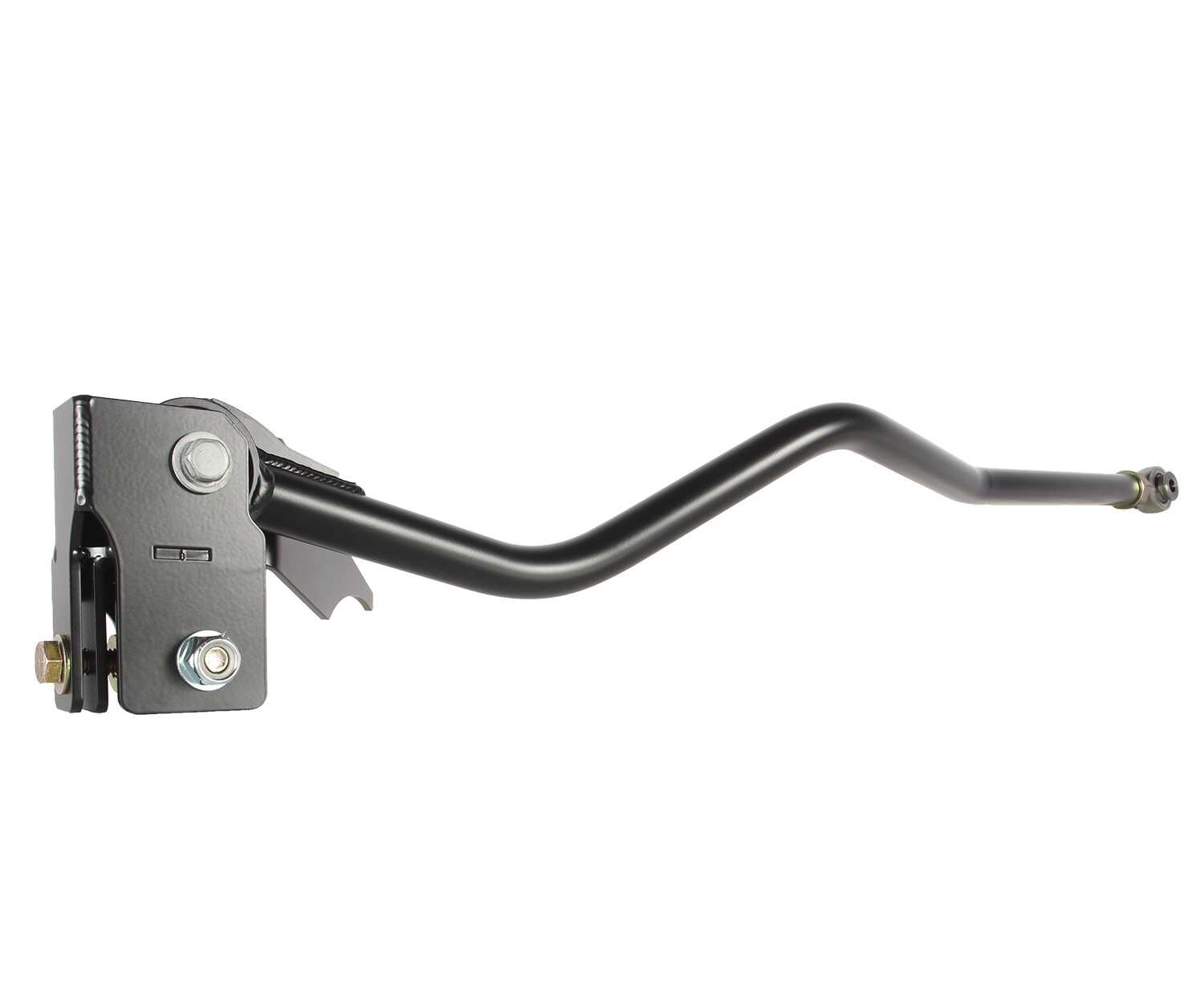

07-17 Jeep Wrangler (4WD) Suspension Track Bar - Rear - Carli Suspension - CS-JATB-07-R

adjustable track bar
CS-JATB-07-R
CARLI 14-23 RAM 2500 4X4 DIESEL CARLI SPEC 2.0" RR FRONT and REAR SHOCK PKG 3.25" LIFT RES MOUNTS and BRAKE LINE TABS
Carli Rear Adjustable Track Bar
Carli Dominator 3.0 Shock Set, 6” Lift, 2003-12 Ram 2500/3500
The Carli Adjustable Track bar solves all of the issues commonly associated with weak OEM track bars and is a perfect fit for any Jeep owner with a 2.5"-3" lift lookig for a strong replacement.
Carli suspension systems use an adjustable track bar up front and the combination of an adjustable track bar and riser in the rear to correct geometry, center the axles after lifting the JK, and ensure the axle have as little “Yaw,” lateral axle movement causing a wagging feeling during suspension cycling, as possible. Carli adjustable track bars are constructed from ¼-inch wall DOM tubing and use 7/8-inch heat-treated chromoly FK Bearings Heim joints locked in by Carli’s proprietary Jammit nut that provides 100% more surface area than a standard jam-nut. The fixed end of Carli adjustable track bars features our proprietary CUB joint which uses a proven FK Bearings 7/8-inch uniball at its center. Custom molded bushings are pressed on to encapsulate the uniball then the assembly is pressed into the huge, gusseted housing of the track bar with a stainless safety washer and retained with a snap ring.
Fits 2007-2017 Jeep JKU 4x4 with 2.5"-3" of lift.
1/4" wall construction and 7/8" FK heim provides rigid strength.
Features Carli's signature CUB joint on the frams wide mounting position to minimize vibration and maximize lifespan.
Fully rebuildable.
Works ONLY with Carli Rear Track Bar Riser (CS-JATB-07-R-RISER)
07-17 JEEP JKU 4X4 REAR ADJUSTABLE TRACK BAR - 3.0" LIFT
Carli Rear Adjustable Track Bar for 2007-17 Jeep JKU, CS-JATB-07-R
Carli Rear Adjustable Track Bar for 2007-17 Jeep JKU
Fits 2007-2017 Jeep JKU 4x4 with 2.5"-3" of lift.
1/4" wall construction and 7/8" FK heim provides rigid strength.
Features Carli's signature CUB joint on the frams wide mounting position to minimize vibration and maximize lifespan.
Fully rebuildable.
Works ONLY with Carli Rear Track Bar Riser (CS-JATB-07-R-RISER)
California Proposition 65: WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

Detailed Fitment Results
Year Make Model Drive Type 2007 Jeep Wrangler 4WD 2008 Jeep Wrangler 4WD 2009 Jeep Wrangler 4WD 2010 Jeep Wrangler 4WD 2011 Jeep Wrangler 4WD 2012 Jeep Wrangler 4WD 2013 Jeep Wrangler 4WD 2014 Jeep Wrangler 4WD 2015 Jeep Wrangler 4WD 2016 Jeep Wrangler 4WD 2017 Jeep Wrangler 4WD
